ESP32-CAM WiFi Bluetooth Development Board with OV2640 Camera Module and 8DBi Antenna + IPEX-To-RP-SMA Pigtail Cable

Certification:NONE
Origin:CN(Origin)
Model Number:
ROM Capacity:None
Demo Board Type:Raspberry pi 2 b

ESP32-CAM WiFi Bluetooth Development Board with OV2640 Camera Module and 8DBi Antenna + IPEX-To-RP-SMA Pigtail Cable
With low power dual core 32-bit CPU, can be used as application processor
Main frequency up to 240 MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Support UART / SPI / I2C / PWM / ADC / DAC and other interfaces
Home smart device image transfer
Support picture WiFi upload.
Support TF card.
Support multiple sleep modes.
Integrated Lwip and RTOS.
Support STA / AP / STA + AP working mode.
Supports Smart Config / AirKiss network configuration.
Supports secondary development.
Supports OV2640 and OV7670 cameras, built-in flash.
Frequency range: 2400 ~ 2500/5100 ~ 5800 MHz.
VSWR less than equal 2.0.
Gain: 8 DBI
Input impedance: 50 ohm.
Maximum input power: 50 W.
Input connector: SMA plug.
Cable length: 158 mm.
Operating temperature: -40 Celsius to +85 Celsius.
Humidity: 20 ~ 80%.
Wireless surveillance
Smart agriculture
Wireless QR detection.
Wireless image transmission
Colour:black
Material:plastic

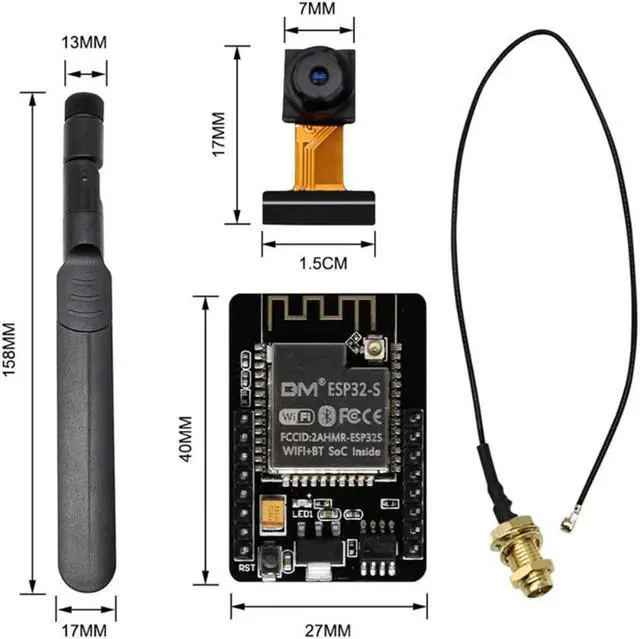

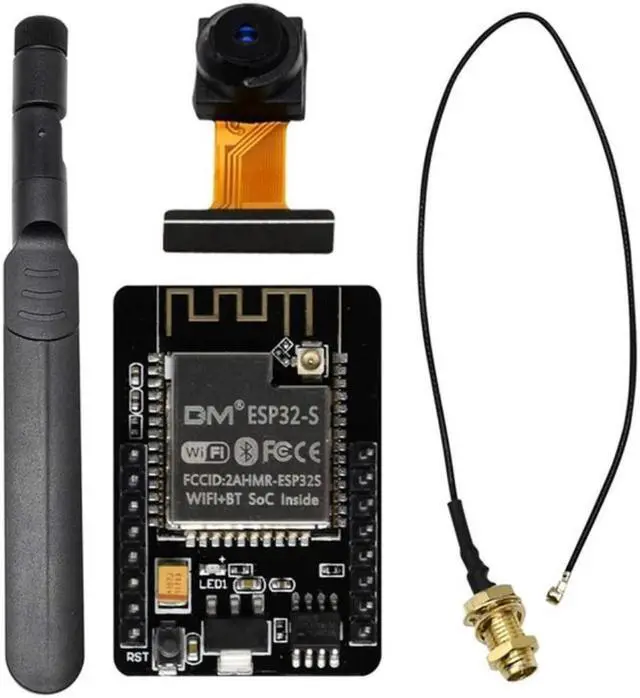

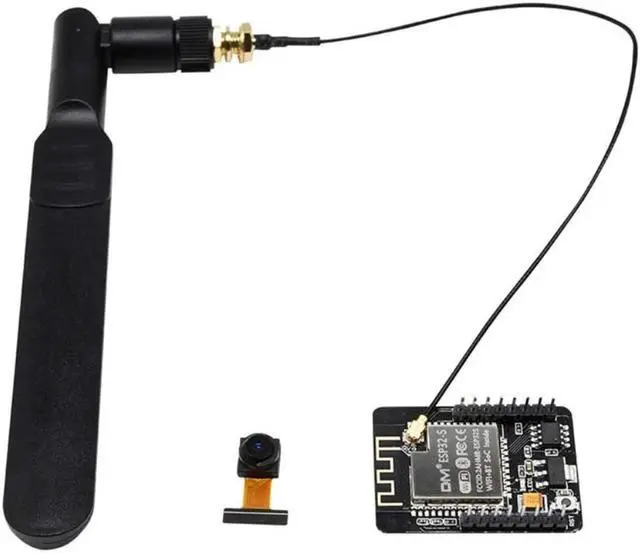

Package Contents:
1 x Mini WiFi + Bluetooth module
1 x OV2640 camera.
1 x 8dBi dual band antenna.
1 x 20 cm IPEX to RP-SMA pigtail cable.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
