Network Cable Tracker,Network Cable Tester for CAT5E/CAT6/CAT6A,PoE Tester with NCV,NF-8209 Network Cable Length Tester

Certification:NONE
Origin:CN(Origin)

Network Cable Tracker,Network Cable Tester for CAT5E/CAT6/CAT6A,PoE Tester with NCV,NF-8209 Network Cable Length Tester
Three scan modes AC filter mode/ Analog mode/ PoE mode. PoE testing Test the information of standard PoE device, such as POE voltage, power supply polarity, power supply mode and also the type of PSE(af or at standard).
Hub blink Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch. Length measurement Cable length testing accuracy can be up to 98% and 200 m.
Cable continuity testing & NCV Test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).

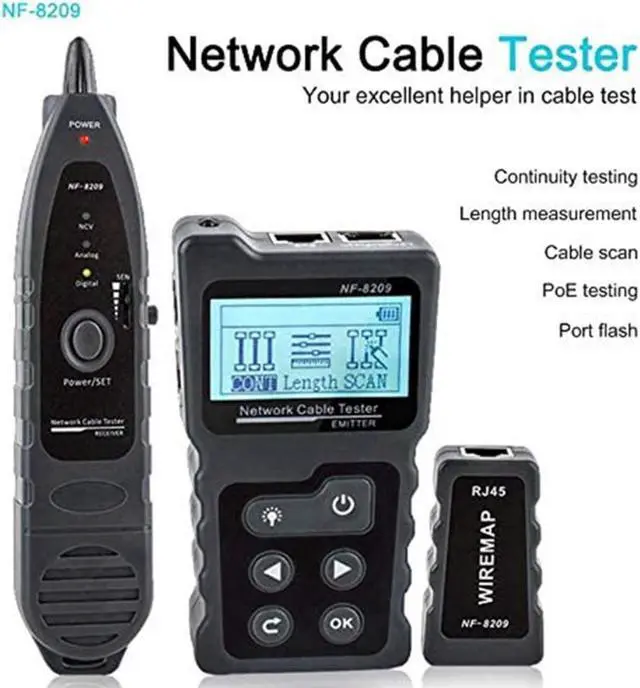

NF-8209 Network Cable Tester has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it's equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function.

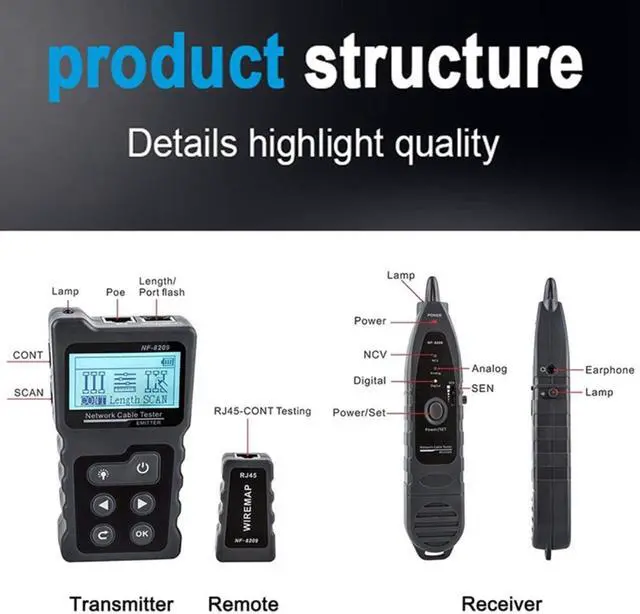

NF-8209 Network Cable Tractor Main Function. POE TESTING . Port Flash . TDR techonology Lenth Measurement
NVC Induction Pen
POE Testing
identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard). Test CAT5e, CAT6, CAT6a (STP & UTP)
Port Flash
Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/switch.
TDR techonology Lenth Measurement
Use TDR techonology for cable length test. Cable length testing accuracy can be up to 98%. Please note testing range must be 2.5m-200m, otherwise it would display 0 meter.
NVC Induction Pen
NVC induction pen design, accurate electricity measurement, safter to use.
NF-8209 POE Tester Highlights
Continuity Testing
Three Cable Scan Mode
LED Lighting
Possible results on the line
Continuity Testing
CONT-Test open, short, cross, etc for STP, UTP cable. Detect AC voltage presence (50V-1000V)
Three CableScan Mode
Three scan modes selectable: Digital mode/ Analog mode/ PoE mode
LED Lighting
Emitter and receiver all have lighting function. It can solve the trouble of dark work.
Possible results on the line
If the LCD screen display "Cable Open", there are several reasons for this.
Color: as shown
material: plastic
Package Contents:
1 x Transmitter
1 x Receiver
1 x Remote Adapter
1 x Earphone
1 Set x Cable Adapters
1 x Carry Bag
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
