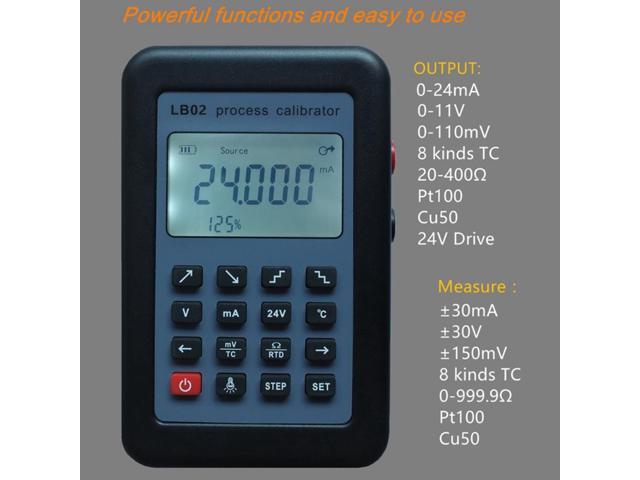

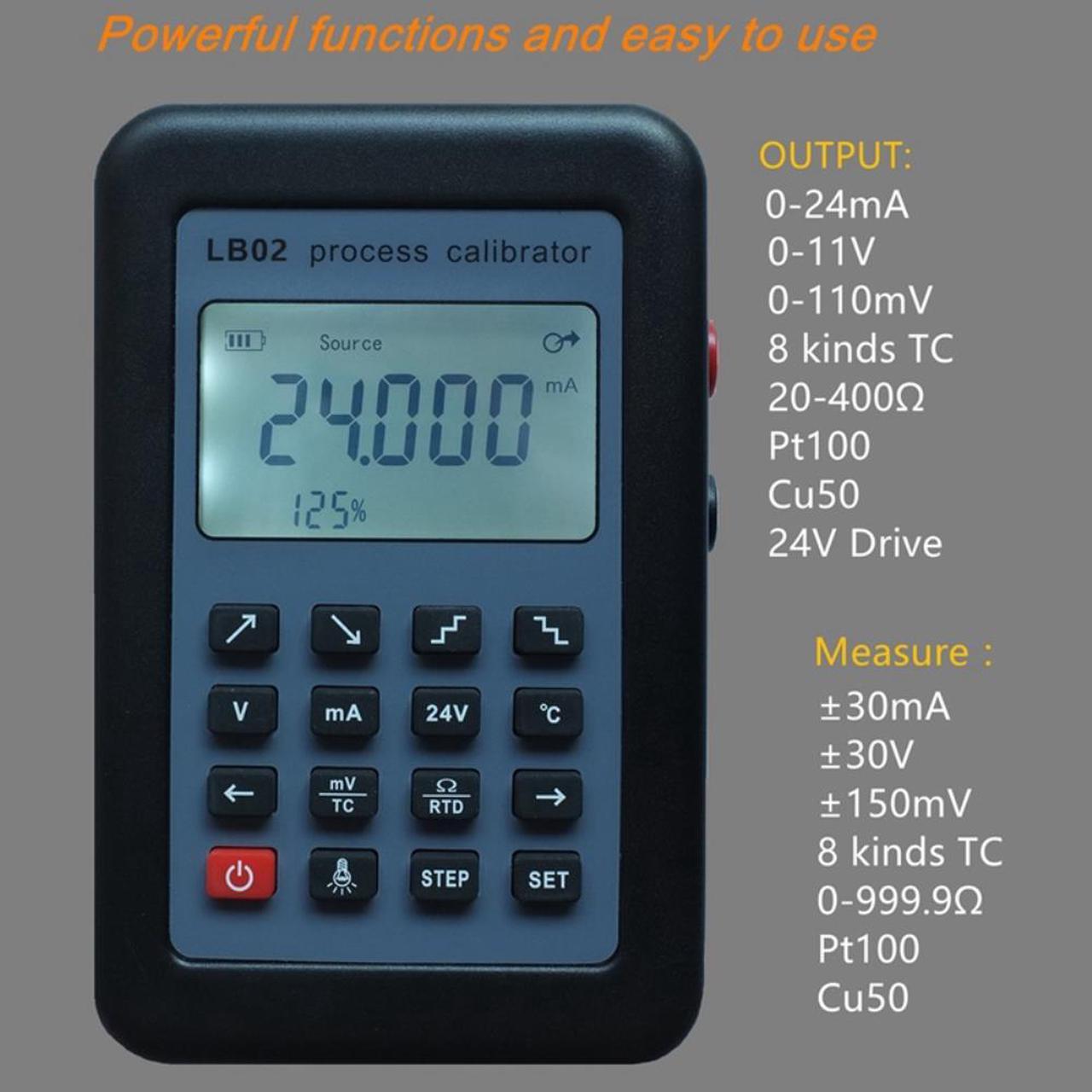

LB02 Calibrator Tester Resistance Current Voltmeter Signal Generator Source Process Calibrator 4-20mA/0-10V/mV LCD Display
- LB02 Calibrator Tester Resistance Current Voltmeter Signal Generator Source Process Calibrator 4-20mA/0-10V/mV LCD Display
Overview
Specs
Reviews
DIY Supplies:ELECTRICAL
Display Size:2.9 Inches & Under
Model Number:LB02
100% and
Features:
Increase disposable fast blow fuse, to avoid false instrument damage caused by voltage 220V plug.
All functions all use internal electronic switch, input and output has a corresponding button.
Two connector terminals can be used regardless of input and output. It is easy to operate.
In addition to having a conventional signal input and output functions,resistance, PT100.Cu50 RTD, thermocouple eight kinds of signals can be input and output, measure negative temperature.
The sensitivity of thermal resistance and resistance to external excitation output current is reduced. Increase the output and the measurement accuracy. For both constant and non-constant resistance measurement method, expanding the usage of the instrument.
V, mV, mA, input and output has a corresponding button, directly call without advance menu, no combination of keys.
Specification:
Model: LB02
Current Output: 0-24 mA
Voltage(V) Output:0-11 V
Voltage(mV) Output: 0-110 mV
Resistance Output:20-4000
Current Measurement Range: ±30 mA
Voltage(V) Measurement Range: ±30 V
Voltage(mV) Measurement Range: ±150 mV
Resistance Measurement Range: 0-999.9
Size: app.7.6x12cm/2.99x4.72in(WxH)
Note:
Please allow 0-1cm error due to manual measurement, please make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

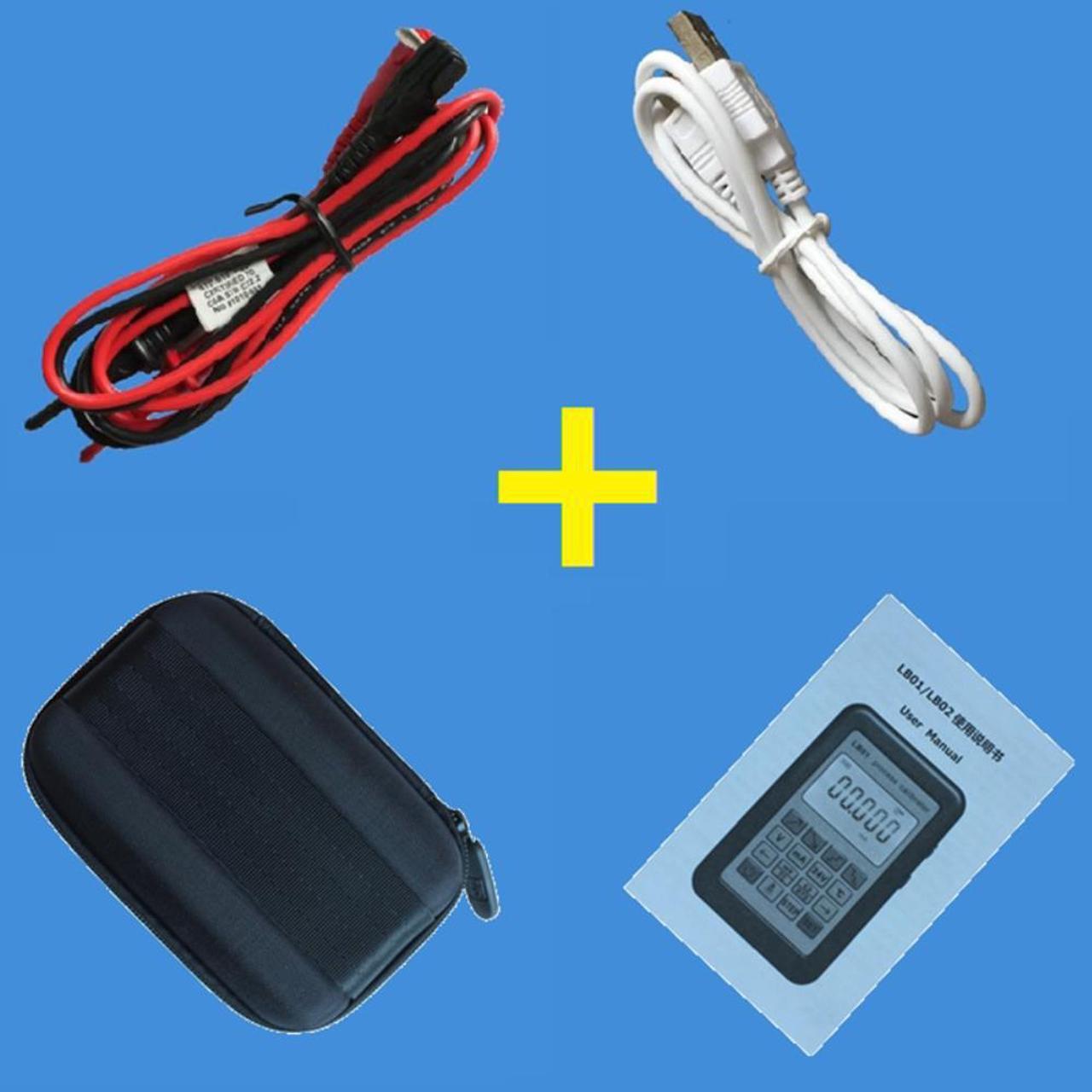

Package includes:
1 x LB02 Calibrator
1Pair x Pair Test Pen
1 x USB line
1 x Carrying Box
1x User Manual
Display Size:2.9 Inches & Under
Model Number:LB02
100% and
Features:
Increase disposable fast blow fuse, to avoid false instrument damage caused by voltage 220V plug.
All functions all use internal electronic switch, input and output has a corresponding button.
Two connector terminals can be used regardless of input and output. It is easy to operate.
In addition to having a conventional signal input and output functions,resistance, PT100.Cu50 RTD, thermocouple eight kinds of signals can be input and output, measure negative temperature.
The sensitivity of thermal resistance and resistance to external excitation output current is reduced. Increase the output and the measurement accuracy. For both constant and non-constant resistance measurement method, expanding the usage of the instrument.
V, mV, mA, input and output has a corresponding button, directly call without advance menu, no combination of keys.
Specification:
Model: LB02
Current Output: 0-24 mA
Voltage(V) Output:0-11 V
Voltage(mV) Output: 0-110 mV
Resistance Output:20-4000
Current Measurement Range: ±30 mA
Voltage(V) Measurement Range: ±30 V
Voltage(mV) Measurement Range: ±150 mV
Resistance Measurement Range: 0-999.9
Size: app.7.6x12cm/2.99x4.72in(WxH)
Note:
Please allow 0-1cm error due to manual measurement, please make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x LB02 Calibrator
1Pair x Pair Test Pen
1 x USB line
1 x Carrying Box
1x User Manual
