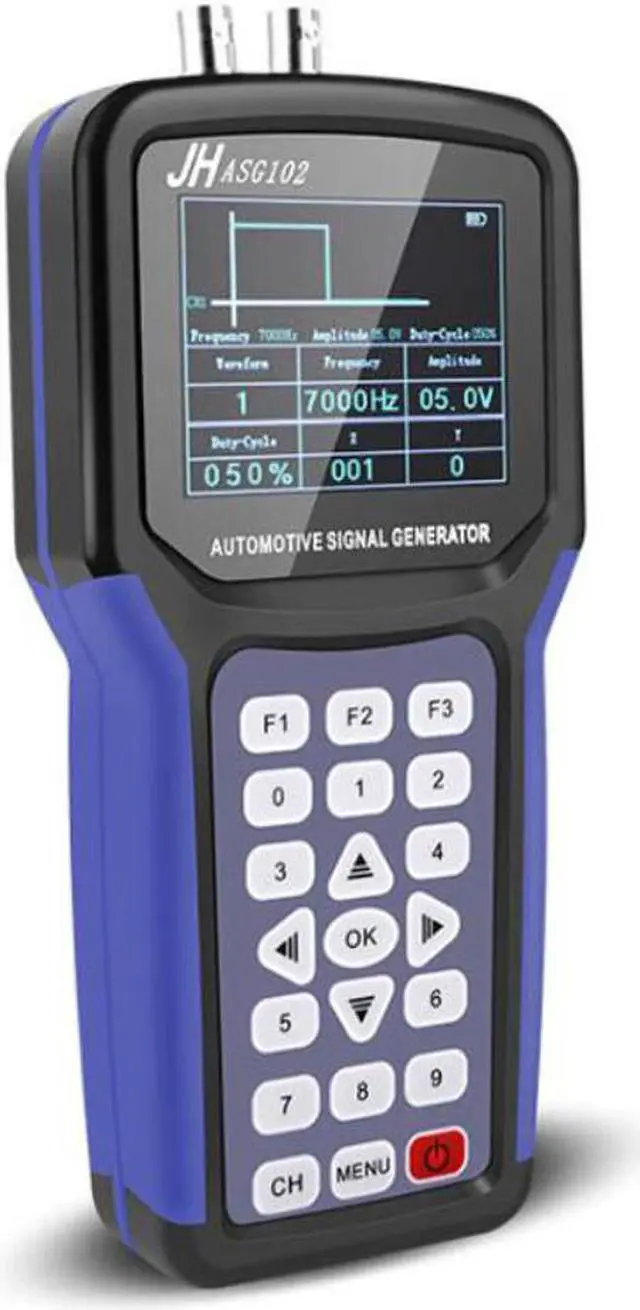

ASG102 Digital Handheld Signal Generators 2 Channels JHASG102 Automotive Signal Generator Kit With CAN Data Function

Origin:CN(Origin)
DIY Supplies:ELECTRICAL
Certification:NONE
Display Size:3.0 - 4.9 Inches
Model Number:ASG102

ASG102 Digital Handheld Signal Generators 2 Channels JHASG102 Automotive Signal Generator Kit With CAN Data Function
Features:
1.Supporting USB Storage Device: Connecting with PC, transferring test data to PC.
2.CAN line tester is mainly used to test whether the CAN bus of various types of vehicles communicates normally. The test rates are 10K, 20K, 33.3K, 50K, 62.5K, 83.3K, 125K, 250K, 500K and 1M.
3.Ultra-low power consumption and ultra-long standby: 5 hours continuous work. A single can work for 5 hours. There are two batteries in the storage, one power supply/one standby , which can be recharged and recycled after use.
4.3.2-inch HD display: 320*240 resolution, large LCD display, clear display interface logic. The panel operation is clear and convenient for operators to operate quickly.
5.Signal characteristics can be adjusted in real time: the waveform, amplitude, frequency and number of missing teeth can be adjusted at will in the signal output department, which greatly facilitates the fault determination in the process of vehicle maintenance.
Descriptions:
1.It is an professional high precision signal generator for car.
Specifications:
Model: ASG102
Material: ABS
Color: Black
Socket Type: US,EU (Optional)
Channel: Dual Channel
Signal generator:
Waveform: square wave, sine wave, square wave X+Y, sine wave X+Y, DC voltage
Frequency: 1HZ-5KHZ
Range: 0-20V
Duty ratio: 1-100%
X: 1-199
Y: 1-9
CAN reception:
Receiving data: Open or stop, open and receive, receive and parse in real time, turn the page to view the latest 50 frames of data (temporary)
Baud rate: 10K, 20K, 33.3K, 50K, 62.5K, 83.3K125K, 250K, 500K, 1M
Special Wave Rate Selection: Manual or Automatic Scanning
Language: English and Chinese
Brightness: 1-5, the greater the value, the brighter
Voice: On/off
Package information:
Package size: 300x200x100mm/11.79x7.86x3.93in
Package weight: 900g/31.75oz
General Box Package

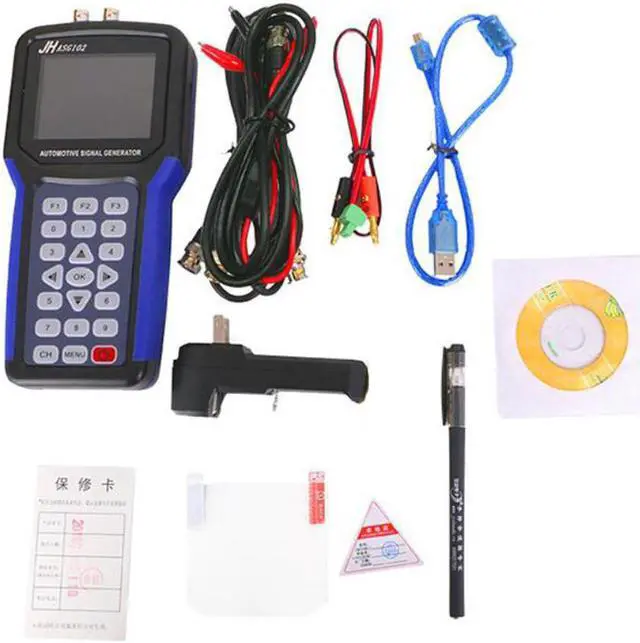

Package Included:
1 x Automotive Signal Generator
1 x CD
1 x Charger
1 x Protect Film
1 x Pen
2 x Oscilloscope probe
2 x Test lead
1 x USB cable
