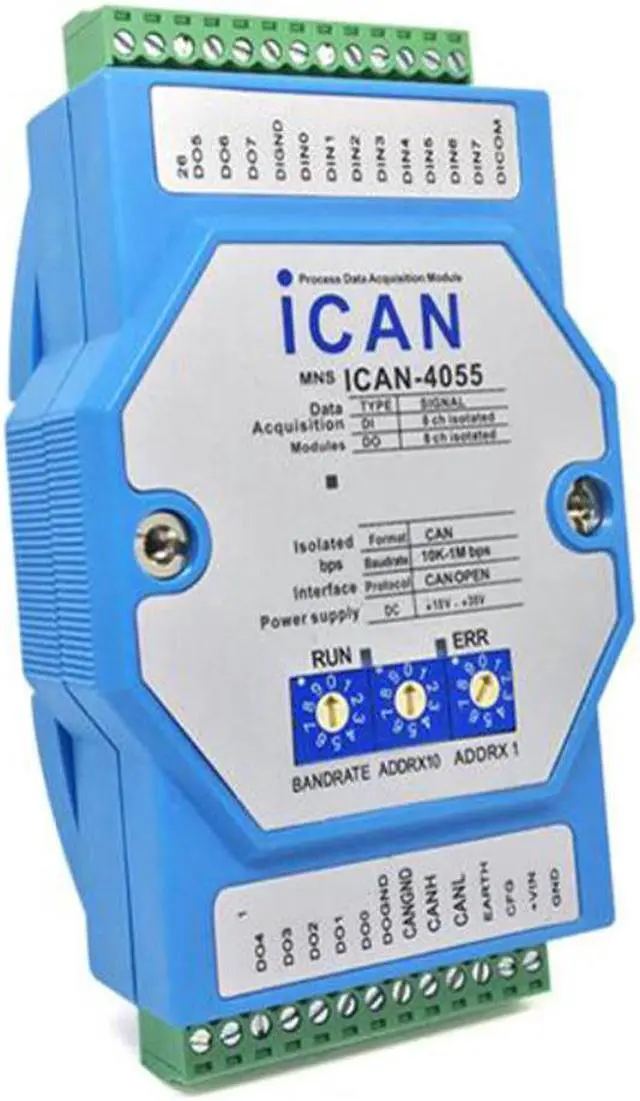

ICAN-4055 8DI8DO multi-channel digital isolation input and output card CANOPEN protocol data acquisition module

DIY Supplies:ELECTRICAL
Certification:NONE
Origin:CN(Origin)

Overview:
1. ICAN is a data acquisition module based on CAN isolation communication interface. The ICAN series modules integrate analog and digital input and output, data processing and communication functions in a single device. Using Canopen protocol.
2. ICAN-4055 is a digital input and output module with isolation. The module has 8 isolated digital inputs and 8 isolated digital outputs. Digital input can support switch contact signal or level signal, digital output adopts open-collector output, and the upper limit load can reach 50V, 100mA. The module is suitable for collecting digital signals from industrial scenes and controlling low-power relays.
3. The use of an isolated CAN communication interface can avoid the impact of industrial field signals on the microcontroller communication interface, and has ESD, overvoltage, and overcurrent protection.
Digital input
Number of input channels: 8-channel isolation
Input type: switch contact signal or level signal
Input range:
High level (digital 1): +4.0 V~+30V
Low level (digital 0): +1V
Digital output
Number of output channels: 8 channels
Output type: open-drain output
Upper limit load voltage: 50V
Upper limit load current: 50mA
System parameters
CPU: 32-bit RISC ARM
Operating system: real-time operating system
Power supply voltage: +10~+30VDC, power supply reverse connection protection
Operating temperature range: -20°C ~ +85°C

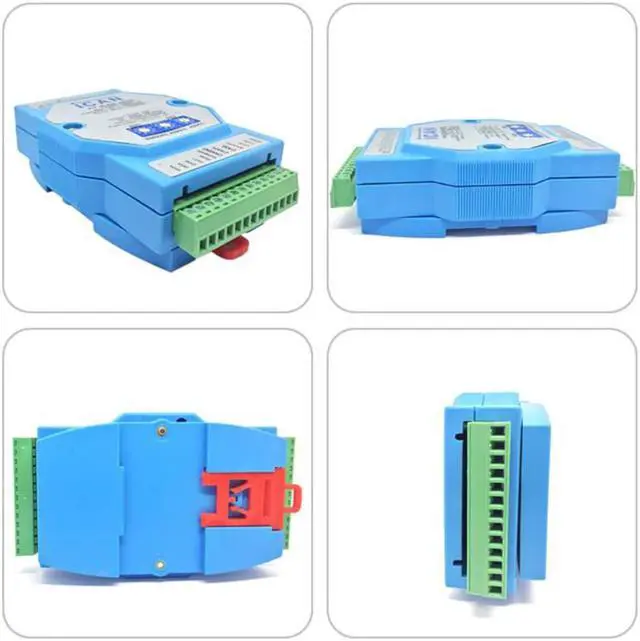

Industrial grade plastic housing, standard DIN rail installation
Communication interface: isolation 2500 VDC, ESD, overvoltage, overcurrent protection
