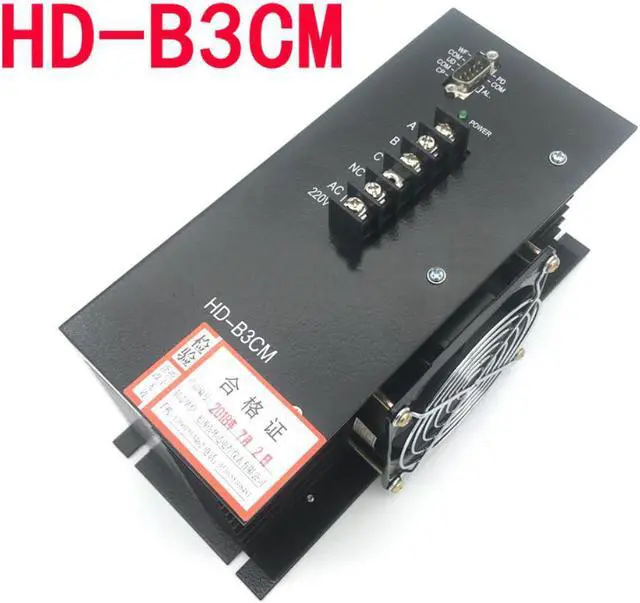

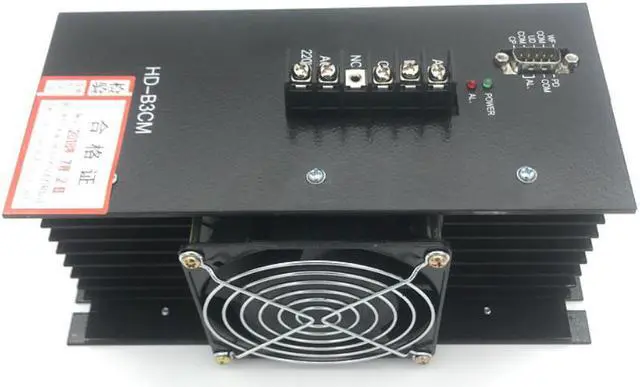

HD-B3CM AC220V 3-phase hybrid stepping motor driver making machine drive 13A high current Bag Making Machine Stepping Driver

Motor Type:Stepper Motor
Model Number:HD-B3CM

HD-B3CM
driver current
13A
HD-B3CM
driver adopts imported
MTSUBISHI
module to realize high-frequency chopping, constant current drive, and anti-interference; control signal and internal signal are photoelectrically isolated, with a series of self-protection functions such as overcurrent, overvoltage, and overheating, and operation Stable and reliable.

AC220V
power supply;

Each phase of the drive current according to the configuration of the motor.

Adopt the current control method of AC servo motor, accurate current output, with full-frequency sine wave control output, so that the operation performance index of the stepping motor is close to that of the AC servo motor.

The performance of the drive is less dependent on the motor, and motors with different parameters can achieve excellent performance.

With multiple subdivision modes, special subdivision requirements can be customized.

With offline (

) control signal (
WF
input).
2. Adapted motor:
stepper motor
below
13
A.
3. Suitable for precision measurement and precision machining and other sports fields, such as: CNC machine tools, packaging machinery, printing machines, engraving machines and other equipment.
Electrical parameters and connection:
Connection:
WF
:
Step angle subdivision control signal
-
, when the signal is low, the motor is
12800
steps
/
revolution.
COM+
:
Direction level
+
UD:
Direction level
-
COM+
:
Step pulse signal
+
CP:
Step pulse signal
-
PD
: Reset signal.
After the driver is powered on, the stepper motor is in a locked state (
CP
pulse or timing is
not applied
) or running state (
CP
pulse is
applied
), but the user wants to manually adjust the motor but does not want to turn off the driver power, what should I do?
This signal can be used at this time.
When this signal is active (low level is active), the motor is in a torque-state; when this signal is high level or not connected, the offline state is cancelled.
This signal can be used by the user. If this function is not needed, just leave this terminal unconnected.
COM+
:
Complete offline signal
with
PD
.
AL:
Alarm output signal
COM+
,
COM+
,
COM+
, which are connected inside the drive.
All interfaces are
5v
Interface,
when the
output voltage of the pulse port of the host computer is greater than
5V
,
a resistance of
1K & mdash; 4.7K
should be connected to ensure that the input current is not large and
15-30MA.
Improper selection will increase the noise of the motor, and the motor will fall out of step.
WF
,
UD
,
CP
,
PD
, all active low
1.
Step angle setting
Product Features:
Internal input signal of the optocoupler current limiting resistor
1K
, signal common to
12V
direct access,
24V
each signal is required in series
1K
resistors, the system requires no less than the pull-in current
. 8
mA.
An alarm output is open collector and emitter ,
NPN
type.
VCEmax=15V
IECmax=100Ma
Wiring diagram:
