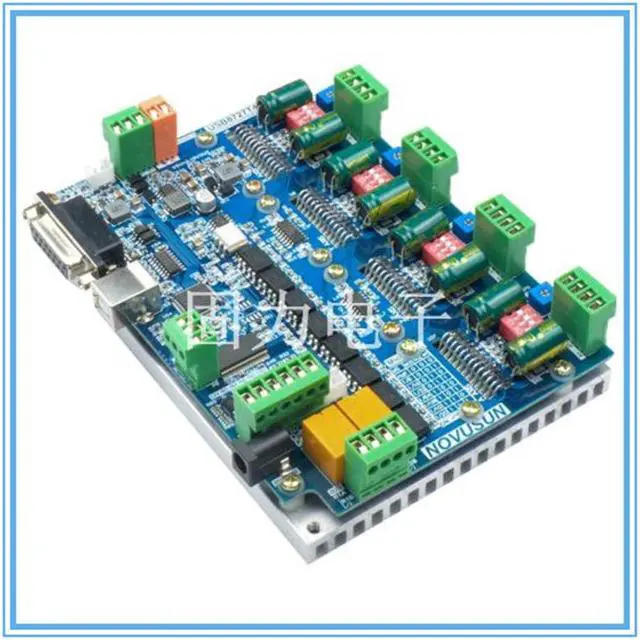

version USB MACH3 4-axis drive integrated board 200K stepper motor control pulse output + MPG manual pulse generator

Features
1, 4-axis stepper motor drive output ..
2. With the 5th axis control signal output.
3. With 6-channel programmable input interface, which can be configured as limit emergency stop and other functions.
4. With 1 way spindle start / stop IO output.
5. With 1-way spindle 0-10V speed regulation output.
6. With 2 programmable relay outputs.
7, support standard MPG, serial digital display MPG, digital display manual control.
8.Support MACH3 software
9, USB interface, support MACH3 software.
10.The control part is electrically isolated from the drive part
11.High-speed optocoupler isolation
12. Up to 200K stepper motor control pulse output, suitable for most machine tool systems.
13, 4 step motor drive is adjustable for 0-4A current, up to 4A.
14, 4 way stepper motor drive for up to 128 subdivision control.
Application area
Used in the following areas:
Used for processing various patterns with various patterns such as: embossing plate, sole mold, button mold, zipper mold, pattern text stamping and bronzing mold, instrument mold, glass mold, etc.
Used in the advertising industry such as: brand, signage, building models, badges, badges, nameplates, display boards, monograms, doorplates, signs, craft decoration, furniture decoration, etc.
For portrait, landscape, calligraphy and lettering, seals and other artistic plane carving, Yinwen, Yangwen outline, relief production and so on.
With CNC controller, it is suitable for various small and medium-sized automation equipment and instruments.
