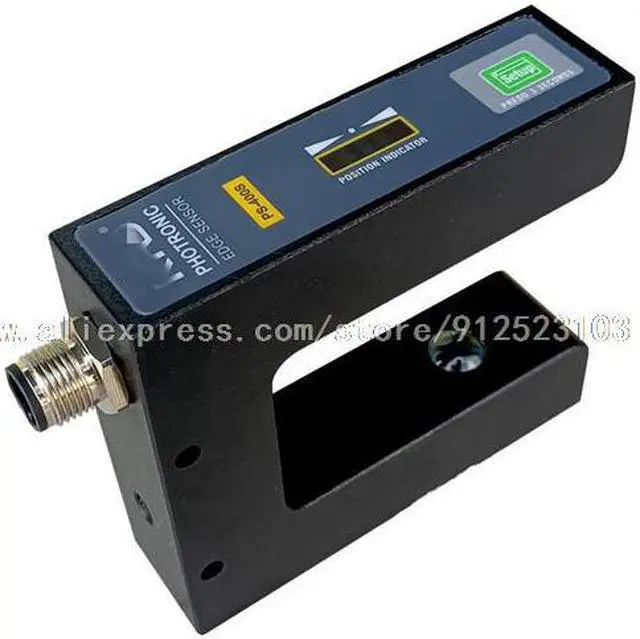

Photoelectric Web guide sensor PS-400S Analog quantity high sensitivity breathable material suitable for non-woven fabric

Type:Other
Origin:CN(Origin)
Model Number:PS-400S
is_customized:No
Usage:Commercial Manufacture

Photoelectric Web guide sensor PS-400S
Tracking method: side tracking
Power input: DC1224v
Output signal: dual analog 0-5V dual NPN switch
Detection range: 8mm(±4mm}
Adjustable accuracy: ±0.02mm
Detection method: photoelectric beam
Carrier frequency/response frequency: 10OKHz'1KHz
Protection level: IP54
Weight: 250g
Environment: 10B0c. RH below 90%
Shell material: aluminum alloy
Material calibration: required
1. Support one analog quantity/two switch output
2. Suitable for all impermeable materials (such as transparent film,
Paper etc.)
3. No need to manually adjust the calibration
4.20OK ultrasonic beam
5.0.05m/s reaction time
6. The detection range is 6mm, and the detection accuracy is 0.05mm
7. With offset display
Calibration steps
1. Long press the "SET" button for more than 3 seconds, all the indicators flash.
2. Please remove the material, short press the "SET" button once, after the indicator light scrolls and flashes-the middle blue light flashes.
3. Use the material to completely cover the U-shaped light source of the sensor, then short press the "SET" button, wait for 3 seconds to automatically calibrate the material.
4. Check the calibration, remove the material, there is no material obstruction, one side indicator light is all on, the other side indicator light is all on, the calibration is successful.
In order to meet different accuracy requirements, the switch quantity does not have three state options
After the material calibration is completed, the yellow and red lights will flash
1. Long press the "SET" button for 7 seconds until the middle blue light flashes (the state is 0.5mm at this time).
2. Short press the "SET" button once, and the two yellow lights will flash (the status is 1.5mm at this time).
3. Short press the "SET" button once, and the two red lights will flash (the status is 3mm at this time).
4. After selecting one of the above three states, press and hold SET for 6 seconds to save and exit, and you are done.
