Raspberry Pi USB hub UART TO USB

Demo Board Type:ARM
Certification:CE
Origin:CN(Origin)

Features
4 USB Ports, compatible with USB2.0/1.1
Onboard USB to UART, convenient for Raspberry Pi serial debugging
Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

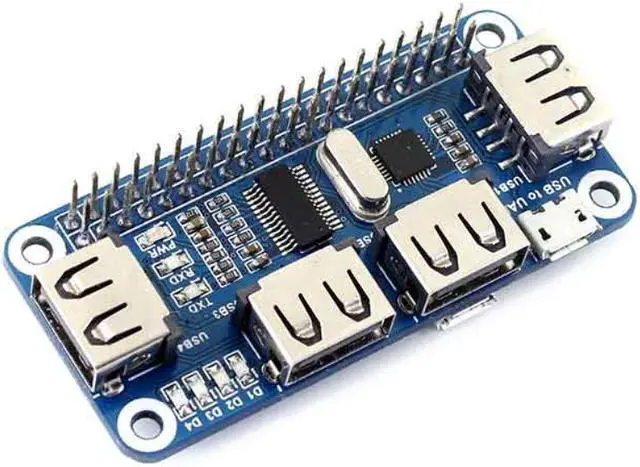

What's on Board
Raspberry Pi GPIO interface: for connecting Raspberry Pi
USB to UART: for controlling the Raspberry Pi via serial terminal

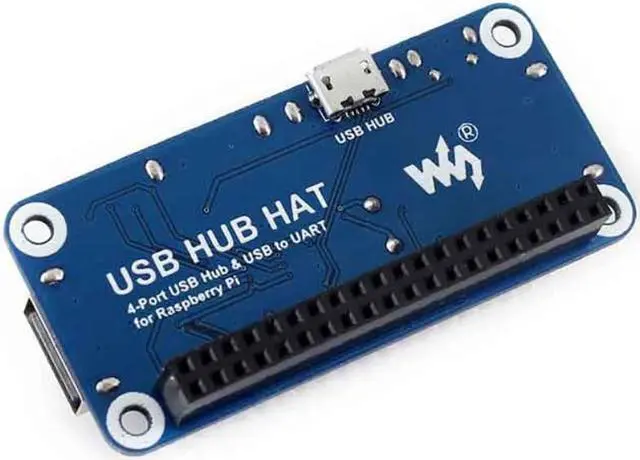

USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port

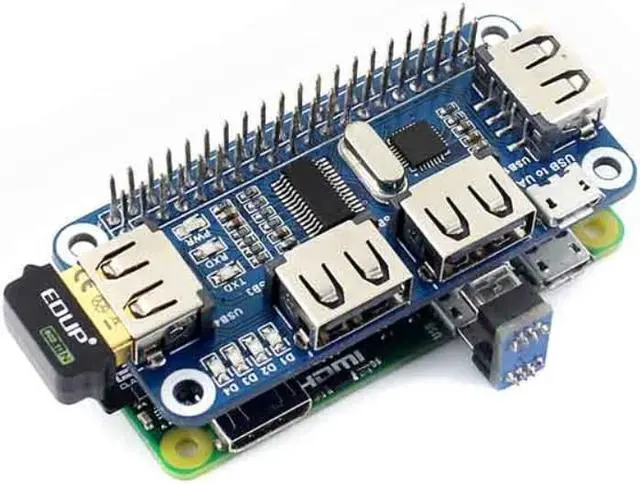

Raspberry Pi Zero / Zero W: connected via
Micro USB connector
Raspberry Pi B+ / 2B / 3B: connected via
Micro USB cable
USB extended ports: USB1~USB4
USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
Power indicator
USB to UART indicator
FE1.1S: USB HUB chip
12MHz crystal
CP2102: USB to UART converter
Do not include Raspberry Pi and WIFI and SD card and so on


www.waveshare.net/wiki/USB_HUB_HAT

Package Contains
USB HUB HAT ×1
Micro USB connector ×1
USB type A to micro ×1
RPi screws pack (2pcs) x 1
