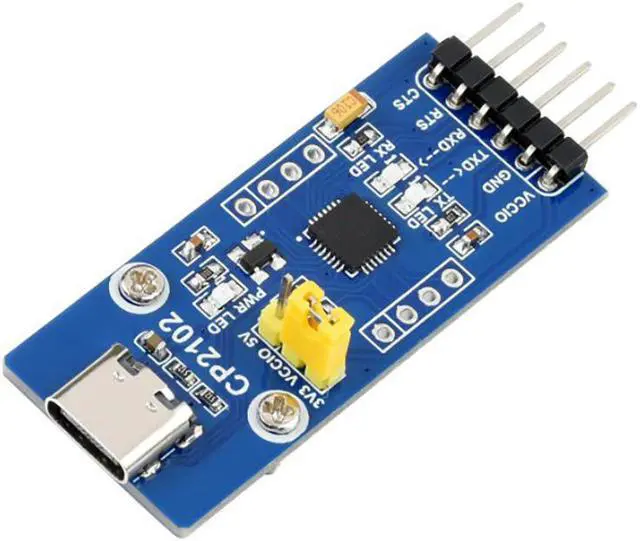

CP2102 USB UART Board (Type C),USB To UART (TTL) Communication Module,USB-C Connector

Demo Board Type:ARM
Certification:CE
Origin:CN(Origin)

CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.
DESCRIPTION
CP2102 USB To UART (TTL) Communication Module, USB-C Connector
CP2102
USB-C To UART Module
Adopts CP2102, Compatible With 3.3V Logic Level
Features At A Glance
Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11...
Voltage output support: 5V or 3.3V
Integrated USB protection device: SP0503
3x LED indicators: TXD LED, RXD LED, POWER LED
Pins accessible on pinheaders: TXD, RXD, RTS, CTS

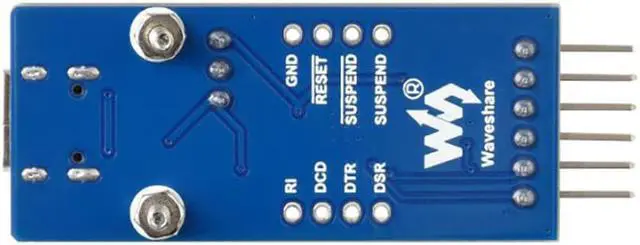

Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
CP2102 Solution
Single-Chip USB to UART Data Transfer
No external resistors required, no external crystal required
On-chip power-on reset circuit and voltage regulator
Integrated 1024-Byte EEPROM
USB Function Controller
USB Specification 2.0 compliant; full-speed (12 Mbps)
USB suspend state, supported via SUSPEND pins
UART
All handshaking and modem interface signals
Data formats:
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity: odd, even, no parity
Baudrates: 300bps to 1Mbps
576 byte receiving buffer; 640 byte transmitting buffer
Hardware or X-On/X-Off handshaking support
Event character support
Virtual COM Port Device Drivers
Windows 8/7/Vista/Server 2003/XP/2000
MAC OS-X/OS-9
Linux 2.40 or higher
USBXpress Direct Driver Support
Windows 7/Vista/Server 2003/XP/2000
Windows CE
Temperature Range
40 to +85 °C
Hardware Connection
In The Case Of Working With MCU
VCCIO: 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
GND: connects to GND
TXD: connects to MCU.RX (signal direction: MCU.RX
RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
RTS: connects to MCU.CTS (signal direction: MCU.CTS
CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)
CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.
Outline Dimensions
PACKAGE CONTENT
Weight:
0.011 kg
CP2102 USB UART Board (Type C) x1
6-pin custom connector jumper wire x1
