SIM7600G-H 4G / 3G / 2G / GNSS Module for Jetson Nano, LTE CAT4, Global Applicable

Demo Board Type:ARM
Certification:CE
Origin:CN(Origin)
Model Number:SIM7600G-H 4G for Jetson Nano

DESCRIPTION
Note: Jetson Nano is NOT included.
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
4G/3G/2G/GNSS Expansion Board For Jetson Nano, Based On SIM7600G-H, Global Applicable
Overview
This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.

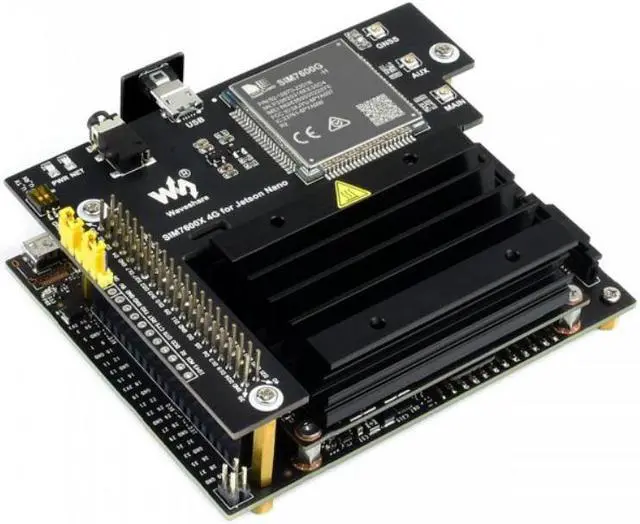

Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on.
Features
40PIN GPIO extension header for connecting Jetson Nano
Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Breakout UART control pins, to connect with host boards like STM32
SIM card slot, supports 1.8V/3V SIM card
Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
2x LED indicators, easy to monitor the working status
Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobauding baudrate: 9600bps ~ 115200bps
Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/STM32)
Communications Specifications
GNSS Specifications
Receiver type
16-channel
C/A code
Sensitivity
Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
Cold starts: -148 dBm
Time-To-First-Fix (open air)
Cold starts:
Hot starts:
Accuracy
Position:
SMS and Audio Specifications
SMS
Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature
Supports echo cancellation
Supports noise reduction
Other Specifications
Power supply: 5V
Operating voltage: 5V/3.3V (configured via jumper)
Operating temperature: -30°C ~ 80°C
Storage temperature: -45°C ~ 90°C

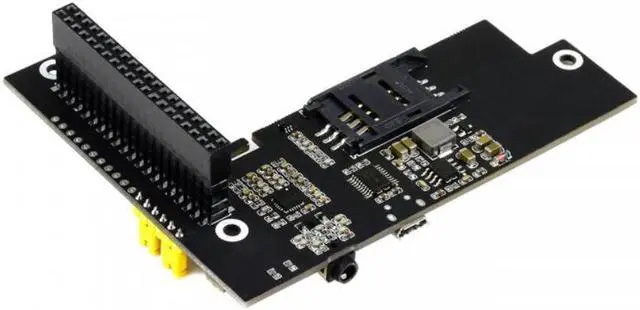

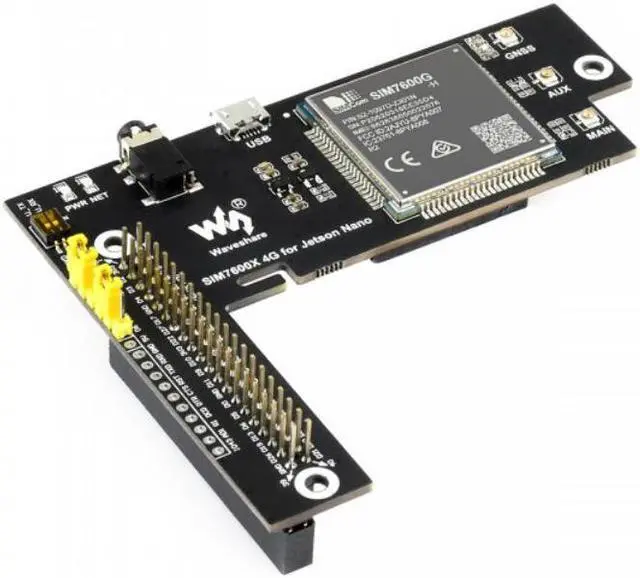

What's on Board
SIM7600G-H
NAU8810 audio decoder
TXS0108EPWR voltage translator:
translates 3.3V/5V into 1.8V
MP1482 power chip
RT9193-33 voltage translator:
translates 5V into 3.3V
40PIN GPIO header:
for connecting with Jetson Nano Developer Kit
SIM card slot:
supports 1.8V/3V SIM card
USB interface:
for testing AT Commands, getting GPS positioning data, etc.
3.5mm earphone/mic jack
MAIN antenna connector
AUX antenna connector
GNSS antenna connector
Network status indicator
Power indicator
UART enable switch:
ON: connect UART ports of SIM7600 and Jetson Nano
OFF: disconnect UART ports of SIM7600 and Jetson Nano
Operating voltage selection jumper:
VCC - 3.3V: set operating voltage as 3.3V
VCC - 5V: set operating voltage as 5V
PWR control config:
PWR - 5V: SIM7600 auto startup on power up
PWR - D6: SIM7600 will be turned on/off by D6 pin of Jetson Nano
Dimension
PACKAGE CONTENT
Weight:
0.233 kg
Note: Jetson Nano is NOT included.
SIM7600G-H 4G for Jetson Nano x1
LTE Antenna x1
GPS External Antenna (B) x1
Jetson Nano USB Adapter x1
Screws pack (2pcs) x1
