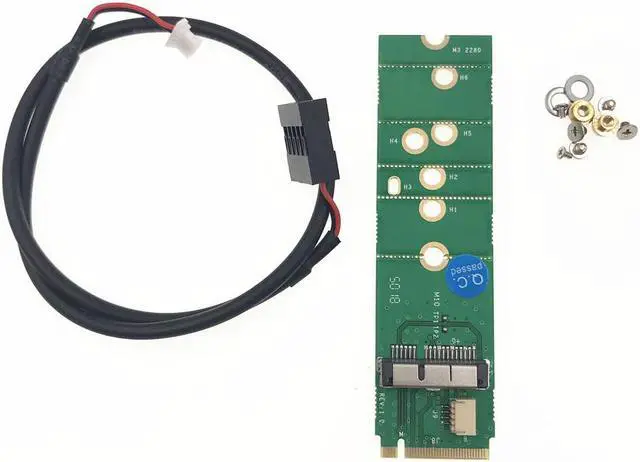

6+12 Pin Wifi Wireless Card BCM94360CS2 BCM94360CS2 BCM943602CS to NGFF M.2 KEY M PCI-E SSD Slot with bluetooth cable

Transmission Rate:867Mbps
Certification:NONE
Origin:Mainland China
Kind:Internal
Type:Wireless
Lan Transmission Rate:1000M Ethernet
Application:Laptop
Wireless Protocol:802.11n
Adapter Socket:NGFF Key M
Interface Type:NGFF Key M
Wi-Fi Supported Frequency:2.4G
Package:No
Applicable Network Type:Gigabit Ethernet

Product Description
Special statement:
This adapter card is theoretically applicable to the 6+12pin wireless module in Apple Computer.
However, there are too many types of wireless network card modules that Apple uses for this interface.
Apple with a 6+12 PIN, length of 33 mm and 39 mm with a fixed post in the middle Module, some wireless module length and the screw fixing position of the tail are different, please find your own solution to fix the problem, and, with this combination, be sure to pay attention to whether your computer antenna feeder and your wireless module is equipped, and after this combination, is your own computer installation space enough.
About Bluetooth: Bluetooth module can not be used for two reasons, one is yours wireless module is not equipped with Bluetooth, the other is whether your computer wireless interface is set become a USB signal cable, both of which are indispensable.
This adapter card can support Bluetooth function. (The riser card has a USB signal cable from the wireless module).
Specifications: 80mm * 22mm * 5mm (length * width * thickness)
This adapter does not support any wireless network cards which only supports SATA Protocol M.2 NGFF.
This Adapter only support M key M.2 NGFF!!!!
Slots:
Different models of wireless network card copper posts are installed in different locations:
suitable for A1502 A1425 A1398 wireless network card model BCM943602CS BCM94360CS BCM94331CSAX
suitable for wireless network card model BCM94360CS2
suitable for wireless network card model BCM943224PCIEBT2
suitable for BCM94360CD BCM94331CD BCM943602CDP, note BCM943602CDP BCM94360CD and BCM94331CD These three wireless network card models can only be locked with one fixing screw, no effect on the use
Note:
1: This product only supports 6+12pin type wireless modules in Apple notebooks. It can also support wireless modules with some identical feet. However, please fix the fixed problem yourself.
2: There are many types of interface definitions for NGFF interfaces, such as solid state drives and wireless modules! They are divided into Akey, Bkey, A+Ekey, Mkey, B+Mkey, etc. by slot. Please pay attention to distinguish, don't make mistakes.
This Adapter is NGFF M.2 Key M PCIe X4
3: The adapter card does not need any driver, because the adapter card does not carry any chip, there is no chip, so there is no such problem as driver and compatibility. You need to install the driver of your own wireless network card module itself, wireless. The NIC module does not have a driver or the driver installation error does not work properly!
4: The adapter card only changes the interface form of the wireless module, and does not change any performance of the module, because it is just a matter of connecting several wires from your module! What function did you have in the module, and what function was there after the transfer, not to mention the use of the adapter card, resulting in slow, unstable, and so on.
Package Included:
1 x Adapter
Set of screws
