802.3af/at POE injector 8port 10/100Mbps 8 channel Open Frame POE panel board for IP camera IP phone WiFi AP

Certification:CE,FCC
Origin:Mainland China
Model Number:ZQPOEI008NC
Type:POE Injector
Data rate:10/100Mbps
PoE standard:24V passive POE, support 802.3af/at
Power pins:Mode B: 4,5V+, 7,8V-
Usage:IP camera, IP phone, 24V POE WiFi AP, etc
Dimension:175mm*37mm*20mm
Ethernet cable:TIA/EIA 568 Cat. 5/5e/6/6e/7
Certificates:CE& FCC& RoHS& ISO9001
Warranty:2 Years

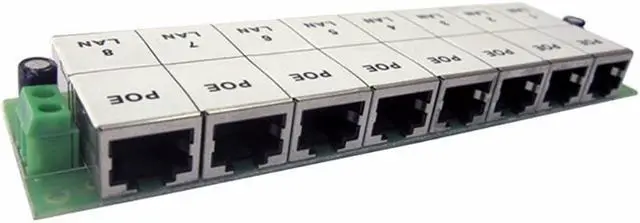

ZQPOEI08NC POE injector 8port 10/100Mbps 8 channel POE panel board for IP camera IP phone WiFi AP
Note: Without 48V or 24V 60W power adapter of the 8port POE injector
24V 60W power adapter for 24V passive POE PDs. 48V 60W power adapter for most IP camera, 802.3af/at WiFi AP. 12V 60W for 12V IP camera with POE splitters, for the POE injector.
(For most IP cameras, about 6 watts per camera, 8 watts if they have PTZ or IR features. If "12, POE" cameras, it still need 48V Powered Over Ethernet.)
Specification:

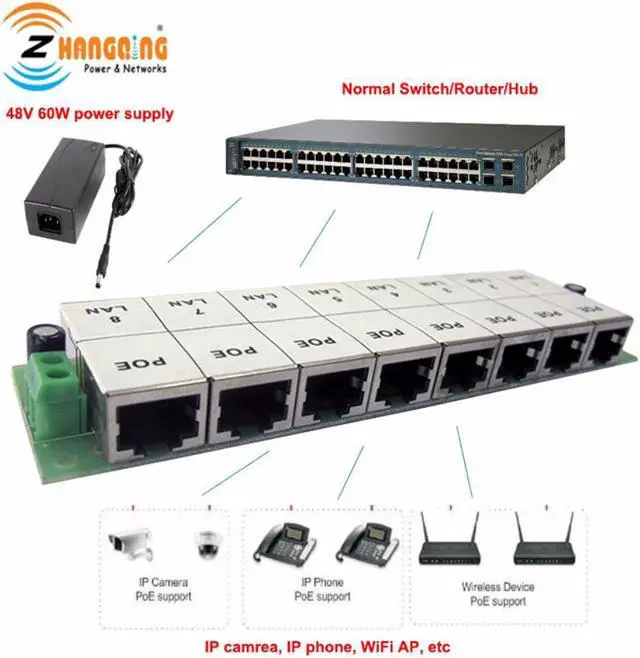

POE injector---Adding POE function to any Switch/Router/Hub
Terminal block connector input, 8 Lan port, 8 POE port, shielded
For IP camera, IP phone, WiFi, Access point, etc.
DC input, 12V 24V 48V 56V
DC output, 12V 24V 48V 56V
10/100Mbps data rate
Over current, over voltage protection. FCC CE RoHS certified.
LED indicator
