7+1 port 100Mbps PoE Switch Dual DC hole LED Indicator Ethernet for IP Camera , Access point , VOIP Phone

Certification:CE,FCC
Origin:Mainland China
Plug Type:None
Model Number:POE-8-7
Item Type:POE Switch
Input:100-240V AC 50/60Hz
Output:18 TO 56 V 90W (Min)
Power:1/2 & 3/6(Mode A) 4/57/8(Mode B)
Data In Connects:PC/HUB/Switch
Data Rate:10/100 Mbps
Connector:RJ-45
Operating Humidity:10%~80%RH
Storage Temperature:-40°C~70°C


7+1 port 100Mbps PoE Switch Dual DC hole LED Indicator Ethernet for IP Camera , Access point , VOIP Phone
100M PoE Switch, Mode A&B, Without power supply
Overview
The ZQ-POES-8-7 Power Source Convenient switch combines an small-high efficiency 8-port 10/100 Mbps switch with 7 PoE port .
The ZQ-POES-8-7 PoE switch use an external18VDC to 57VDC power adaptor. All 7 PoE Ethernet ports can provide 30W power as well as 10/100M data transmission over standard readily available Cat 5/ 5e / 6 cables.
The ZQ-POES-8-7 PoE t allow for data and power to be transmitted over a single Ethernet twisted-pair cable to the attached devices.
The ZQ-POES-8-7 switches is Power Source Equipment (PSE) and fully compatible with Powered Devices (PD) that comply with the passivet PoE standard, allowing users to attach any PoE compliant device such as wireless Access Points (APS), VOIP phone, IP camera, printer and Network Attached Storage (NAS) to the PoE Switch without requiring additional power On a network. The unit is designed with home and small business users in mind and is a cost effective solution for environments where AC power is not available or too costly to install.
Features
1.
8 switch ports with 10/100Mbs auto detect operation with status LED
2.
Available power supply options
             18 volts, 24 volts, 48 volts 56 volts
30 watts, 60 watts, 120 watts
100 to 240 volt AC input, 50 or 60 hz high efficiency
3.
7 always on PoE outputs with either Mode A and/or Mode B
             Mode A power and data on pins 12 (-) and 36 (+)
Mode B power or pins 45 (+) and 78 (-) with data on pins 12 ,36,45 and78
4.
Dual PTC fuses on each PoE output port
            One 650 ma fuse per port for Mode A
One 1000ma fuse per port for Mode B
5.
18 volt to 56 volt operation
6.
Power supply inputs
           2.1mm power connectors, center positive
Mode A input with LED status
Mode B input with LED status
LED indicates 18/24 volt operation or 48/56 volt operation
Maximum input current per mode 2.5 amps
Mode B PoE power input from the uplink port 1.25amps max
7.
Dual Power supply operation
           Redundancy - 48v 802.3af only see text
           Load balancing 48v 802.3af only see text
Mixed voltage Mode A at 48v and Mode B at 24v see text
8.
Uplink port 10/100Mbs
          No PoE voltage out
Auto detect 568 A or 568 B connections
9.
802.3af emulation ( always on, no autonegotiation)
          48 volt in either A or B modes
LED Indicator
POWER LED              INPUT Off (0-18V)
 Green (18-37V)
    Red(38-56V)
Specification
Dimensions 192mm×82mm×27mm

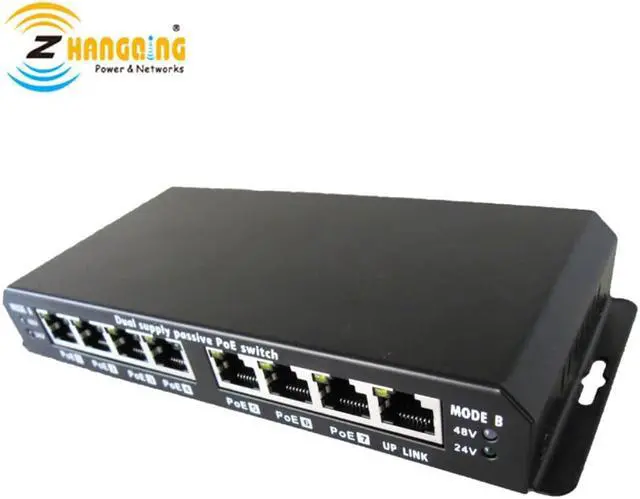

Picture Show
