CCTV 24V 1A Security POE Wall Mount Plug Poe Injector Ethernet PoE Adapter For 24V Devices EU plug PoE Power supply

Certification:CE,FCC
Origin:Mainland China
Plug Type:EU
Model Number:24V PoE Adapter
Item Type:POE Injector
Customized:yes
Connection:plug in
Output:24V 1A DC
Usage:for poe and power
Color:Black
Input:AC100-240v 50/60 Hz


Monitoring CCTV 24V 1A POE Wall Plug RJ45 Poe Injector Ethernet
PoE Adapter For MikroTik , 24V Devices EU plug
24V 1A PoE Power Adapter
This Non standard PoE injector is a simple and convenient power supply equipment for PoE or Non PoE devices via only an Ethernet cable, which will save your trouble about power line cabling and save cost.
* Provides remote power to equipment through CAT 5 Ethernet cable up to 100M
* Autoranging switching power supply 100~240V AC
* Short circuit, over-current, and over-voltage protection
* Reliable 24W passive POE output
* Compact, portable size with convenient wall plug design
* 24V-1A Wall Plug POE Injector Ethernet Adapter IP Phone/Camera Power Supply
* A perfect solution for applications where an electrical outlet may not be available, the injector adapter can be used to power PoE-enabled devices such as IP cameras or Wireless Access Points (WAPs).
* The compact, wall-mountable design makes it easy to install the adapter into areas where space is limited, and can be installed in seconds with no configuration required.
Specification :
* Output--24V DC 1A
* Input--100-240V 50/60HZ
* Output--24V-1A
* Efficiency--80% Min
* Line / Load Regulation--3% / 5%
* Ripple / Noise--200mV p-p
* Turn-On Delay--2 Seconds Max
* Rise Time--40 mS Max
* Protections--Auto Recover Over-Voltage, Short Circuit, Over-Current
* Environmental Standards--CE
* Operating Temperature---10 to +40°C (14 to +104°F)
* Operating Humidity (RH)--5% - 90%
* Storage Temperature---20 to +85°C (-4 to +185°F)
* Network Connector Type--RJ45 Shielded
* POE Type--Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
Application :
* IP Phone
* Wireless Access Point and Client Devices
* Security Camera Systems

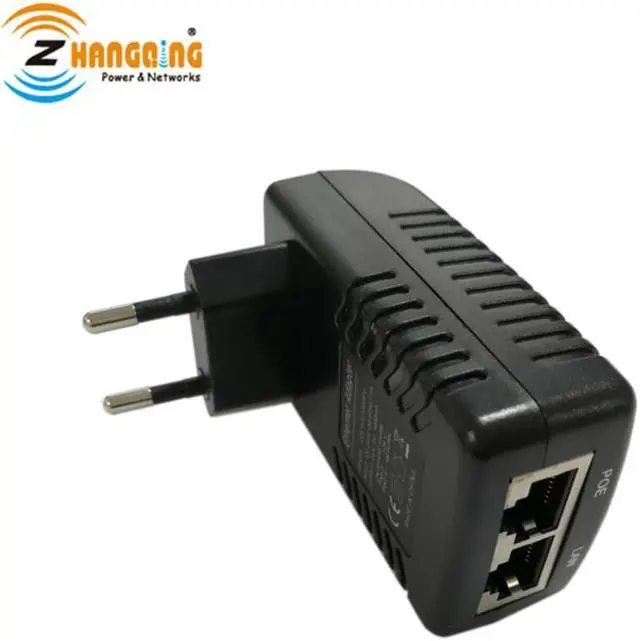

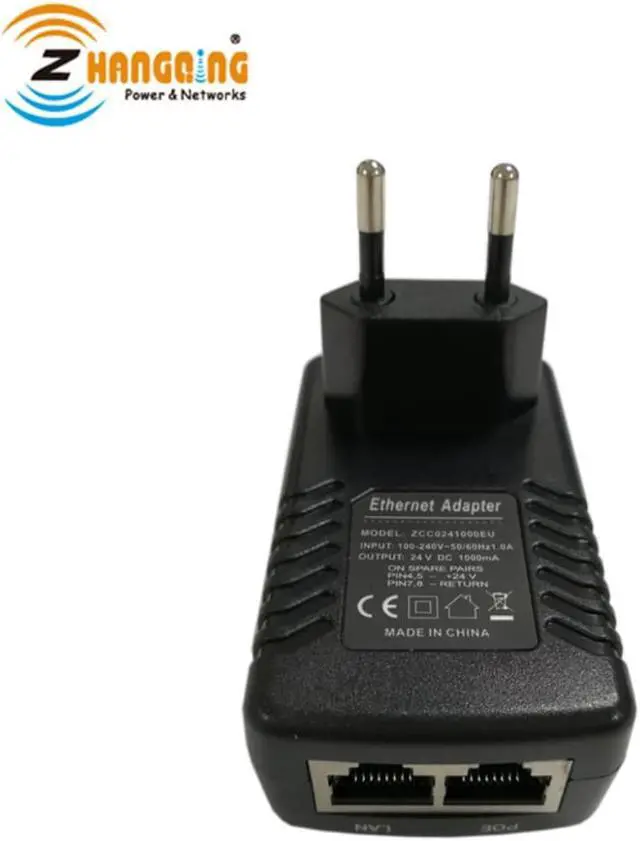

Photo Show :
