Security Power Over Ethernet Gigabit PoE Injector Single Port 3 Pieces a Lot Midspan For Surveillance Camera

Model Number:ZQPOEGI001
PoE Method:Mode B
Product name:1 Port Gigabit PoE injector
Certification:CE& FCC& RoHS
DC Plug:2.1*5.5mm Jack
Color:Black
Application:IP Phone /AP/IP Camera
Power output:Pin 4,5 V+; Pin 7,8 V-
Connector type:RJ45 connectors
Dimension:76*27*20mm


Security Power Over Ethernet Gigabit PoE Injector 1 Port Midspan For Surveillance Camera
Gigabit Single port, Mode B without power supply, 3piece a lot.
Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.
Save big on network upgrades and device installations
Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Passive PoE means versatility
. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled 802.3af, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Simple, Reliable, and Supported By Experts
We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, Please contact us, we will provide the best solution and service for you!
Specification
DC plug input, 1 Lan port, 1 POE port, shielded
For IP camera, IP phone, WiFi, Access point, etc.
Over current, over voltage protection.
FCC CE RoHS certified.
Wall-mountable
LED indicator:
POWER OFF
--Off
                  0 to 400mA
--Green
                  >400mA
-- Red

·         1 port POE Power Injector Panel
·         1 LAN ports, 1 LAN+Power(POE) ports, shielded
·
60 watt max each port, resettable fuse on each port
·
Power VOIP phones, IP Cameras, WiFi Access Points, and more PDs
·
Same voltage to all ports
·
2.1mm x 5.5mm for DC plug
·
LED power light
·
Works with any ethernet switch or router, add POE to any switch or router
·
Use any power supply to 48 volts, 24 volt, 12 volt, according to your need
·
Plastic outside box
FEATURES

To achieve best performance of a Wireless LAN, the location of Access Point(AP) must
becarefully chosen. In most cases, finding a power supply for AP is a common obstacle.
Power over Ethernet(PoE) technology provides the ideal power solution to help overcome
these obstacles.
In Ethernet, four pairs of C5 or C5E twisted pairs are used as the medium for transmission.
The actual data transmission, however, o-nly takes up two pairs
of wires(pairs 1-2 and 3-6). PoE technology utilizes the remaining pairs(pairs 4-5 and 7-8)
to conduct electricity.

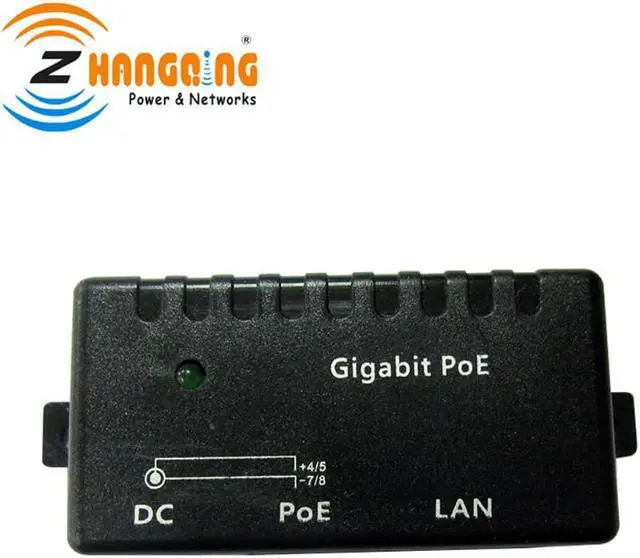

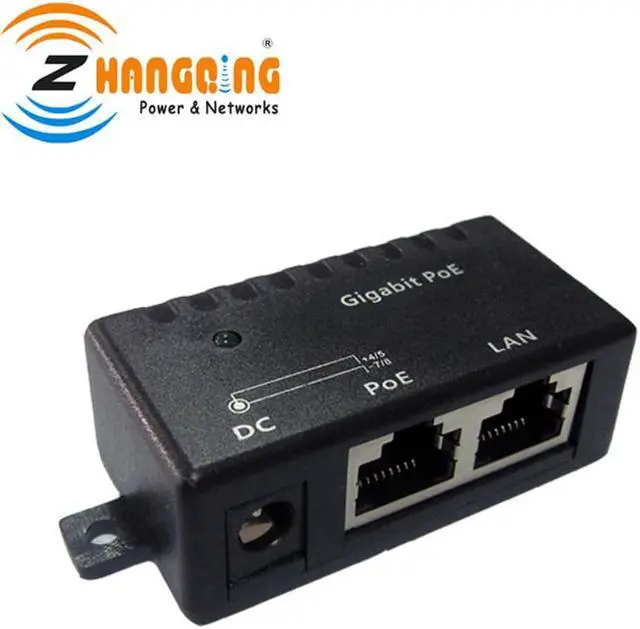

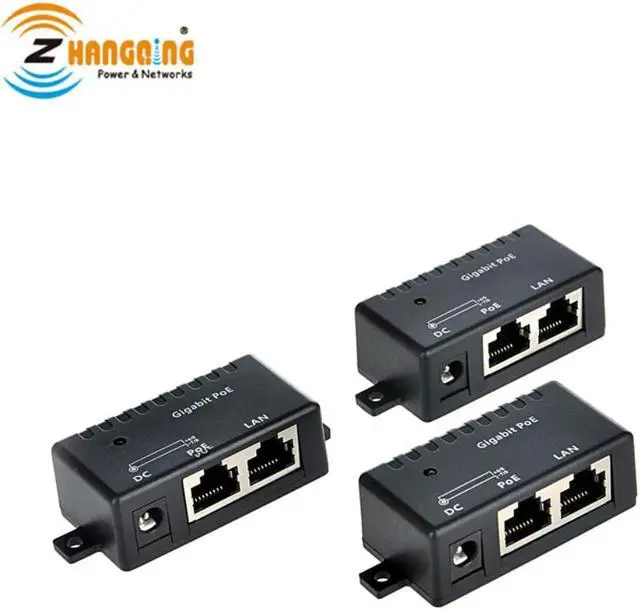

PRODUCT SHOW
