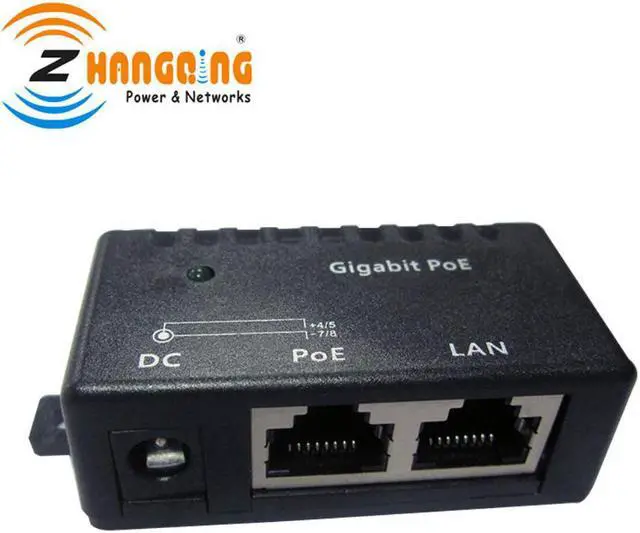

Wall Mount Single Port Gigabit PoE injector Including 48V 15W Power Supply for IP Camera or 802.3af device

Certification:CE,FCC
Origin:Mainland China
Plug Type:EU
Model Number:ZQ-POE-GI-01-48V15W
Item Type:POE Injector
Type:Gigabit POE Injector Cube
Data rate:10/100/1000Mbps
PoE standard:Passive POE, support 802.3af/at
Power pins:Mode B: 4,5V+, 7,8V-
Usage:IP camera, IP phone, 48V POE WiFi AP, etc
Dimension:76*27*20mm
Ethernet cable:TIA/EIA 568 Cat. 5/5e/6/6e/7
Weight:30g/pc
Certificates:CE& FCC& RoHS& ISO9001
Warranty:12

Gigabit Single Port PoE Injector 1000Mbps PoE Panel With 48V 15W Power Supply

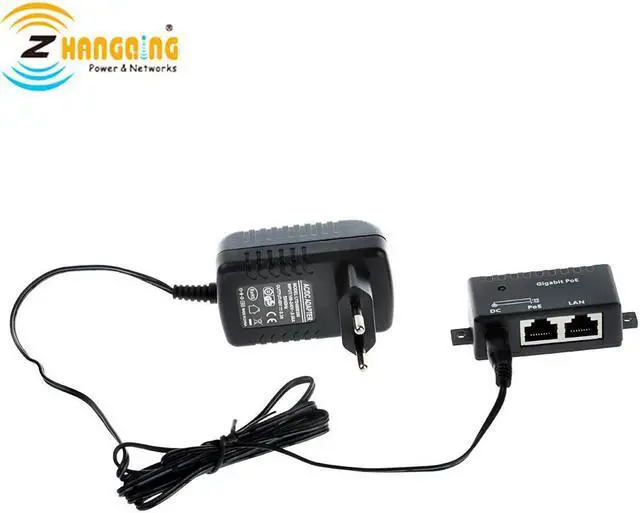

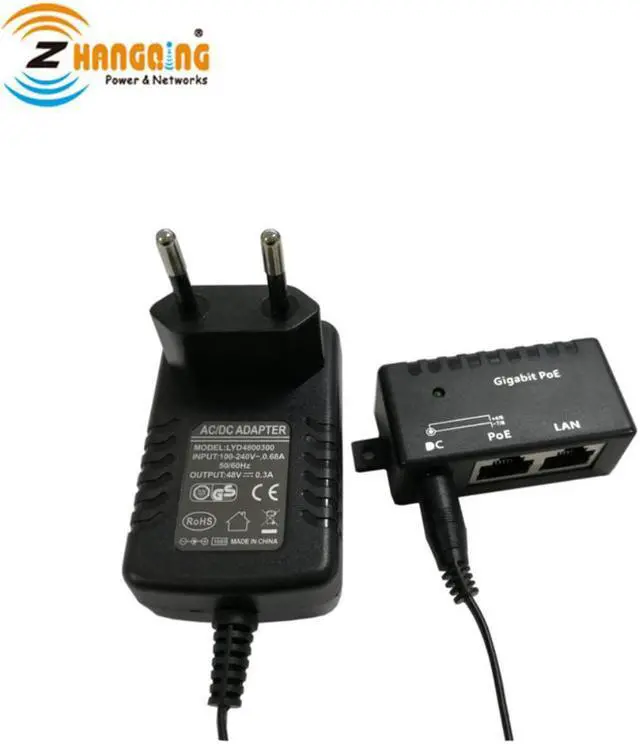

Note: With 48V 15W power adapter of the gigabit POE injector
24V 1A power adapter for 24V passive POE PDs, for MikroTik and 24V UBNT, Openmesh.
48V 15W adapter for most IP camera, 802.3af/at WiFi AP. 12V 1A for 12V IP camera.
This Passive PoE injector, whis a simple, cost-saving and convenient equipment for IP camera, IP phone, WiFi Access point, powered onver Ethernet cable.
The PoE injector can power PDs 100 meters far away from power source with safety, low-cost and easy installation.
This PoE injector is passive PoE but compatible with all IEEE802.3af/at powered devices, while power pins 4/5(+), 7/8(-) midspan. Because 802.3af/at standards support power pins 4/5V+, 7/8V- and 1/2V+, 3/6V-.
As you know, POE switch is expensive, while POE injector+normal switch= POE switch, which share the same function, but POE injector+mormal switch are much more economical.
(For most IP cameras, about 6 watts per camera, 8 watts if they have PTZ or IR features. If "12, POE" cameras, it still need 48V Powered Over Ethernet.)
Specification:
DC plug input, 1 Lan port, 1 POE port, shielded
For IP camera, IP phone, WiFi, Access point, etc.
Over current, over voltage protection.
FCC CE RoHS certified.
Wall-mountable
LED indicator:
POWER OFF
--Off
                  0 to 400mA
--Green
                  >400mA
-- Red
Features:
·         1 port POE Power Injector Panel
·         1 LAN ports, 1 LAN+Power(POE) ports, shielded
·
60 watt max each port, resettable fuse on each port
·
Power VOIP phones, IP Cameras, WiFi Access Points, and more PDs
·
Same voltage to all ports
·
2.1mm x 5.5mm for DC plug
·
LED power light
·
Works with any ethernet switch or router, add POE to any switch or router
·
Use any power supply to 48 volts, 24 volt, 12 volt, according to your need
·
Plastic outside box
