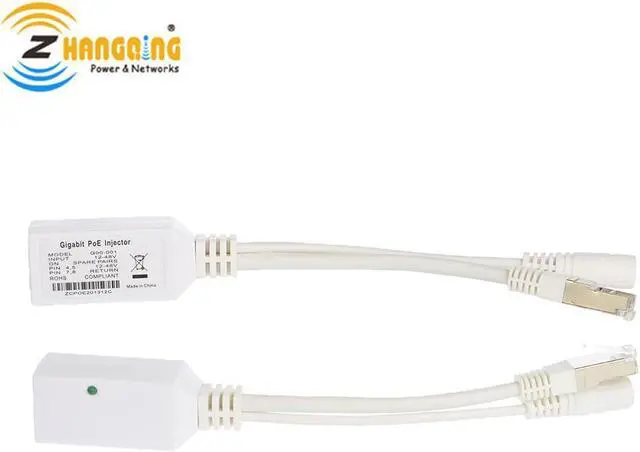

Gigabit PoE Injector cable Shield RJ45 With LED Indicator Use with any Ethernet switch Ideal for IP Cameras Access points

Certification:CE,FCC
Origin:Mainland China
Model Number:GPOE-1-IO
Item Type:Cables
Type:Gigabit PoE Injector cable
Color:White
Ethernet rate:10/100/1000Mbps
Size:150 mm x 29mm x 22mm
Standard power connector:2.1mm x 5.5mm
Mode B operation:pins 4-5 (+) pins 7-8 (-)
RJ45:Shield


Gigabit PoE Injector cable Shield RJ45 With LED Indicator Use with any
Ethernet switch Ideal for IP Cameras Access points
Overview :
The devices is PoE Injector cable.  It is suitable for using with products that basically do not support Power Over Ethernet. It is applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices.
Product Details :
Gigabit PoE injector cable
POE method :M
ode B Operation ( Pins 4/5+ 7/8-)
Rate : 10/100/1000Mbps version
Color : white
Packing : 250 pcs and 15kgs each carton
Specification :
1 Port Gigabit Ethernet
Injector or Splitter
1 Shielded RJ-45 LAN
1 Shielded RJ-45
LAN+POE  10/100/1000 data rates
Size: 6 x 1.3 x .8 inches   (150 mm x 29mm x 22mm)
1000 ma max current  ( not fused)
Use with any Ethernet switch  PoE or non-PoE   switches
Standard power connector   - 2.1mm x 5.5mm
LED status indicator
Operating Temperature      0 to 65 deg C
Mode B operation- pins 4-5 (+)  - pins 7-8 (-)
Ideal for IP Cameras, VOIP  phone, WiFi Access Points
Select the power supply you  need 12 to 56 volts.
Power is always on - No auto-negotiation  - Powers 802.3af / 802.3at
  devices passively

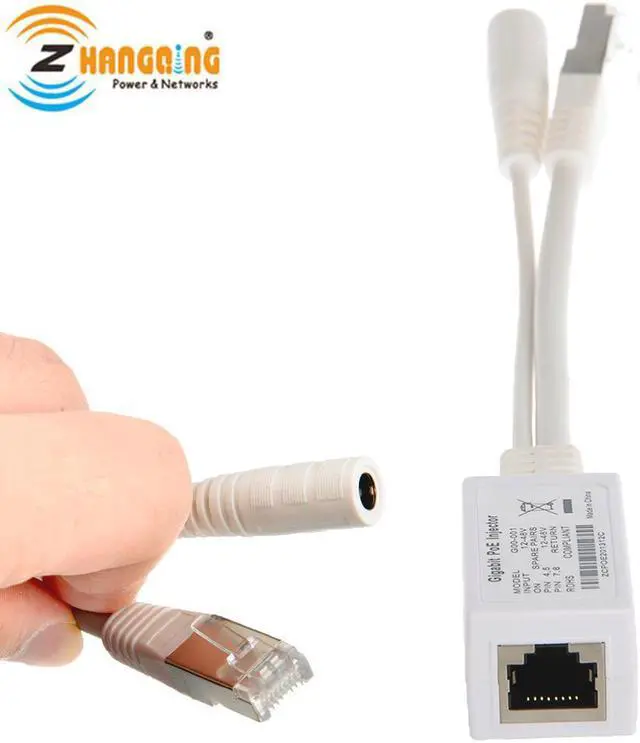

Picture Show :
DC size is 2.1mm (5.5 x 2.1 mm) Power Pins 4,5 + and 7,8 -
