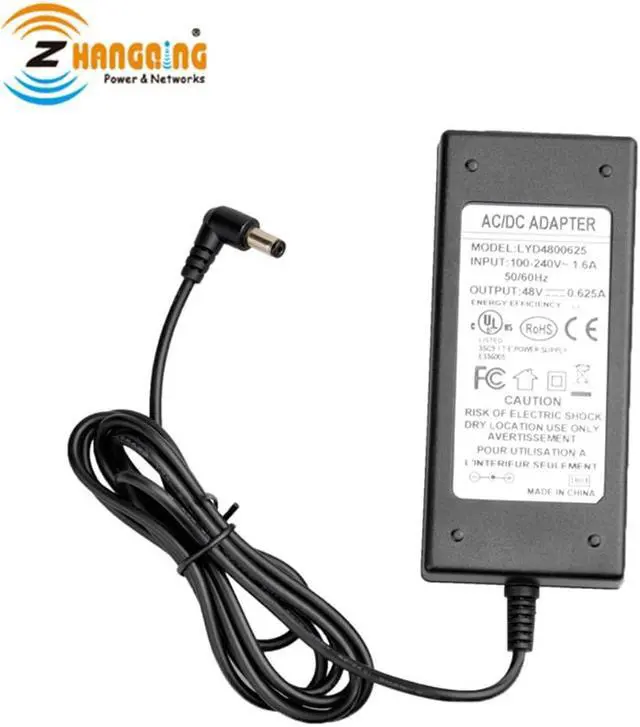

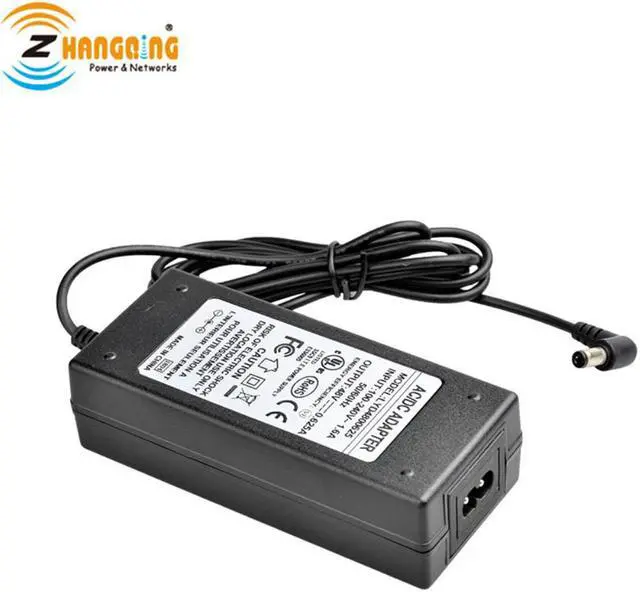

48 Volt 0.625 Amp 30 Watt Power Supply for PoE and Other Applications with 2.1mm x 5.5mm DC Plug, UL and FCC Approvals

Certification:CE,FCC
Origin:Mainland China
Model Number:ZQPOE-48V30W
Input Voltage:AC100-240V
Output Voltage:DC 48V
Type:Single
Output Frequency:50/60HZ
place of origin:Guangdong, China
Output Current::0.625A
Products Status:Stock
Output Power::1-30w


48 Volt 0.625 Amp 30 Watt Power Supply for PoE and Other Applications with 2.1mm x 5.5mm DC Plug, UL and FCC Approvals
Specification:
48 volt 0.625 amp 30 watt power supply
UL/CE/FCC Certified
Recommended for use with PoE injectors and switches or other 48 volt applications
Other power supply options available - See our store to choose
Normal operating environment: 0°C ~ 40°C
20% ~ 80% R.H
Storage environment: -20°C ~ 70°C
20% ~ 90% R.HInput voltage range: AC 90V ~ 264V 47-63Hz
Rated output rating: Load regulation: ±5%   30W Max.
Output: 48v DC 0.625A
Output no-load voltage: 105% output voltage Max(Nom.)
Protection: OCP/ OVP/ SCP
Dielectric strength: Input Output 3.0 KV for 1 minute
Insulation resistance: 500VDC 50M Minimum
Efficiency: 82% Normally @ rated load
Ripple & Noise: 1% output voltage Max.
Line regulation: ±1%
Hold up time: 3ms
Temperature rise: 95 °C Max. @ rated load / Class B
Applicable standard: UL60950, IEC-60950/ EN60950
Safety Agency approved: UL/CUL/CE/GS/C-tick/FCC
Picture Show:
LOW COST SOLUTION FOR PoE   :
We have POE patch panel& injector which can power most 802.3af/at PD device with 24V power supply.
(such as MikroTik Ubiquiti etc.
)
1. Solution for POE device:
poe injector + 24V power supply(Midspan) and non-poe switch it is same as most of your POE switch (Endspan)
2.  Solution for Non-PoE device
PoE injector +48V power supply+ 5v2a or 12v1a poe splitter for these device which don't Support POE(802.3af/at).
