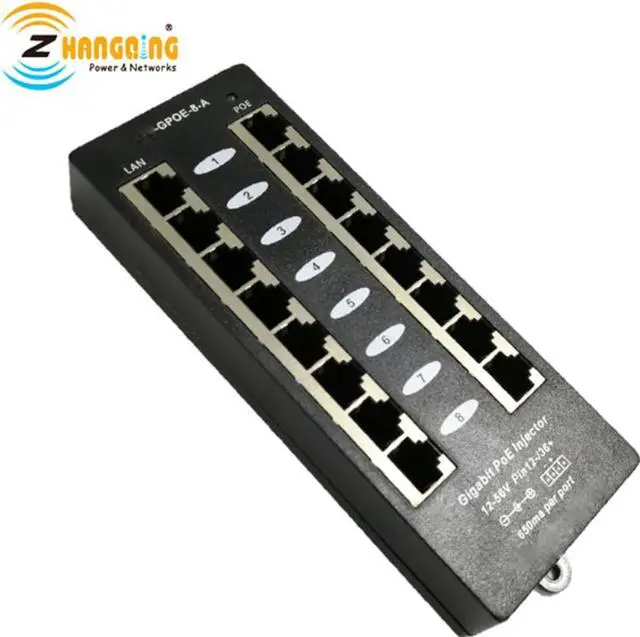

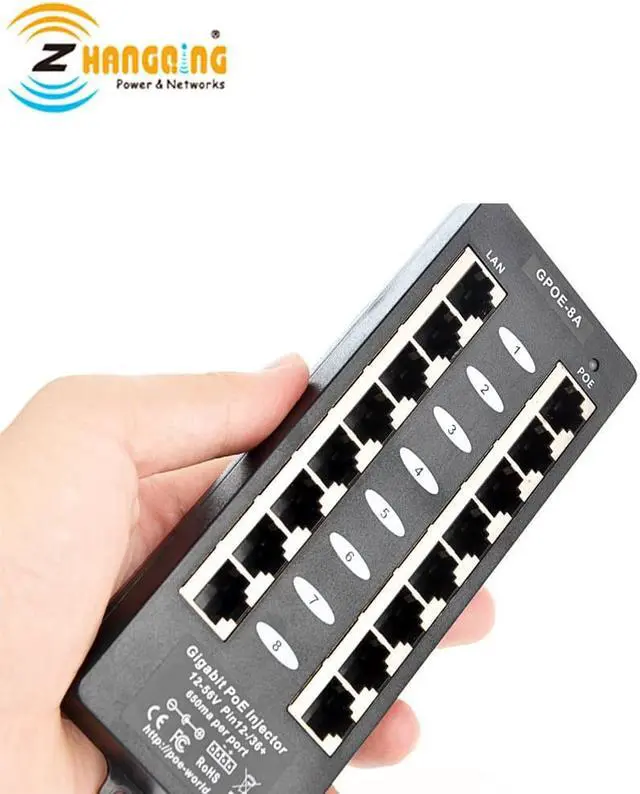

Ship Mode A Security Gigabit 8 Port PoE Injector 802.3af PoE Patch Panel For POE Camera, IP Phone, 48V PoE Devices

Certification:CE,FCC
Origin:Mainland China
Model Number:ZQPOEGA008
Data Power Pins:Mode A : 1/2+3/6-
Ethernet rate:10/100/1000Mbps
Operating Humidity:10%-80%RH
Data in:Connects PC/HUB/Switch
Output:12-56V
Color:Black


Ship Mode A Security Gigabit 8 Port PoE Injector 802.3af
PoE Patch Panel For POE Camera, IP Phone, 48V PoE Devices
Gigabit, Mode A 8 Port Injector without power supply
Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.
Save big on network upgrades and device installations
Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Passive PoE means versatility
. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled 802.3af, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Specification

8 Port Gigabit Ethernet Injector
8 Shielded RJ-45 LAN
8 Shielded RJ-45 LAN+POE
10/100/1000 data rates
Injector: 180 mm x 45mm x 25mm
Wall mount - stackable
650 ma automatic resettable fuse on each port
Same voltage to all ports - power is shared as
 needed by the devices
Use with any Ethernet switch
PoE or non-PoE switches
Standard power connector
- 2.1mm x 5.5mm
LED status indicator
Operating Temperature
0 to 65 deg C
Mode A operation
- pins 1-2 (-)
- pins 3-6 (+)
- reversing cable available
Ideal for IP Cameras, VOIP phone, WiFi Access
Points
