Switching Power Adapter Charger AC DC Power Supply 48V60W Adapter 2.1*5.5mm DC plug with power cord for injector and any switch

Certification:CE,FCC,RoHS
Origin:Mainland China
Model Number:ZQPOE-48V60W
Input Voltage:AC100-240V
Output Voltage:DC 48V
DC plug:5.5*2.1*10mm
Output Frequency:50/60HZ
place of origin:Guangdong, Chian
Output Current::1-3A
Products Status:Stock
Output Power::51-100W


Switching Power Adapter Charger AC DC Power Supply
48V60W Adapter 2.1*5.5mm DC plug with power cord
for injector and any switch
Specification:

Input voltage range:
AC 90V ~ 264V 47-63Hz
Rated output rating:
Load regulation: 48Volt±5% DC 1.25Amp 60W Max.
tput no-load voltage:
105% output voltage Max(Nom.)
Inrush current (Cold):
80A Max.
Protection:
OCP/ OVP/ SCP
Dielectric strength:
Input Output 3.0 KV for 1 minute
Insulation resistance:
500VDC 50M Minimum
Efficiency:
70% Normally @ rated load
Ripple & Noise:
1% output voltage Max.
Line regulation:
±1%
Hold up time:
3ms
Temperature rise:
95 °C Max. @ rated load / Class B
Applicable standard:
UL60950, IEC-60950/ EN60950
Safety Agency approved:
UL/CUL/CE/GS/C-tick/FCC
Normal operating environment:
0°C ~ 40°C
20% ~ 80% R.H
Storage environment:
-20°C ~ 70°C
20% ~ 90% R.H
1.5m output cord, 1.5m input cord
2.1*5.5mm & 2.5*5.5mm DC plug

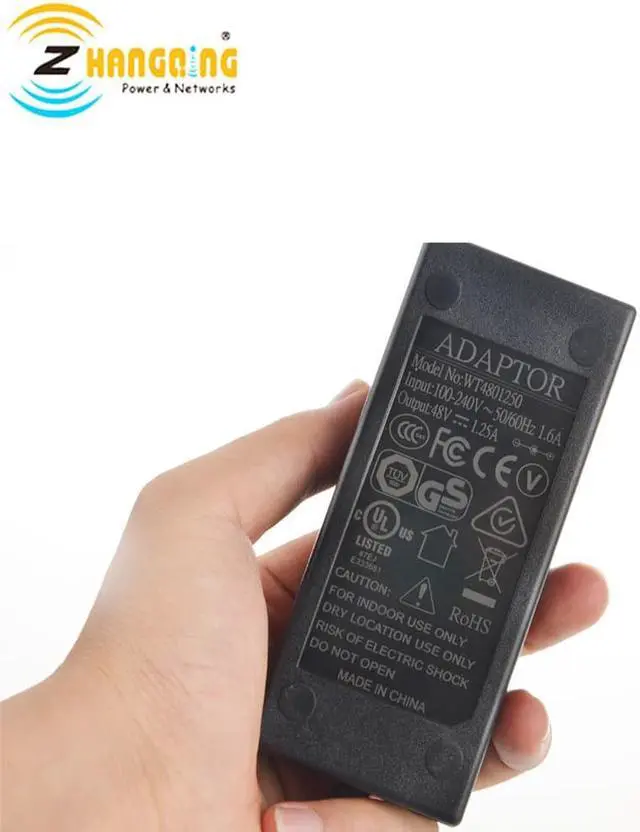

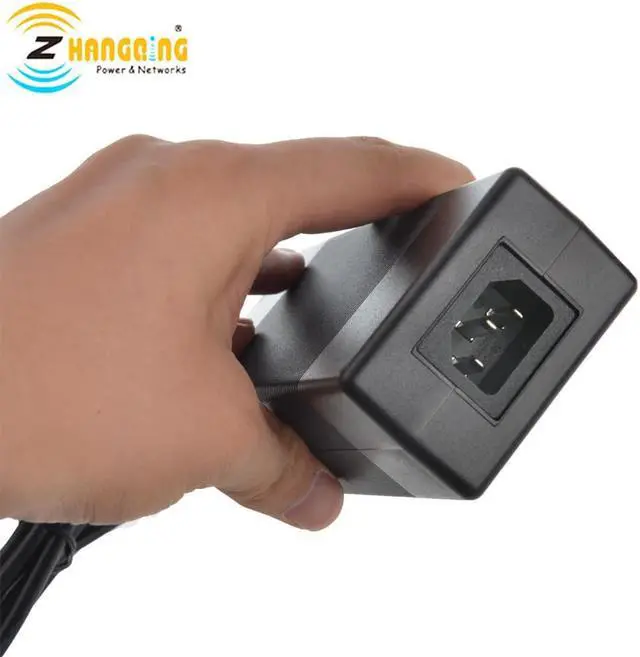

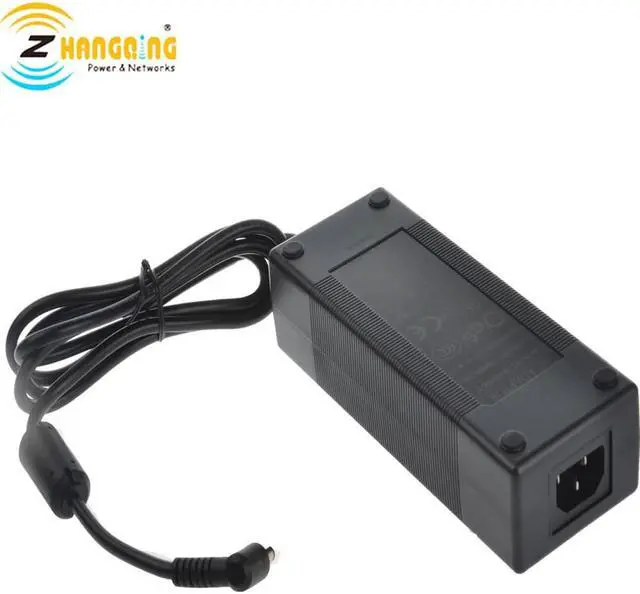

Picture Show:
LOW COST SOLUTION FOR PoE
We have POE patch panel& injector which can power most 802.3af/at PD device with 48V power supply.
(such as IP camera, IP phone, WiFi access point AP, iPad and Tablet etc.
)
1. Solution for POE device:
poe injector + 48V power supply(Midspan) and non-poe switch it is same as most of your POE switch (Endspan)
2.  Solution for Non-PoE device
PoE injector +48V power supply+ 5v2a or 12v1a poe splitter for these device which don't Support POE(802.3af/at).
