48V output POE converter 10V-30VDC input,Gigabit Power over ethernet injector PoE for 48V product from Solar charge controller

Certification:CE,FCC
Origin:Mainland China
Plug Type:None
Model Number:48V 10W
Item Type:POE Spliter
Color:Black
Input:10-30V DC
Output:48V 10W
DC input connector:2.1mm x 5.5mm adapter
Weight:0.2kg/pc
Type:12/24V to 48V
Data rate:10/100/1000Mbps


10V-30VDC input, 48V output POE converter Gigabit Power over
ethernet injector PoE for 48V product from Solar charge controller
PoE 48v-10w Converter
This device provides a low cost solution for delivering power to a 802.3af or 48 volt device over 328ft of network cable.
This scheme allows power to be carried on 10/100 networks over the spare, unused pairs of a CAT5, CAT5E, CAT6 or
CAT7 Ethernet network cable. The source power is any supply from 10v to 30v, and the output voltage is 48 volts.
Product Specification:
Data + Power in
RJ 45 male connector
DC input connector
  2.1mm x 5.5mm adapter
Data + Power out                     RJ 45 Female connector
Network Type
10BASE-T, 1000BASE-T
Data Pins                                 1&2 and 3&6
Power Pins                               4&5 + and 7 & 8 -
Input Voltage                             10v to 30VDC
Output Voltage                          48v +- 2% at .2 amps
Operating Temperature                  0°C ~ 50°C
Product description
Power into the device is either from the 2.1mm DC connector OR from the RJ45 male pins 45+ and 78- . Both do not
have to be used, just one is required. The device does 10/100 ethernet.
Any (12v or 24v) or passive PoE injector can now power a 48 volt device directly. Plug it into spare ports on a multi
port Passive PoE injector, or connect it to any 12v to 24 volt power source and power a Phone, WiFi-Access Point,
camera or other device. The higher DC voltage of 48 volts compared to 12 volts, means the wire loss is reduced by a
factor of 16 , thus carried with less loss over the spare pairs of the 10BASE-T or 100BASE-T network cable. The remote
device extracts the DC voltage from the network cable and powers its internal electronics.
The input voltage can be applied to the 2.1mm female connector or from a passive PoE injector using Mode B ( 45+ and
78-). If power is applied to the 2.1mm input power will be isolated from the male RJ-45 so it can be plugged into a
switch or router. The data pins of 12 and 36 pass directly thru. The output voltage of 48 volts comes on 45+ and 78- of
the female RJ-45.

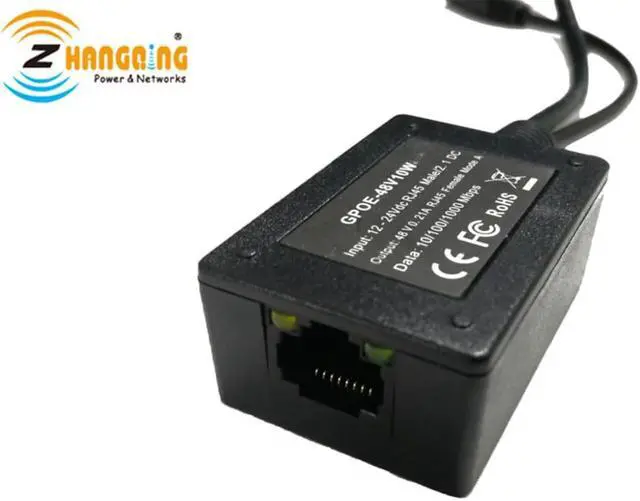

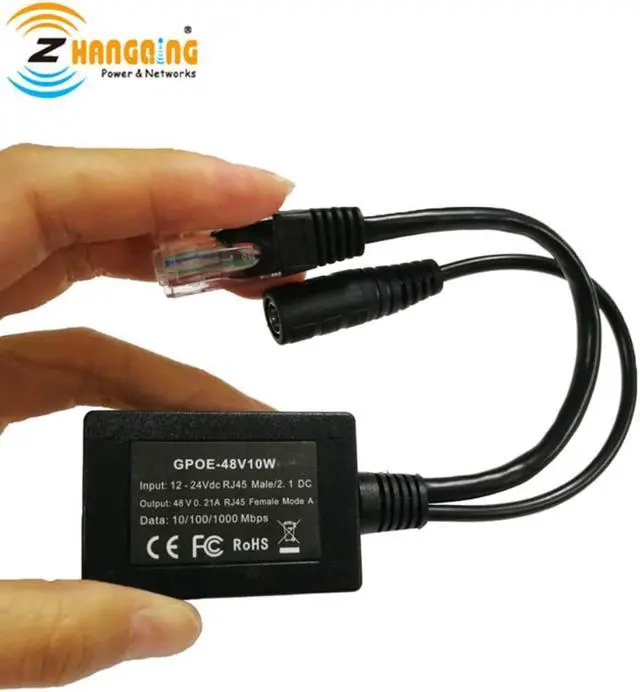

Products display
Typical Devices
IP VOIP phones IP Cameras WiFi Access Points
IP Time Clocks,
Any 48v device
Any 802.3af device
