24V 25W PoE Converter 48V to 24V Gigabit Active DC PoE Converter For 24V PoE Devices Such as 24V MikroTik Routerboard

Certification:CE,FCC,RoHS
Origin:Mainland China
Model Number:ZQPOE24V 25W
Type:48V to 24V POE gigabit active converter
Data rate:10/100/1000Mbps
PoE standard:IEEE 802.3af or 802.3at
Usage:24V passive POE devices
Ethernet cable:TIA/EIA 568 Cat. 5/5e/6/6e/7
Weight:0.2kg/pc
Certificates:CE& FCC RoHS& ISO9001


24V 25W PoE Converter 48V to 24V Gigabit Active
For 24V PoE
Devices Such as 24V MikroTik Routerboard
Gigabit Mode A/B inline step down splitter that convert 48-56 volts Mode
A/B to 24volt Mode B
This device provides a low cost solution for delivering power to a 24 volt device over 328ft of network cable. This scheme allows power to be carried on 10/100/1000 networks over active data pairs of a CAT5E, CAT6 or CAT7 Ethernet network cable. Use with any passive or 802.3af PoE switch or multiport PoE injector. This device also can work as 24V 1A PoE Spitter.
(but p
lease attention that PoE Converter function and PoE Splitter function can not be used at the same time
.), if at the same time, this device will just work as 24V 1A poe splitter, but when you plug out the DC cable, then it will work as poe converter again.
Product Features
RJ-45 connectors
Male to PoE Switch
Female to power device up to 378 feet away
Input voltage range 48v to 56v
DC IEEE 802.3af / IEEE 802.3at
Output voltage 24v 1A
Ubiquiti
Mikrotik
24v IR
24v door locks
Data rate is 10/100/1000
DC connector:                     2.1mm x 5.5mm
RJ45 Female Output:         24V 1A Passive PoE  4,5 (plus) 7,8 (minus)
                                          or
24V 1A PoE Splitter
Size 120 x 50 x 22 mm        (Din Rail Case Design - Wall mount)
Specification
1. input: 802.3af/at 48-56V
2. output: 24V 25W
3. LED indicator, one for power, one for data
4. with 15cm DC Cable
5. 10/100/1000M version
6. CE/FCC/ROSH certificate

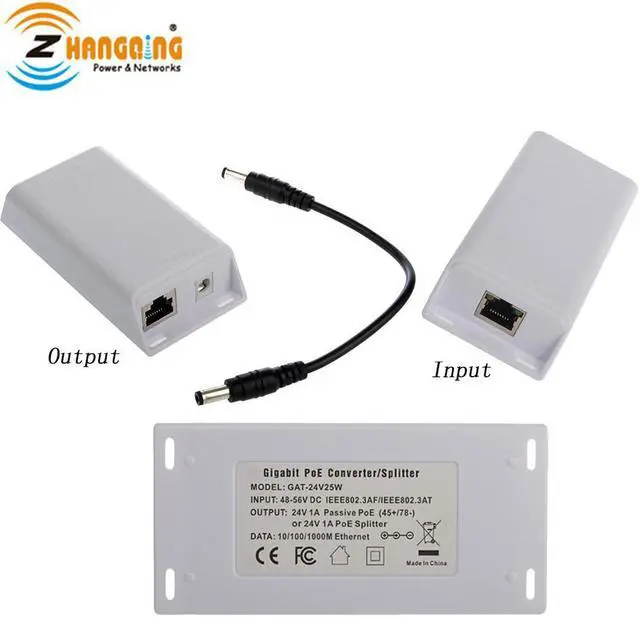

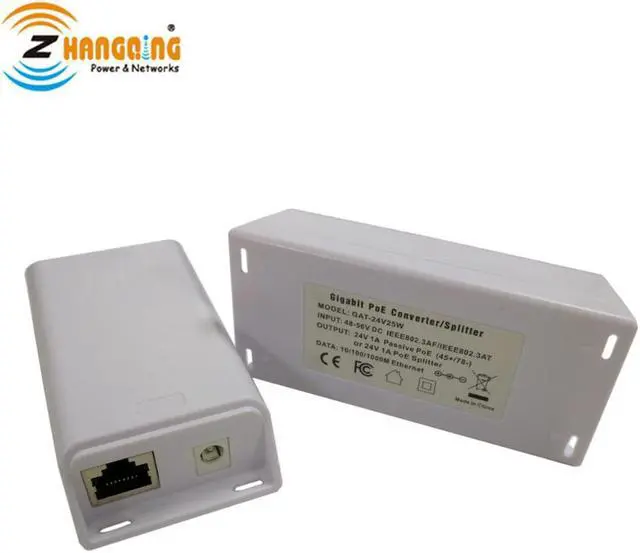

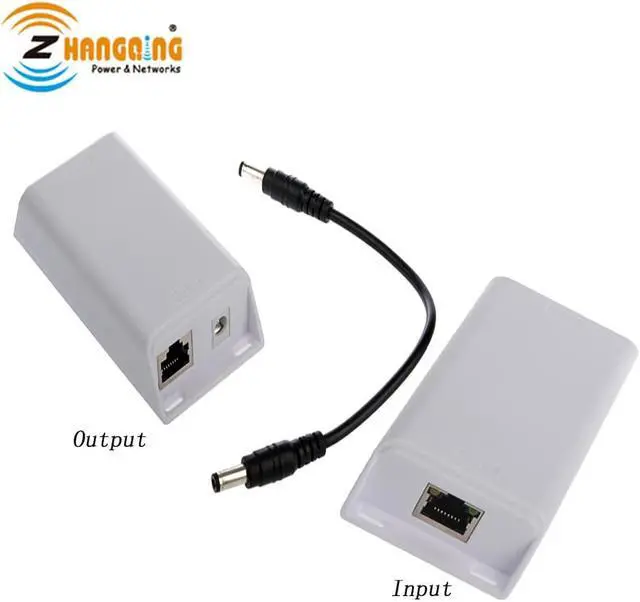

Product Display
