PoE Detector for Passive PoE-Quickly identify Power over Ethernet with RJ-45; Display indicates passive /802.3af/at; 24v/48v/56v

Certification:CE,FCC
Origin:Mainland China
Plug Type:None
Model Number:PoE Detector
Item Type:Cables
Product Name:PoE Detector
Usuage:For poe injector/switch
Ethernet Connector:RJ 45 Female
Color:Yellow
Input Voltage Max:Up to 57 volts
Internal power use:50 mw
Display Style:LED

Item Package Quantity:1

PoE Detector for Quick Identification of Power over Ethernet, Use with
any passive injector - 802.3af/at/bt PoE-Detector
Specification
1
.
Ethernet connector
RJ 45 Female
2. Data speed
The device uses no data - power only
3. Input Voltage
Max Up to 57 volts
4. Internal power use          50 mw
5. Operating Temperature   0°C - 50°C
Product description----PoE Detector
This device reports via LED lights, the type of PoE that is on the Ethenet cable. With this keychain device, you can
quickly find out
what PoE method is available, the approximate voltage, and pinout and polarity.
You can use it with passive injectors, 802.3af , 802.3at, 802.3bt with 568A, 568B or reverse PoE polarity.  Mode A
and Mode B PoE is supported. If you are far from the PoE switch or injector this device will show if a port has
power.
If you insert the device at the remote end of an Ethernet cable, then go back to the data closet with the PoE switch
- your PoE switch will show a pulse indicating that the detector is plugged into a port - up to 100 mtr away.

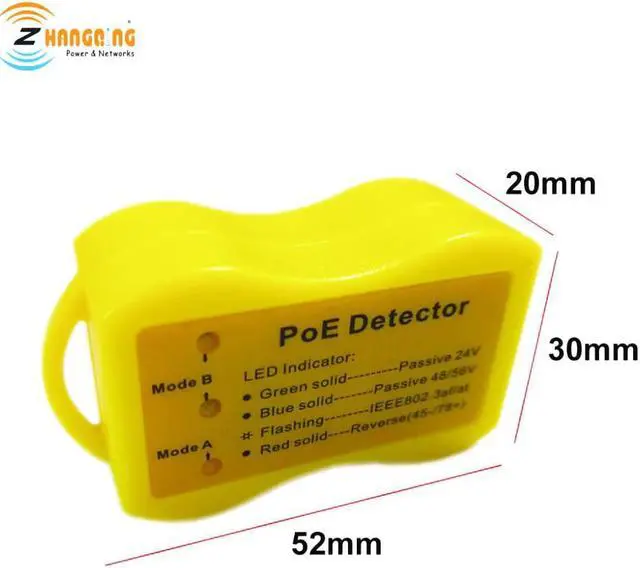

LED Display
Quickly Identify PoE on Any Port
A must-have companion for any IT pro
This pocket-size PoE Detector indicates the type of PoE ion a cable using bright, easy-to-see LED display lights.  Quickly detect and identify IEEE 802.3af/at, 24 volt passive, and even reverse polarity Mode B for Cambium or Canopy.

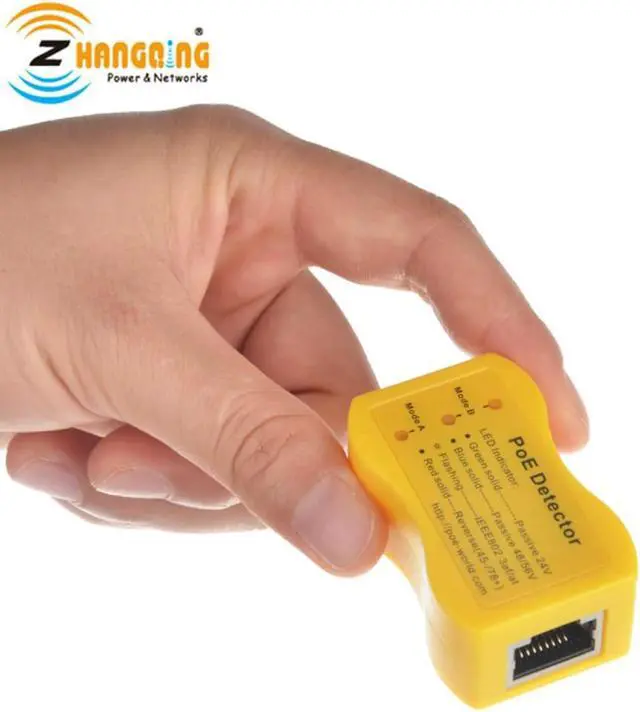

Ergonomically designed
Fits comfortably between two fingers while allowing for rapid cable testing on the RJ45 input, the PoE Detector is powered by PoE, so there's no need to worry about life.
Simple, Reliable, and Supported By Experts
We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, Please contact us ASAP!

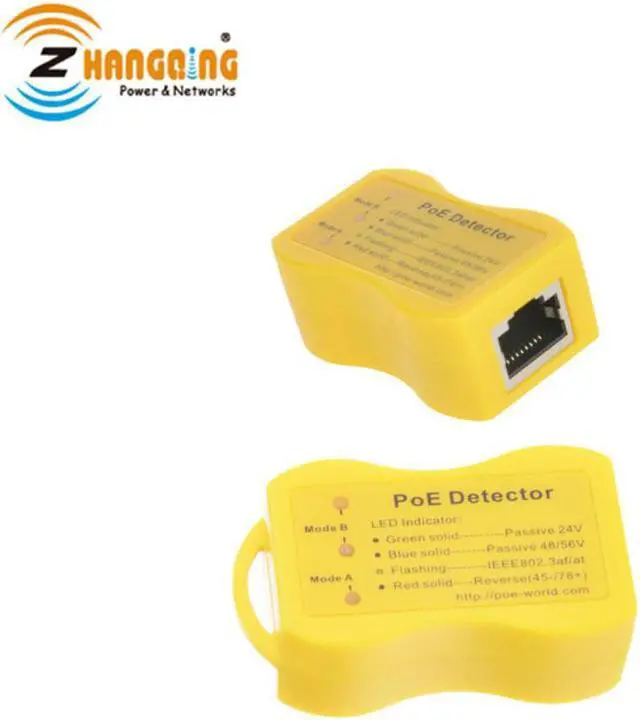

Product Show
