7+1 port gigabit Power over ethernet Passive POE switch 1 Uplink for WiFi Access Point, MikroTik, 24V 48V Devices

Certification:CE,FCC
Origin:Mainland China
Model Number:ZCPOEGS007
DC Input:Dual 2.1*5.5mm DC Jack
Etherne:10/100/1000Mbps
POE Standard:Passive, Unmanaged

Input:100-240V AC 50/60Hz
Output:18 to 56 V (650ma max per port)
Ethernet Cable:TIA/EIA 568 Cat. 5/6
Weight:0.85Kg
Dimensions:192mm*82mm*27mm

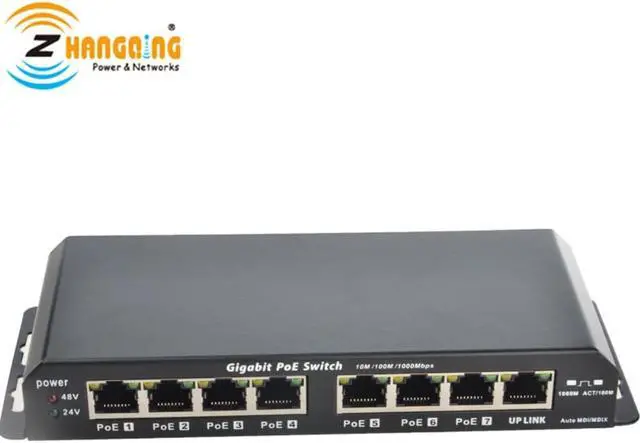

7+1 port gigabit Power over ethernet POE switch for WiFi Access Point
OVERVIEW
The ZQ-POESG-8-7 Power Source Convenient switch combines an small-high efficiency
8-port
10/100 /1000Mbps switch with 7 PoE port .The ZQ-POESG-8-7 PoE switch use
an external18VDC to 57VDC power adaptor. All 7 PoE Ethernet ports can provide 30W
power cables.The ZQ-POESG-8-7 PoE t allow for data and power to be transmitted over
a single
Ethernet twisted-pair cable to the attached devices.The ZQ-POESG-8-7 switches
is Power SourceEquipment (PSE) and fully
compatible with Powered Devices (PD) that

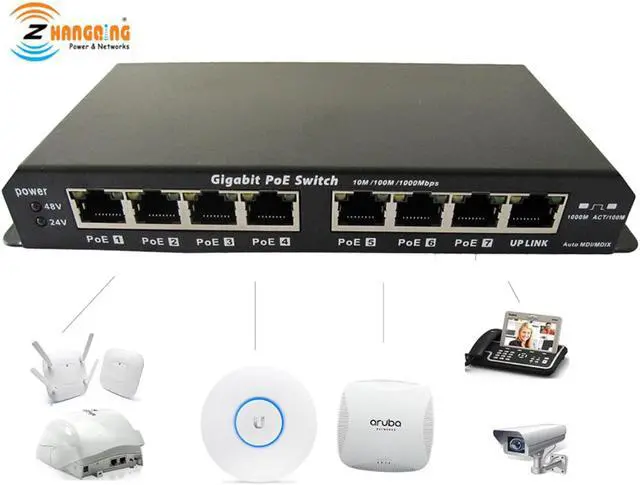

comply with the passivet PoE standard, allowing users to attach any PoE compliant device
such as wireless Access Points (APS),VOIP phone, IP camera, printerand Network
Attached Storage (NAS) to the PoE Switch without requiring additional power.
On a network.The unit is designed with home and small business users in mind and is
a cost effective solutionfor environments where AC power is not available or too costly to install.
Not including power supply and cord
FEATURES
1.
8 switch ports with 10/100/1000Mbs auto detect operation with status LED
2.
Available power supply options
             18 volts, 24 volts, 48 volts 56 volts
30 watts, 60 watts, 120 watts
100 to 240 volt AC input, 50 or 60 hz high efficiency
3.
7 always on PoE outputs with either Mode A and/or Mode B
             Mode A power and data on pins 12 (-) and 36 (+)
Mode B power or pins 45 (+) and 78 (-) with data on pins 12 ,36,45 and78
4.
Dual PTC fuses on each PoE output port
            One 650 ma fuse per port for Mode A
One 650 ma fuse per port for Mode B
5.
18 volt to 56 volt operation
6.

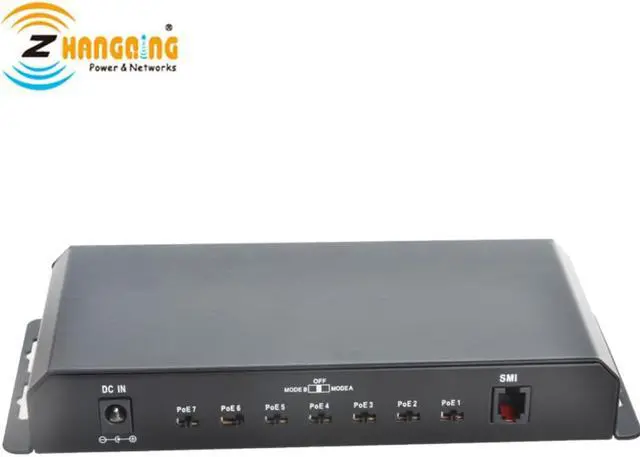

Function switch on/off Mode A/B
7.
Power supply inputs
           2.1mm power connectors, center positive
Mode A input with LED status
Mode B input with LED status
LED indicates 18/24 volt operation or 48/56 volt operation
Maximum input current per mode 2.5 amps
Mode B PoE power input from the uplink port 1 amps max
8.
Dual Power supply operation
           Redundancy - 48v 802.3af only see text
           Load balancing 48v 802.3af only see text
Mixed voltage Mode A at 48v and Mode B at 24v see text
9.
Uplink port 10/100/1000 Mbs
          No PoE voltage out
Auto detect 568 A or 568 B connections
10.
802.3af emulation ( always on, no autonegotiation)
          48 volt in either A or B modes
LED Indicator
POWER LED              INPUT Off (0-18V)
 Green (18-37V)
    Rad(38-56V
SPECIFICATIONS
Dimensions 192mm×82mm×27mm:
product show
