4Port PoE Patch Panel PoE Midspan PoE Injector including 24V 60W Power Adapter

Certification:CE,FCC,RoHS
Origin:Mainland China
Model Number:ZQPOEI004-24V 60W
PoE Method:Mode B: 4/5+7/8-
Input:100-240V 50-60HZ
Function:Add PoE function to any switch or router
DC plug:2.1*5.5mm
Application:24V for Access point, 48V for IP Camera
Output:18-56V
Type:4 port midspan PoE injector
Ethernet rate:10/100Mbps

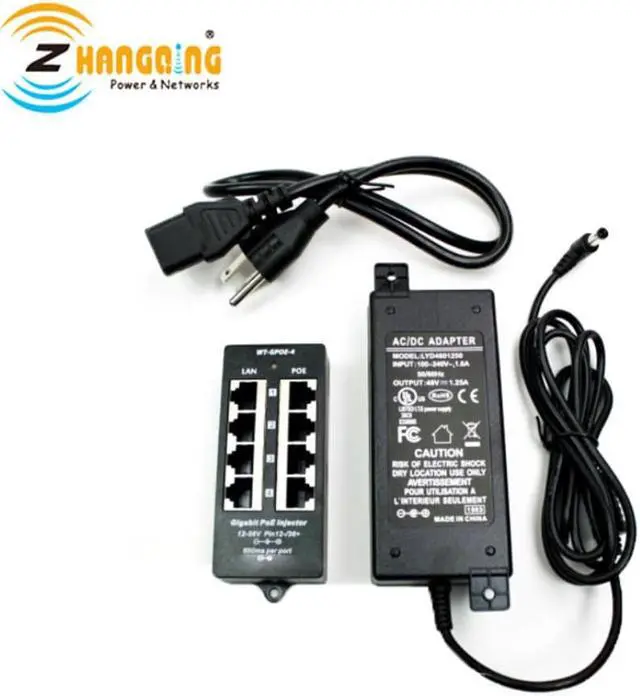

24V 60W Power Supply And 4Port PoE Patch Panel
PoE Midspan Injector
10/100, Mode B 4 Port Injector with 24 volt 60 watt power supply
Use this passive Power over Ethernet injector to power 24 volt devices like Mikrotik and Ubiquiti passive PoE WiFi access points, Ubiquiti cameras The PoE Injector takes power from the 24 volt DC power supply and adds the same voltage to your Ethernet data cable (Cat5, Cat5e, Cat6) to power your devices.
Save big on network upgrades and device installations
Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Passive PoE means versatility
. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled 802.3af, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Simple, Reliable, and Supported By Experts
We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, please contact us, we will provide the best solution and service for you.
Specifications of poe injector

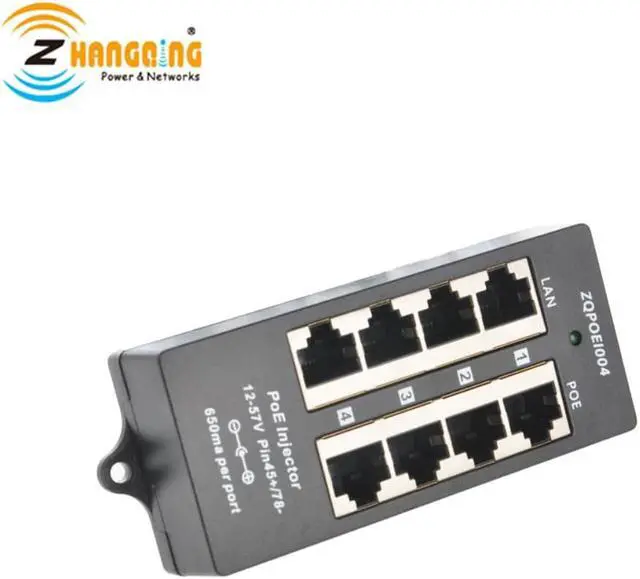

1.Panel 4 integrating passive POE injector suitable for powering up to four devices.
2.The RJ45 connectors on one side are connected Ethernet ports with no power (switch) on the
opposite side of the device used to connect power for Ethernet cable.
3.Are used to power the two unused pairs of the Ethernet cable.
4.Power couples: 4,5 (positive pole) / 7,8 (negative pole)
Applications of poe injector
(1)Remote routers, access points and bridges
(2)Remote networking equipment
(3)SOHO equipment
(4)IP phone systems etc.
forhotel, school, restaurant, hospital, mall etc
This Power over Ethernet module/panel allows you to power up to 4 devices remotely over
ethernet wiring up to 328 ft (100 meters) away..
Overview
The ZQPOEI004 passive Poe Injector is used 10/100M Ethernet, The LAN

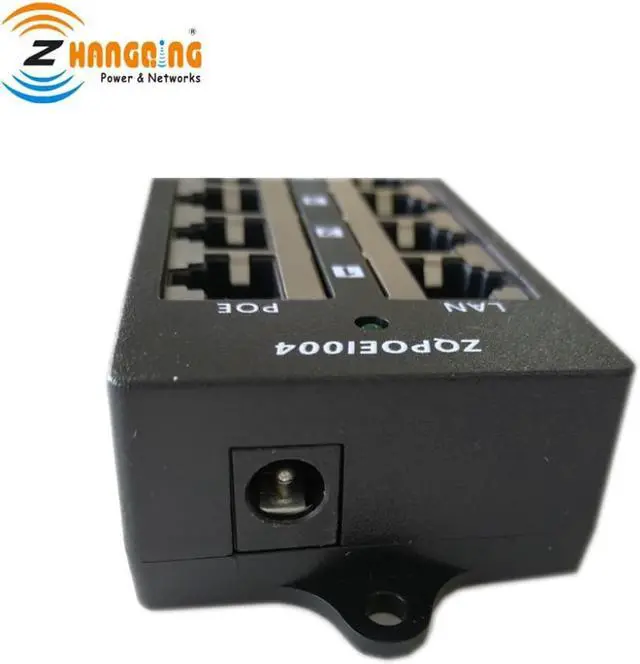

Rj45 sockets is form Switch/PC/HUB 1/2&3/6&4/5&7/8 are transmitting data. The POE Rj45(power+data) socket is to deliver data and power . Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+)&7/8(-)for power. Passive PoE is composed of 4 set of Rj45 sockets and one 60V DC power jack.Input power requests 90W or more Ac To Dc Power converter.The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm.
   The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 4 x 10W = 40W for 4 port Passive PoE panel .
Product Show
