Gigabit PoE Injector 802.3af/at PoE Panel 6 Port 1000Mbps Mode A&B Operation For Networking Devices

Certification:CE,FCC
Origin:Mainland China
Plug Type:None
Model Number:ZQPOEGI006
Item Type:POE Injector
PoE Method:Mode A and Mode B Compliant
Type:6 Port Gigabit PoE injector
Ethernet rate:10/100/1000M
Data:1/2&3/6&4/5&7/8
Function:Add POE function to any Switch or Router
PoE Standard:Passive POE, support 802.3af/at
Ethernet Cable:TIA/EIA 568 Cat. 5/5e/6/6e/7


Gigabit PoE Injector 802.3af/at PoE Panel 6 Port 1000Mbps
Mode A&B Operation For Networking Devices
Gigabit, Mode A&B 6 Port Injector without power supply
Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.
Save big on network upgrades and device installations
Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Passive PoE means versatility
. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled 802.3af, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Simple, Reliable, and Supported By Experts
We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, Please contact us, we will provide the best solution and service for you.
Features:
Use 10/100/1000M Ethernet
Flexible power(DC 18 - 57V)
Built-in LED Indicator
Use with any Ethernet switch
650ma automatic resettable fuse on each port
Supports IEEE 802.3at or 802.3af devices
--Mode A operation-minus on pins1/2,plus on3/6(802.3af/at)
--Mode B operation-minus on pins7/8,plus on4/5
Ideal for IP cameras,VOIP phone,WiFi Access Points.
The 6 port Gigabit PoE Panel is used 10/100/1000M Ethernet,The RJ45 (LAN)sockets is for
LAN/Switch/PC  Pin1/2&3/6&4/5&7/8 are transmitting data.The RJ45(POE) socket
is to deliver data and power :
Mode A--1/2&3/6
Mode B--4/5&7/8.
Passive POE iscomposed of 6 set of Rj45 socketsand two 60V DC power jack.
Input power requests 60W or more ac/dc power.Standard power connctor- 2.1mm x 5.5mm.
Each socket provides protection against short overflow (current protection
650mA). The sum total output power must be lower than the MAX input power
of AC-DCpower converter. If not, it is necessary to consider taking higher
power converter. Therecommended formula for AC-DC power converter is
10W per RJ45 set. For example, 6 x 10W = 60W for 6 port Passive PoE panel .
The configuration size of panel is 150mm(3.4U) L, 65mm(1.5U) W and 26mm(0.6U) T,
as isavailable to answer market demand and convenient to be installed directly.
LED Indicator
Power On
GREEN
Port current 0-400ma
GREEN
Port current >400ma
YELLOW
Specification :
HOW TO ORDER

GPOE-6AB                          6 Port Gigabit POE Panel
(MODE A:1/2-&3/6+
 MODE B:4/5+&7/8-)

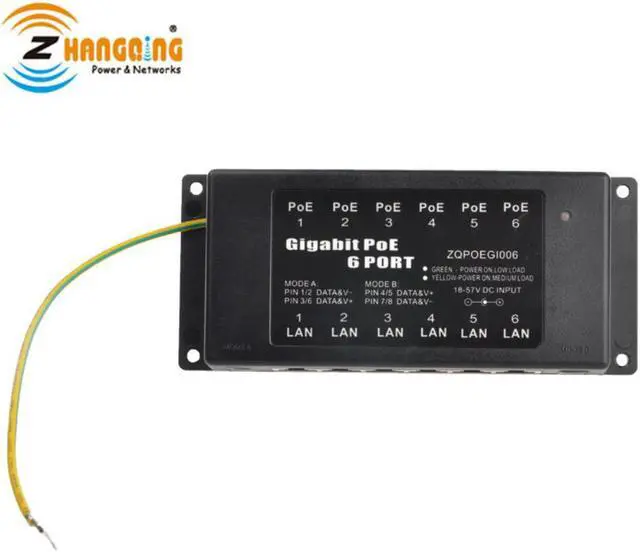

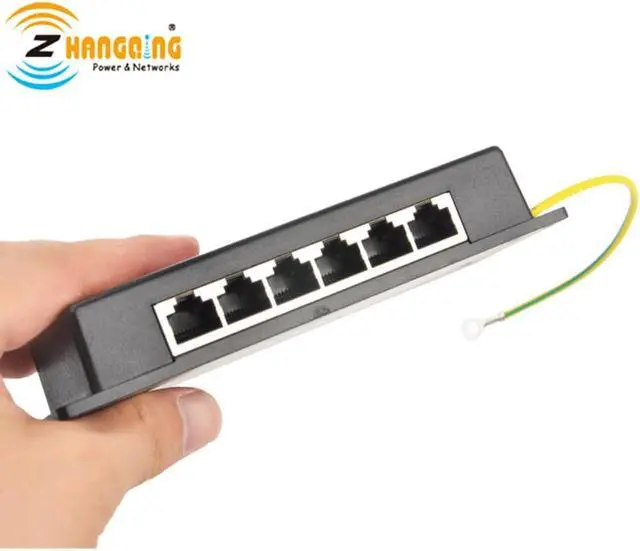

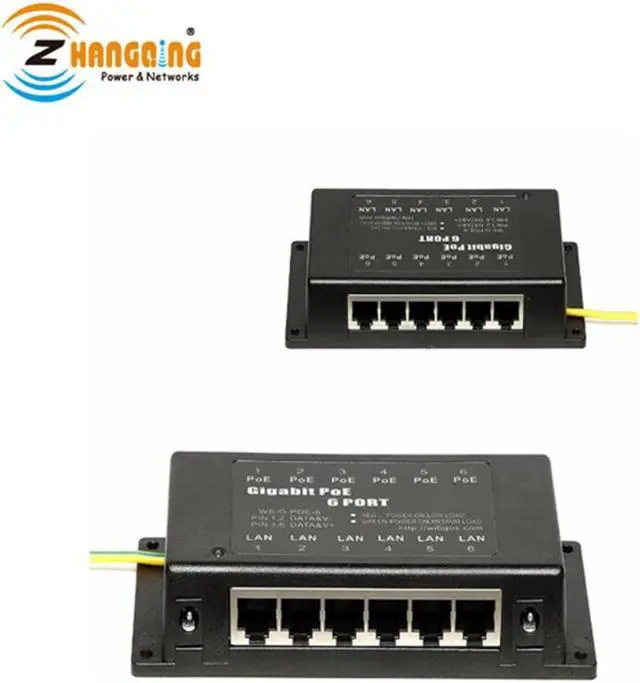

product show:
