24V 48V 100Mbps PoE Switch Manufacture 7 Port PoE Network Switch For VOIP Phone IP Camera Including 24V 120W Power Supply

Certification:CE,FCC,RoHS
Origin:Mainland China
Model Number:ZQPOES007-24V 120W
Place of Origin:GuangDong, China
PoE Standard:Passive, supporting 802.3af(48v)802.3at(56v)
Output:12V~56V (12V 24V 48V 56V)
Transmission rate:10/100M
Type:7+1 PoE Switch
Color:Black
Operating Humidity:10%-80%RH
Warranty:2 years

24V 48V PoE Switch Manufacture 7 Port PoE Network Switch For VOIP Phone IP Camera Including 24V 120W Power Supply

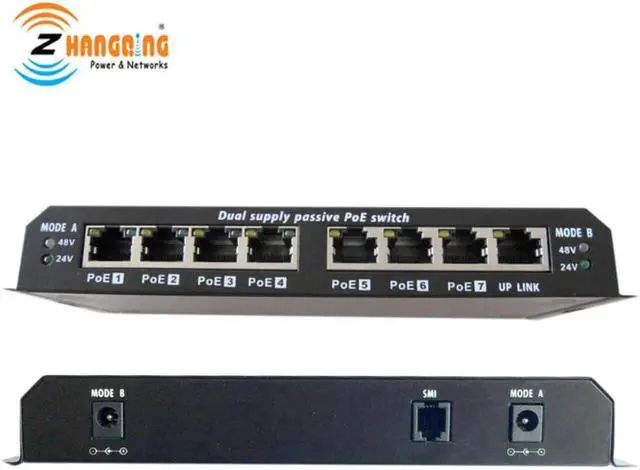

7+1 Port PoE Switch
Model No : ZQPOES007 + 24V 120W power supply
1 port of UPLINK and 7 ports of PoE output, unmanged
PoE method: Passive PoE Mode A and Mode B
Usage: work with 24V power supply for Passive PoE
           work with 48V power supply for 802.3af/at PoE
Rate : 10/100M

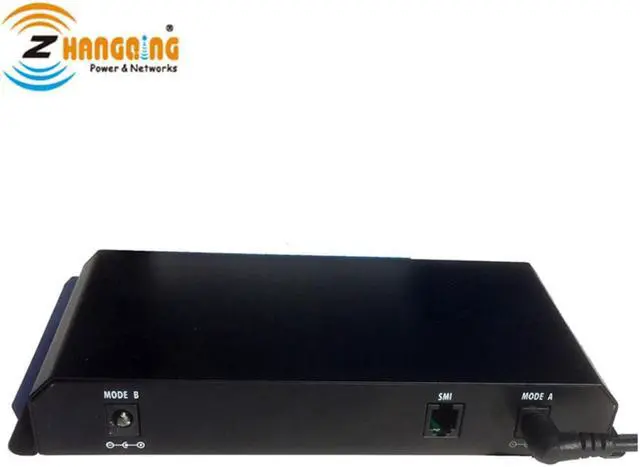

Power Input : 2pcs of 2.1*5.5mm female DC socket
                     2pcs can be put in a rack mount
Application :
IP Phone
Wireless Access Point (WiFi AP)
Wimax Basesation
IP Camera
Door Security
POS
Netbook/Mini Notebook
Specification:
Picture Display:
Overview:
This ZQPOES007 Power Source Convenient switch combines an small-high efficiency 8-port 10/100 Mbps switch with
7 PoE port .The
ZQPOES007
PoE switch use an external18VDC to 57VDC power adaptor. All 7 PoE Ethernet ports can
provide 30W power as well as 10/100M data transmission over standard readily available Cat 5/ 5e / 6 cables.
This
ZQPOES007
PoE t allow for data and power to be transmitted over a single Ethernet twisted-pair cable to the attached
devices.The
ZQPOES007
switches is Power Source Equipment (PSE) and fully compatible with Powered Devices (PD) that
comply with the passivet PoE standard, allowing users to attach any PoE compliant device such as wireless Access Points (APS),
VOIP phone, IP camera, printer and Network Attached Storage (NAS) to the PoE Switch without requiring additional power.
On a network. The unit is designed with home and small business users in mind and is a cost effective solution for environments
where AC power is not available or too costly to install.
