Active input POE+ USBC Deliver Power& Data Two USBC Function Adapter for Conference Tablet Surface Go, IPAD Pro, Type-C device

Certification:CE,FCC,RoHS
Origin:Mainland China
Plug Type:None
Model Number:AT-USB-C-JB
Item Type:POE Spliter
Type:USB-C/ Type-C Driver power+ data
Data Rate:10/100Mbps
PoE Standard:IEEE 802.3af or 802.3at
Output:5V 2.6A/ 9V 1.78A/ 12V 1.35A/ 15V 1.38A/ 20V 1.15A
Input:Up to 57V, Active demands
Weight:0.2kg/pc
Color:GREY
Warranty:2 years

Active input POE+ USB-C Deliver Power& Data With Two USBC Function In Euro Box for Tablet Surface Go, IPAD Pro, Type-C device
When you received the parcel, for this Version, please connect the PoE Switch first( must active), then connect the IPAD , This step is important . thank you
PoE to USB-C-PD Power + Data  (5V/2.6A, 9V/1.78A 12V/1.35A, 15V/1.38A, 20V, 1.15A)
without USB-C cable
This device provides a powerful solution for delivering power and wired Ethernet data to a USB-C
device over328ft of network cable.This splitter allows power to be carried on CAT-5e or CAT-6
network cables using either 802.3at standard or 56 volt passive PoE. 802.3af switches can also be used but only 12 watts can be delivered without overload. 10/100/1000 or 10/100 switches can be used the device will negotiate at 10/100 full duplex rates.
Intended for use with any 802.3at PoE switch this active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution.
The PoE switch supplies 48 or 56 volts DC at the source location.
The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then
carried with 90% less loss overthe Ethernet cable from the source, the 5v converter at the remote
end allows you to extend the charge distance for this applicationup to 328ft or 100 meters.
PRODUCT DETAILS
-Delivers Both USB Type C Power only or Power and Data on one cable
-10/100Mbps Data Capability

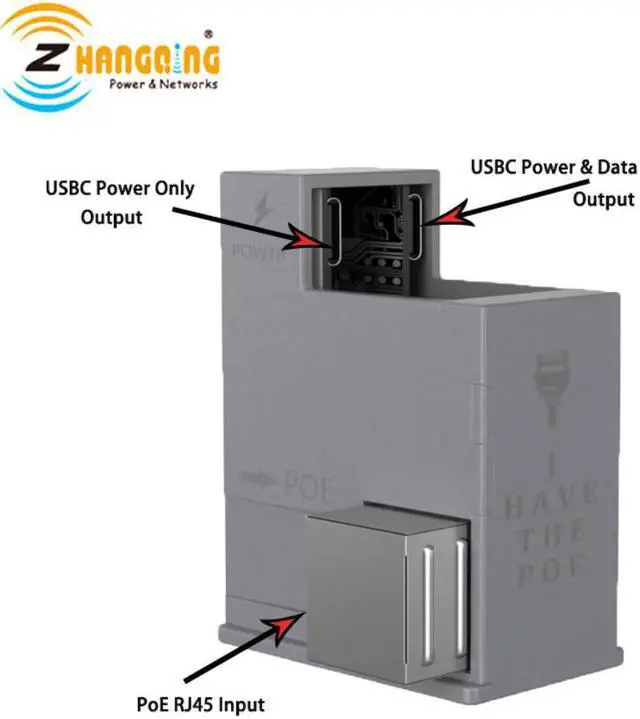

-Two USB-C Port (One for power, one for power and data) can't use at the same time
-23 Watt Output - (
5V/2.6A, 9V/1.78A 12V/1.35A, 15V/1.38A, 20V, 1.15A
)
-Compatible with IEEE 802.3at PoE+ Switch or Injector
PRODUCT SPECIFICATIONS
Data and Power Source: RJ45 Female connector
DC Power Output: USB-C Connectors (Power only or Power&Data)
Data: 10/100Mbps RJ45 Ethernet to USB-C Bridge inside
Data + Power input Pins:1&2 and 3&6 either polarity / 4&5 plus and7&8 minus
( 802.3at mode A or mode B, Class 4)
Input Voltage Max : Up to 57V
Input Current at 48V: 600 mA input delivers 25 watts
Output Voltages: Autonegotiate ( see table)
Internal Power usage:750 mW
Operating Temperature: 0°C ~ 50°C
Size: 57 x 42 x 34 mm
Isolation: Not isolated. Current may flow between the USBC
connector ground and the PoE switch ground.

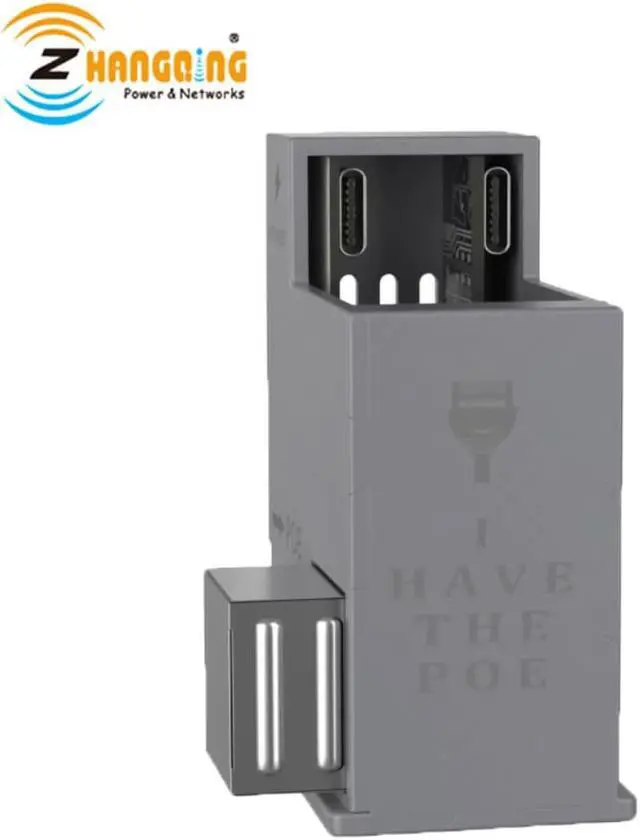

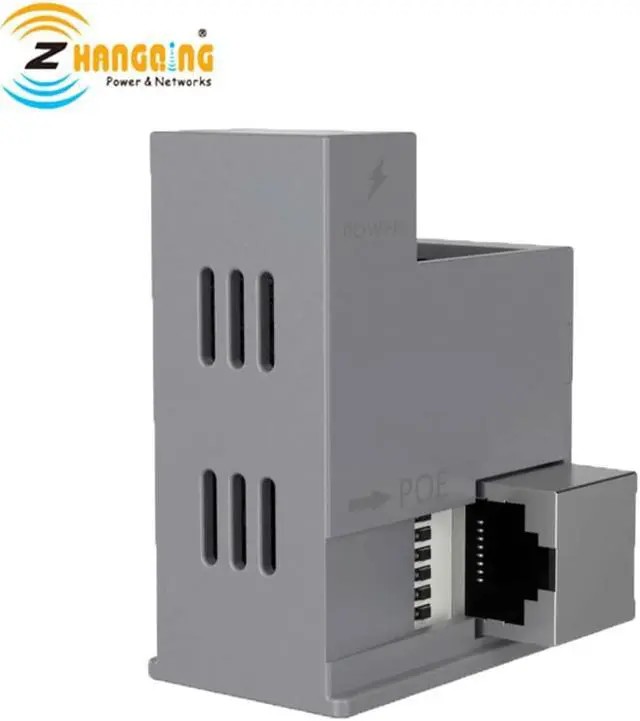

Product Photo
Simple usage:
Step a) connect your PoE switch to an internet router.
Step b) use an Ethernet cable to connect the RJ45 female to your PoE
switch up to 100 meter distance.
Step c) connect the USB-C output via a USB-C high current rated cable,
toyour device.
Step d) run speed test.
