PoE USB-C to Lighnting Charger transfer Power & Data with Lighting Cable for Ipad Phone Tablet USBC Device

Certification:CE,FCC,RoHS
Origin:Mainland China
Model Number:GAT-USB-C-PD
Item Type:Cables
Type:USB-C/ Type-C Driver power+ data
Data Rate:10/100Mbps
PoE Standard:IEEE 802.3af or 802.3at
Model number:AT-USB-C-PD
Output:5V 3A/ 9V 2.4A/ 12V 2A/ 15V 1.7A/ 20V 1.3A
Input:48V, 600 mA input delivers 25 watts
Certificate:CE FCC
Warranty:2 years

PoE USB-C to Lighnting Charger  transfer Power & Data with
Lighting Cable for Ipad  Phone Tablet USBC Device
PoE to USB-C-PD Power + Data  (5V/3A, 9V/2.4A 12V/2A, 15V/1.7A, 20V, 1.2A)

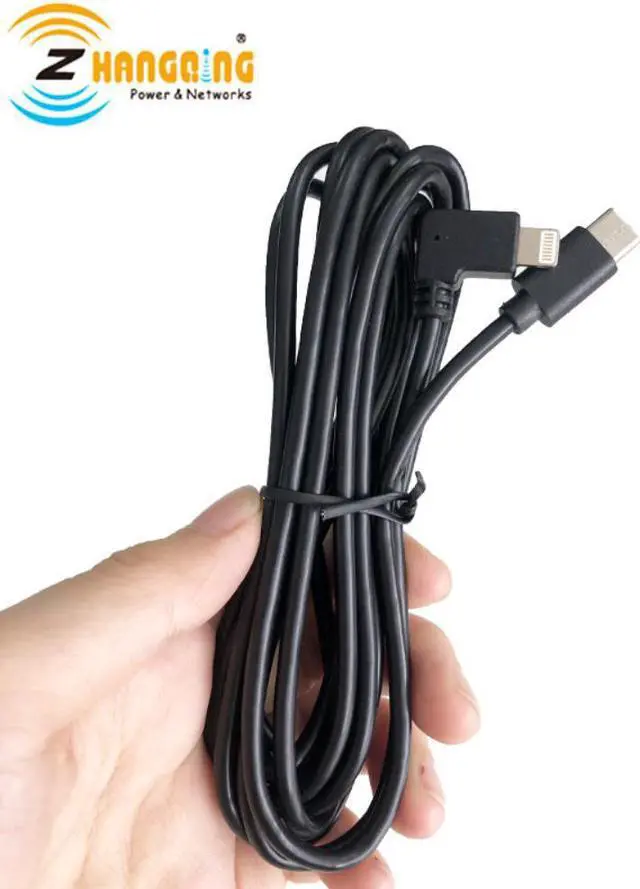

Include USB-C to Lightning cable
This device provides a powerful solution for delivering power and wired Ethernet data to a USB-C
device over328ft of network cable.This splitter allows power to be carried on CAT-5e or CAT-6
network cables using either802.3at standard or 56 volt passive PoE. 802.3af switches can also be used but only 12 watts can be deliveredwithout overload. 10/100/1000 or 10/100 switches can be used the device will negotiate at 10/100 full duplex rates.
Intended for use with any 802.3at PoE switch this active PoE solution negotiates with the switch
toactivate power and provide it tothe client device. It is a compact and cost effective power solution.
The PoE switch supplies 48 or 56 volts DC at the source location.
The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss overthe Ethernet cable from the source, the 5v converter at the remote end allows you to extend the charge distance for this applicationup to 328ft or 100 meters.
PRODUCT DETAILS
-Delivers Both USB Type C Power and 100Mbps Data on one cable
-10/100Mbps Data Capability
-25 Watt Output - (5v/3A, 9V/2.4A, 12v,2A, 15V,1.5A, 20V,1.25A)
-Compatible with IEEE 802.3at PoE+ Switch or Injector
- include one USB-C to Lightning Cable
PRODUCT SPECIFICATIONS
Connector Types: USB-C (Female) 1x RJ45 Input (Female) 1x RJ45
Output(Female)
Data Rate: 10/100 (RJ45 Only)
Dimensions: 4.5x2x1 Inches
Input Voltage Range: 44-56 Volts (IEEE 802.3at Compliant)
LEDs Per Port: Green (POE) / Yellow (USB-C)
Max Power: 25 Watts
Operating Temperature: -10 to 60C
Operating Humidity: 5% to 90%
Output Voltage: 5v,3A; 9v,2.4A; 12v,2A; 15V,1.5A; 20V,1.25A
POE Method: IEEE 802.3at / PoE+ / Passive 30 watt
POE Mode/Pinout: Mode A (1,2 3,6) / Mode B (4,5 7,8)

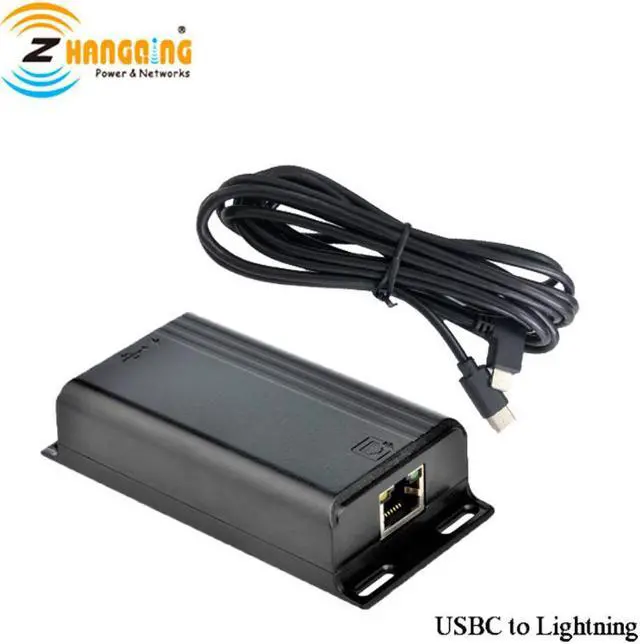

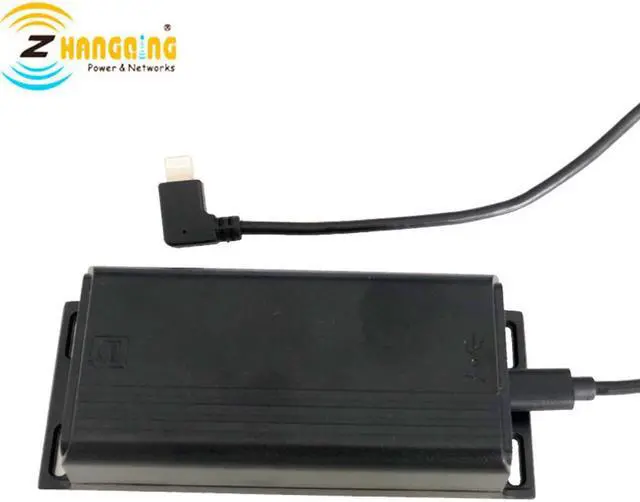

Product Photo
Simple usage:
Step a) connect your PoE switch to an internet router.
Step b) use an Ethernet cable to connect the RJ45 female to your PoE
switch up to 100 meter distance.
Step c) connect the USB-C output via a USB-C high current rated cable,
toyour device.
Step d) run speed test.
