GPOE-4A Gigabit Passive PoE 4 Port PoE Injector for 802.3af Devices, Includes 48 Volt 60W Power Supply for PoE Camera

Certification:CE,FCC
Origin:Mainland China
Plug Type:US,EU,UK,AU
Model Number:ZQPOEGI004A
Item Type:POE Injector
PoE Method:Mode A:1/2- 3/6+
Product Name:4 Port Gigabit PoE injector
Function:Add PoE function to any switch or router
DC plug:2.1*5.5mm
Application:24V for Access point, 48V for IP Camera
Type:4 port midspan PoE injector
Ethernet rate:10/100/1000M


GPOE-4A Gigabit Passive PoE 4 Port PoE Injector for 802.3af Devices,Includes 48 Volt 60W Power Supply For PoE Camera

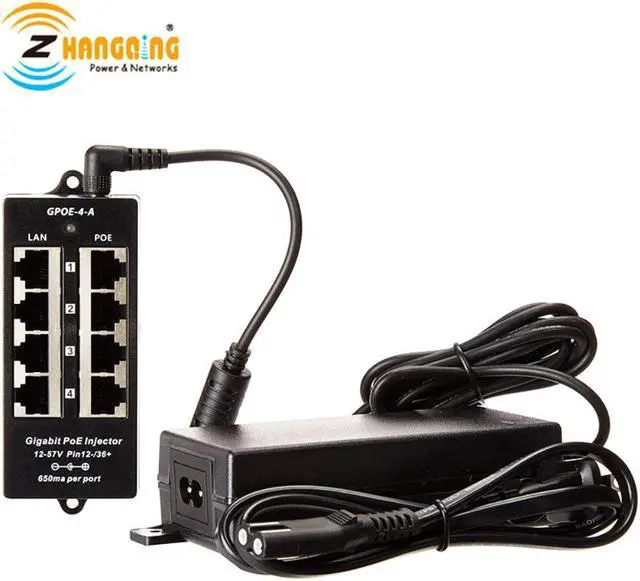

Gigabit, Mode A 4 Port Injector with 48V 60W power supply
Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.
Save big on network upgrades and device installations
Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Passive PoE means versatility
. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled 802.3af, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Specification
· 4 Port Gigabit Ethernet Injector
4 Shielded RJ-45 LAN
4 Shielded RJ-45 LAN+POE
10/100/1000 data rates
· Injector: 115mm x 45mm x 25mm
· Wall mount - stackable
· 1000 ma automatic resettable fuse on each port
· Same voltage to all ports power is shared as needed by the devices
· Use with any Ethernet switch
PoE or non-PoE switches
· Standard power connector
- 2.1mm x 5.5mm
· LED status indicator
- Green normal voltage
- Red for reverse polarity
· Operating Temperature
0 to 65 deg C
· Mode A operation
- pins 1,2 (-)
- pins 3,6 (+)
· Power is always on
- no autonegotiation
Power Input
Device Spec
Mode A - DC Input
RJ45 pins 3,6+ 1,2-
 Overview
The ZQPOEGI004 passive Poe Injector is used 10/100/1000M Ethernet, The LAN
Rj45 sockets is form Switch/PC/HUB 1/2&3/6&4/5&7/8 are transmitting data. The POE Rj45(power+data) socket is to deliver data and power . Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 1/2(-)&3/6(+)for power. Passive PoE is composed of 4 set of Rj45 sockets and one 60V DC power jack.Input power requests 90W or more Ac To Dc Power converter.The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm.
   The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 4 x 10W = 40W for 4 port Passive PoE panel .
Applications of poe injector
(1)Remote routers, access points and bridges
(2)Remote networking equipment
(3)SOHO equipment
(4)IP phone systems etc.
forhotel, school, restaurant, hospital, mall etc
This Power over Ethernet module/panel allows you to power up to 4 devices remotely over
ethernet wiring up to 328 ft (100 meters) away..

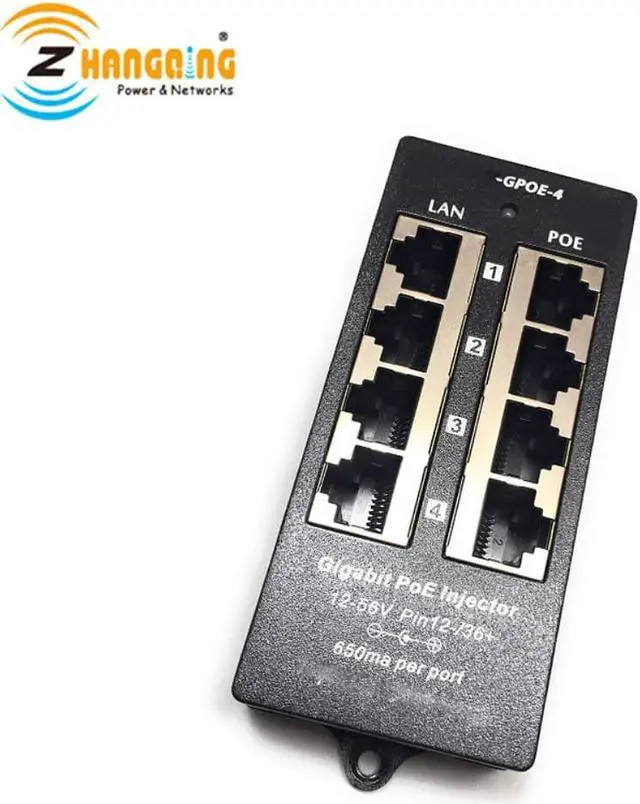

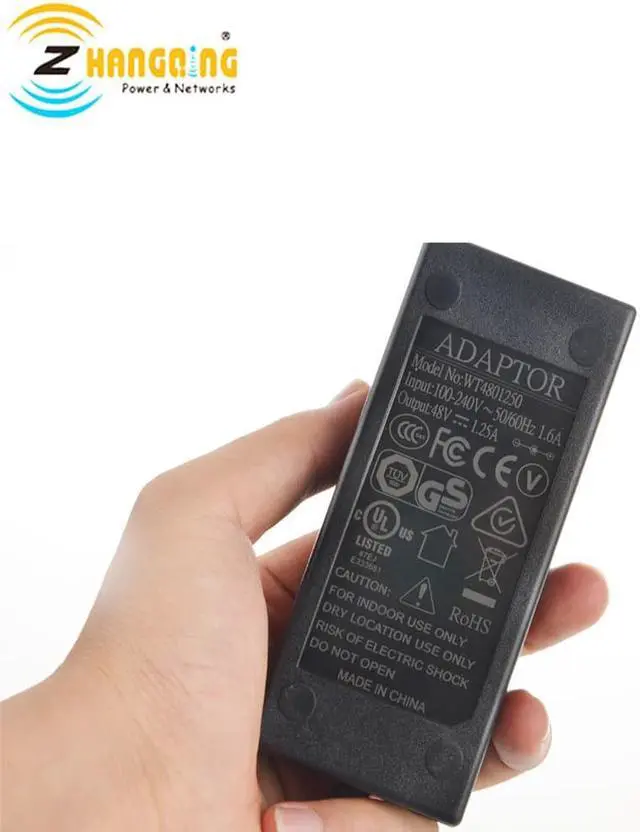

Product Show
