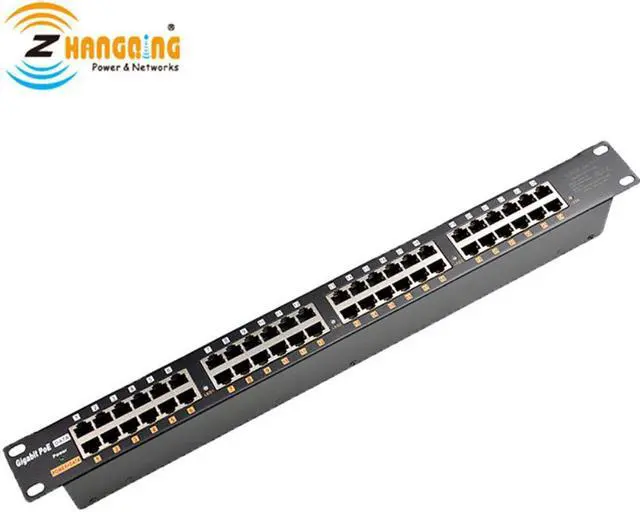

Gigabit 24 Port PoE Injector LED Indicator Patch Panel with load balancing work for IP Camera, MikroTik, Ubiquiti, 802.3af POE

Certification:CE,FCC
Origin:Mainland China
Model Number:GPOE-24B
Name:24port Gigabit POE Injector
Data rate:10/100/1000Mbps
PoE standard:Passive POE, but support 802.3af/at
Power pins:Mode B: 4,5V+, 7,8V-
Usage:IP camera, IP phone, 24V POE WiFi AP, etc
Dimension:1U 19'' Rack-mountable
Function:with Load Balace
Weight:1.2kg/pc
Certificates:CE& FCC& RoHS


Gigabit 24 Port PoE Injector LED Indicator Patch Panel with load
balancing work for IP Camera, MikroTik, Ubiquiti, 802.3af POE
Gigabit, Mode B , Rack Mount 24 Port PoE Injector
Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.
Save big on network upgrades and device installations
Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Passive PoE means versatility
. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled 802.3af, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Specification
24 Port Gigabit Ethernet Injector
24 Shielded RJ-45 LAN
24 Shielded RJ-45 LAN+POE
all 4 data pairs active for gigabit data rates
shared data and power via transformer isolated
power injection on mode B pairs
Dual power supply inputs up to 150 watt each
Use either power input if two supplies are used, each half receives power from that
 side only
Load Balancing by Relay for low loss and high reliability
1U high standard rack mount (1.75 x 19 x 2 inches)
650 ma automatic resettable fuse on each port
Power is shared as needed by the devices
Use with any Ethernet switch passes all management info transparently
4 LED status indicators - 1 master power GREEN LED
for each group of 4 POE sockets:
Many popular devices like Ubiquiti use this method to centralize the power source - you can go for 328 ft with a 24v supply to a typical Access Point.
Connect the power supply you need (24v for Ubiquiti, 48v for 802.3at or 802.3af) and reduce the mess of cables. Reboot all 24 devices from one central location.

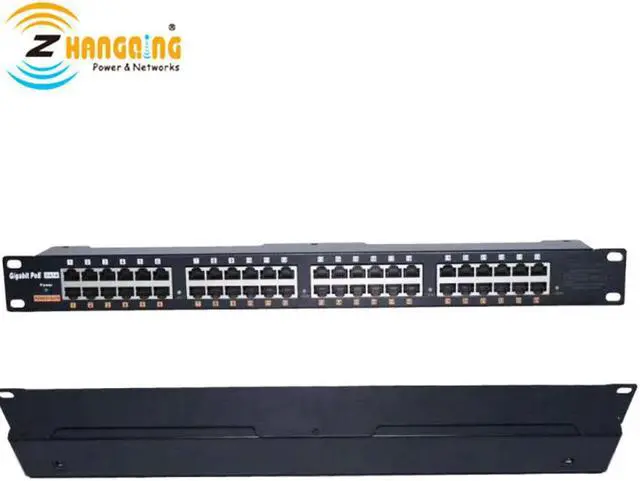

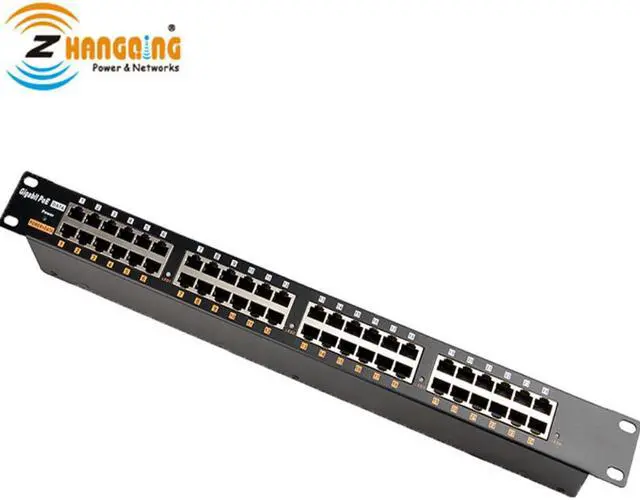

Product Show :
Application
Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3af or 802.3at or Passive
Power supply range 24 to 56 volts
Dual Power supply inputs (2.1mm x 5.5mm) see table below
we offer kits with power supplies
Environmental
operating temperature range 0 to 50 deg C
storage temperature range 0 to 50 deg C
relative humidity range 5 to 90% non condensing
FCC rules there are no RF emitting devices in the design
the device is PELV per NFPA standard 79, protected extra low voltage
no cooling is required, no fans. Quiet operation
