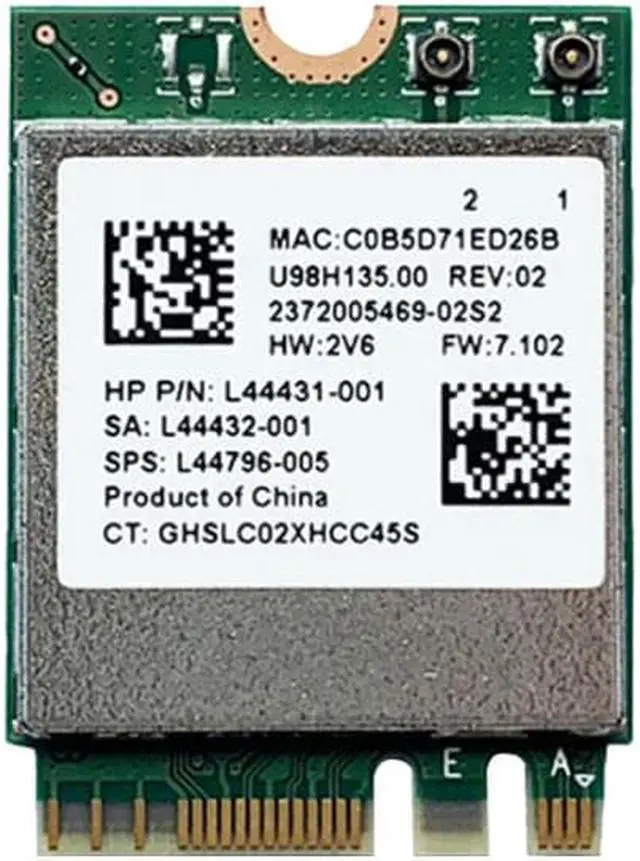

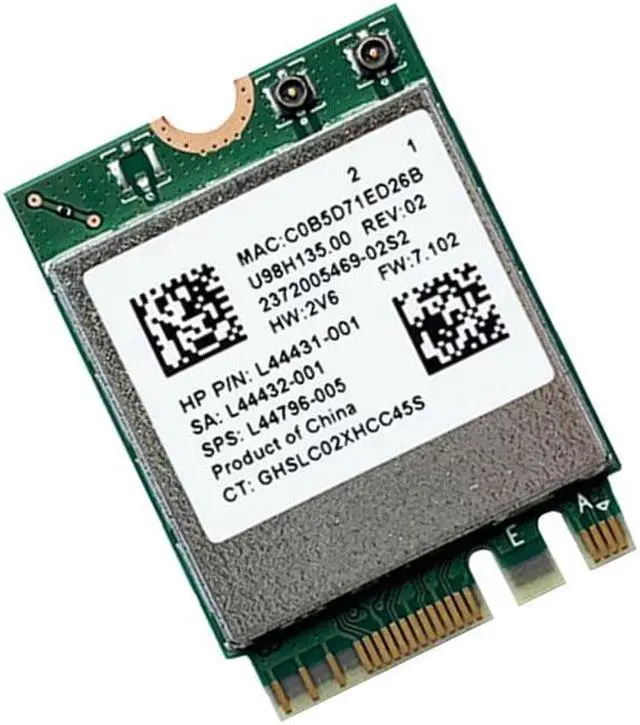

Wirecard rtl8822ce dual band 802.11ac 867Mbps m.2 wifi card mudule + bluetooth 5.0 network card

Transmission Rate:867Mbps
Certification:CE
Origin:Mainland China
Kind:Internal
Type:Wireless
Lan Transmission Rate:1000M Ethernet
Application:Laptop
Wireless Protocol:802.11ac
Adapter Socket:M2
Interface Type:NGFF
Wi-Fi Supported Frequency:2.4G & 5G
Transmission Speed:1200 Mbps
Applicable Network Type:Fast Ethernet
Model Number:RTL8822CE

RTL8822CE Dual Band 802.11ac M.2 WIFI Card WIFI Mudule Card + Bluetooth 5.0 Network Card
802.11ac Wave 2 MU-MIMO compliant, WiFi + Bluetooth 5.0, M.2 module (WiFi 5), RTL8822CE, 2T2R
Chipset: Realtek RTL8822CE
Antenna: 2 IPEX MHF4, 2T2R connectors
PCIe interface: WLAN USB; USB Bluetooth: Bluetooth
Up to 18dBm output power
Support: Windows 10 Linux Android
RTL8822CE is an 802.11ac / a / b / g / n / Dual-band WiFi + Bluetooth + M.2 (key A E) (WiFi module 5) based on Realtek RTL8822CE chipset supports multiple drivers (Android / Windows / Linux) for various platforms. This module supports MU-MIMO two 2.4GHz or 5GHz dual band running steams and incorporates the latest Bluetooth 5.0, data rate up to 867Mbps in ac mode. The RTL8822CE is designed by the M.2 2230 slot type form factor.
The RTL8822CE is utilizing a highly integrated MIMO (Multiple Inputs, Multiple Output) Local Area Network (WLAN) RTL8822CE solution for users to enjoy high digital content through the latest wireless technology without using cables or wires. RTL8822CE combines a WLAN MAC, a WLAN baseband capable of 2T2R and RF on a single chip. The RTL8822CE module enables a compact, high-performance, cost-effective, low-power solution that easily fits into the key PCI Express and USB M.2 2230 AE module, which is incorporated with advanced security encryption WEP, WPA, WPA2, WPS, WPA3 and 802.1x, it will prevent user devices from attacking malicious attacks.
Specification
Standard
Wi-Fi IEEE 802 11ac / a / b / g / n
Realtek RTL8822CE Chipset
Host interface
Wireless network (WLAN): PCIe
RADIO
Antenna 2 x IPEX MHF4 connectors
Operating frequency 802 11ac / a / b / g / n ISM band
2.412GHz ~ 2.484GHz
5.150GHz ~ 5.850GHz
* Subject to local regulations
Modulations
802.11b DSSS (DBPSK ... DQPSK ... CCK)
802.11g OFDM (BPSK ... QPSK ... 16-QAM ... 64-QAM)
802.11n OFDM (BPSK ... QPSK ... 16-QAM ... 64-QAM)
802.11a OFDM (BPSK ... QPSK ... 16-QAM ... 64-QAM)
802.11ac OFDM (BPSK ... QPSK ... 16-QAM ... 64-QAM ... 256-QAM)
Power and sensitivity
WiFi-TX power (± 2dBm) sensitivity-RX
11b @ 11Mbps 18dBm -85dBm
11g @ 54Mbps 17dBm -74dBm
11gn HT20 @ MCS 7 16dBm -70dBm
11gn HT40 @ MCS 7 16dBm -67dBm
11a @ 54Mbps 17dBm -68dBm
11an HT20 @ MCS 7 16dBm -67dBm
11an HT40 @ MCS 7 16dBm -64dBm
11ac VHT80 @ MCS 9 14dBm -54dBm
Energy consumption
Continue TX 606mA
Continue RX 302mA
Environment
DC working voltage 3.3V
Temperature range 0 ~ 70 ° C (operation) -40 ~ 80 ° C (storage)
Humidity (non-condensing) 5 ~ 90% (operation) 5 ~ 90% (storage)
Size
Dimension (MM) 30mm (± 0.15mm) x 22mm (± 0.15mm) x 2.0mm (± 0.15mm)
Weight 2.5g
SOFTWARE
Windows 10 driver
Linux
Android
64/128-bit security WEP WPA ... WPA2 ... WPA3 ... 802.1x
