Dual DC Power Uninterrupted Failover For Backup Power Max Current 8Amps Max Volt 60V Accepts Power from Two Power Suppliers

Certification:CE,FCC,RoHS
Origin:Mainland China
Model Number:Failover
color:black
Input Voltage range:10V-60V DC
Connector:2.1*5.5 Female
Dimension:76*29*22mm
Warranty:1years
OEM:yes
place of origin:Guangdong, Chian
Products Status:Stock
Keywords:POE injector

Failover Dual DC Power Input For Backup Power Max Current Supports 8Amps Accepts Power from Two Power Suppliers
This device has 2 DC inputs, 2 low loss diodes, and a DC output. As long as either power supply input has power, there will be power on the output.
The output power should be expected to be the same current ( wattage ) as the
lower of the two input supplies.
Maximum voltage supports is 60 Volts.
Maximum current supported is 8 Amps.

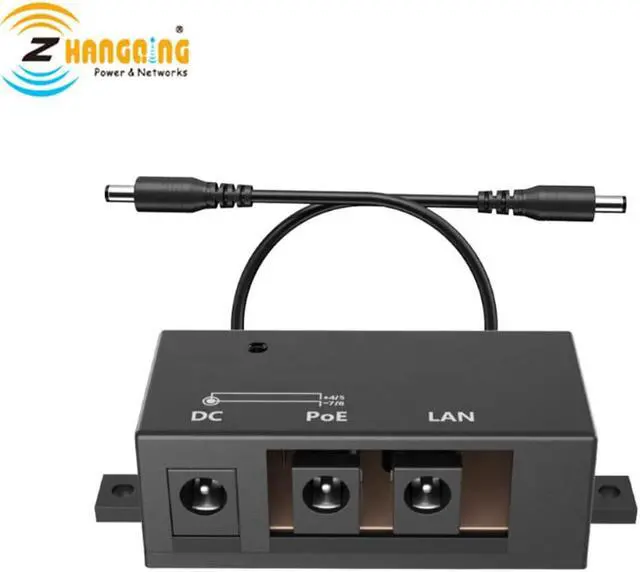

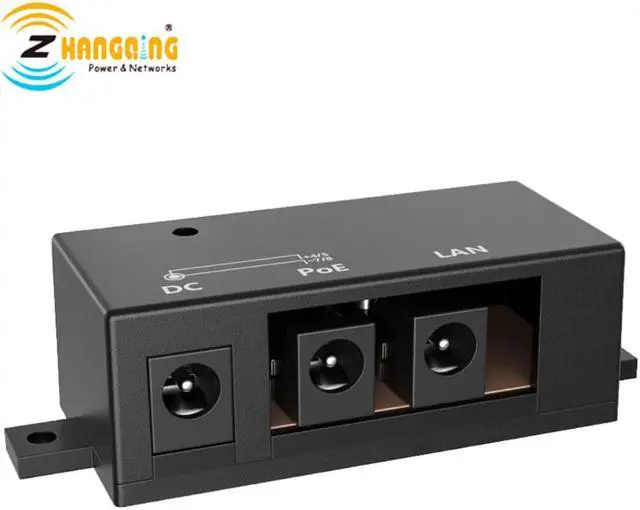

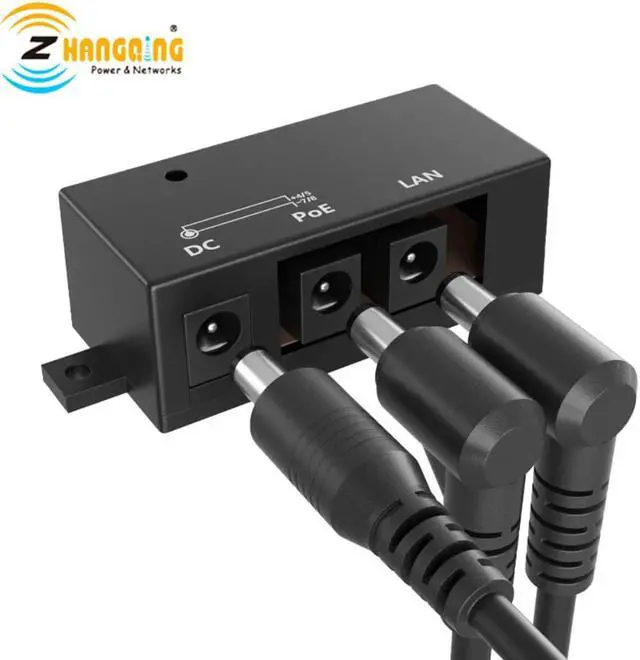

All 3 DC sockets are 2.1mm x 5.5mm
One 2.1mm to 2.1mm 30 cm long jumper cable is included.
Specification
Input Voltage Range: 10V-60V DC
Output Max Current: 8 Amps
Dimensions : 76*29*22mm
Operating Humidity: 5%-90%
PoE Standard: N/A
Power Input: 2.1mm*5.5mm Female
Insertion Loss:0.5 Volt at 2 Amps-1 Watt
Picture Show
