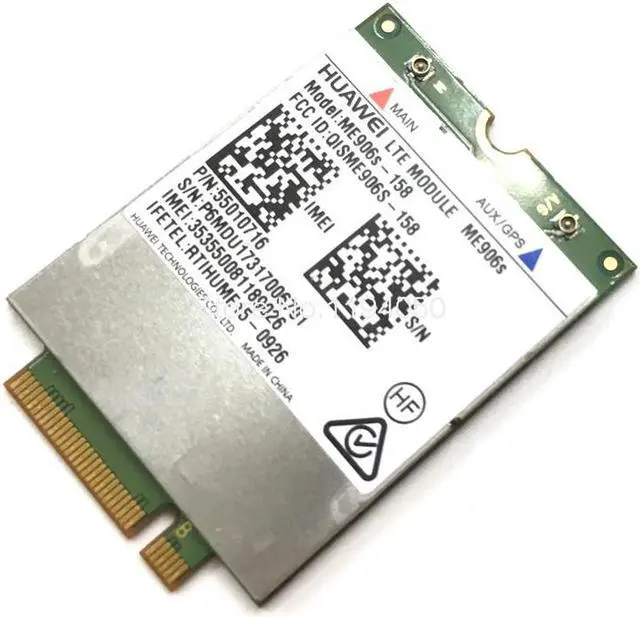

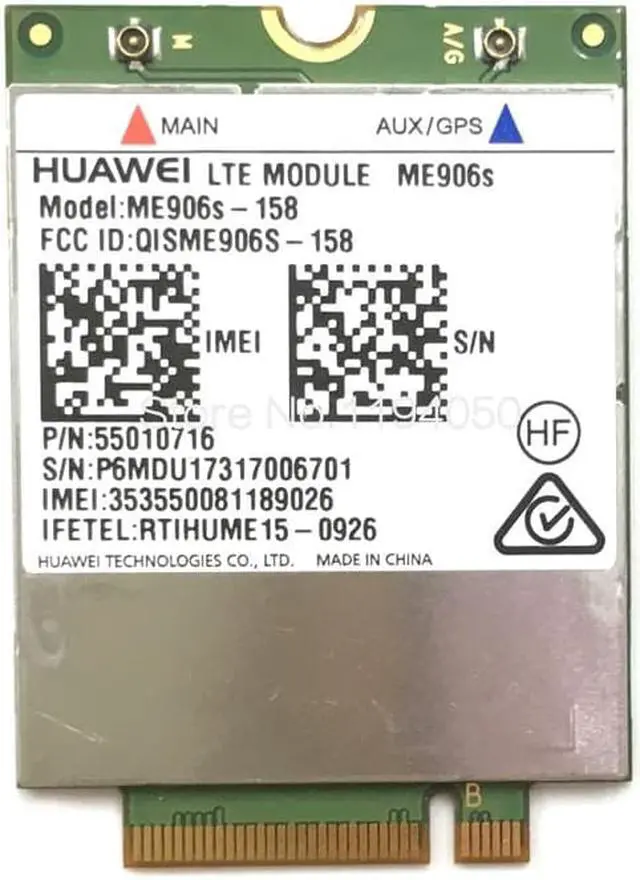

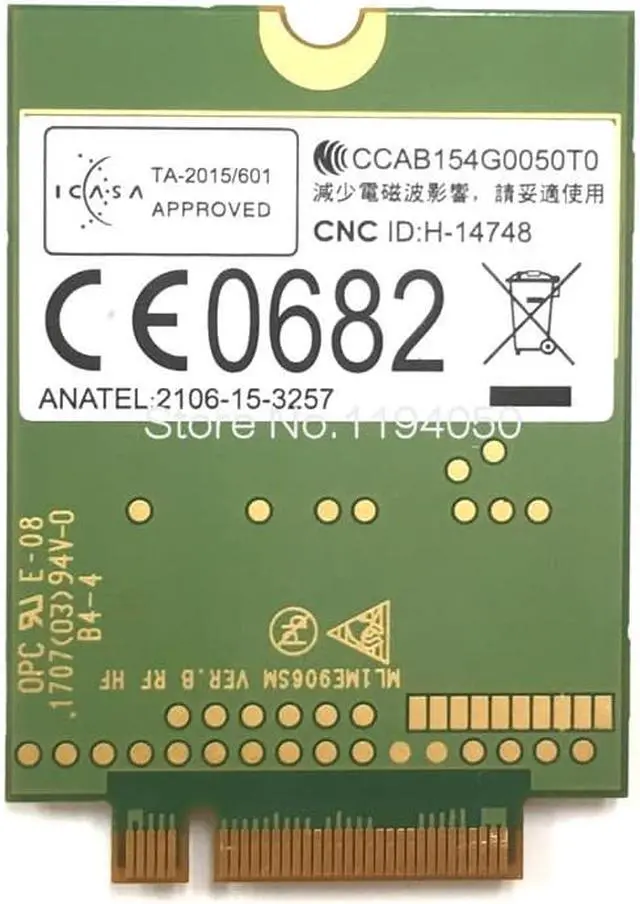

Unlock HUAWEI ME906S-158 4G LTE / HPSA + Mobile Broadband WWAN Module B1, B2, B3, B5

Model Number:ME906S-158
Certification:CE
Type:Wireless
Interface Type:PCI-X
Kind:Internal
Transmission Rate:10/100/1000Mbps
Wireless Protocol:LTE
Application:Laptop
Card Type Device:3g card

Unlocked HUAWEI ME906S-158 LTE M.2 module
note!
*Before purchase, please make sure that your telecommunications provider's network band can support the band of this device.
*Not a CD driver
*Please check to make sure your system supports this M.2!
Installation does require certain capabilities and computer-based features
Cannot run on HP and IBM / Lenovo computers
ME906s-158 is an M.2 interface LTE module embedded with Hisilicon Balong V711 chipset, supporting LTE (FDD) B1 / B2 / B3 / B5 / B7 / B8 / B20 / B28, Qual-band DC-HSPA + / HSPA + / HSPA / WCDMA B1 / B2 / B5 / B8 for APAC network coverage in Europe and Asia Pacific, low power consumption, Global Navigation Satellite System (GNSS) and European Carrier Certification, can be designed and integrated more easily and flexibly In the terminal device.
The ME906s-158 is ideal for laptops, tablets and ultrabooks.
All Huawei modules are RoHS compliant and regionally compliant.
size
Height 30mm X width 42mm X depth 2.3mm
Weighs about 6.0g
Constituent factor
75-pin M.2 / NGFF
band
LTE FDD: B1, B2, B3, B5, B7, B8, B20, B28
DC-HSPA + / HSPA + / HSPA / WCDMA: B1, B2, B5, B8
EDGE / GPRS / GSM 1900/1800/900/850 MHz
Data transfer rate
EDGE: DL 236.8 kbps / UL 236.8 kbps
WCDMA PS: DL 384 kbps / UL 384 kbps
HSPA +: DL 21.6 Mbps / UL 5.76 Mbps
DC-HSPA +: DL 42Mbps / UL 5.76 Mbps
LTE FDD: DL 150 Mbps / UL 50 Mbps @ 20M bandwidth cat4
interface
Antenna interface* 2
M.2 socket
Signal control interface
USB 2.0 interface high speed
USIM card interface
Power interface
power supply
3.135 V to 4.4 V (typ. 3.3 V)
voice
NA
GNSS: GPS independent, A-GPS, LTO, Glonass
SIM hot runner
IPV6
BodySAR
Adjustable antenna
temperature range
Normal operation: -10 ° C to 55 ° C
Extended operation: -20 ° C to 70 ° C
Certification
CE
GCF
FCC
NCC
RCM
Operator TA: Vodafone, Orange, Telstra, Spark Zealand
