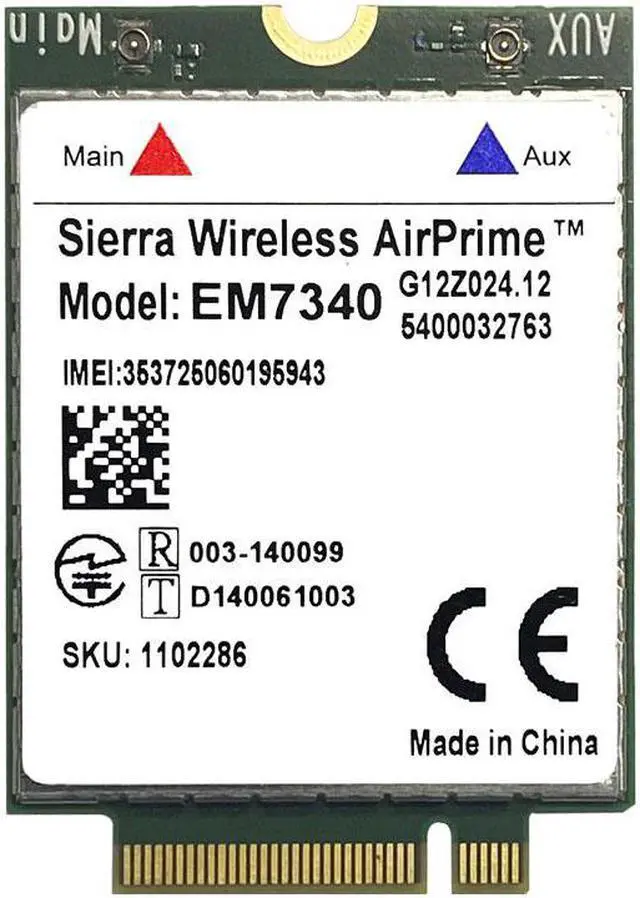

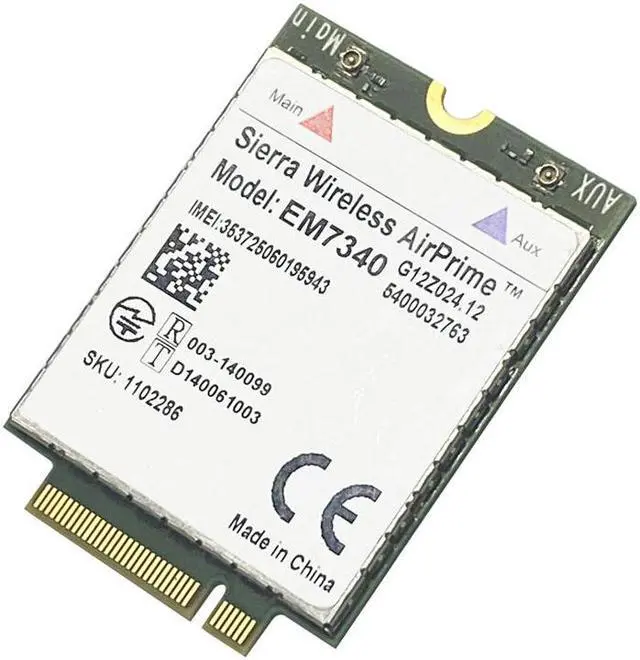

Sierra Wireless AirPrime EM7340 4G LTE Card FDD-LTE HSPA+ Speed 100 Mbps Cat3 Module Intel XMM 7160

Transmission Rate:10/100Mbps
Certification:CE,FCC
Origin:Mainland China
Kind:Internal
Type:Wireless
Wireless Protocol:802.11ac
Model Number:em7340

EM7340 is a 4G LTE Module, which supports LTE data speeds up to 100 Mbps downlink and 50 Mbps uplink and is compatible with HSPA+, but quad-band GSM/GPRS/EDGE frequencies are not supported. AirPrime EM7340 could support more LTE frequecy bands and use mainly for Japan market.
Sierra EM7345
is a brother model for Japan market, and EM7345 can support GSM/GPRS/EDGE networks.
EM7340 Wireless Module Technical Specifications:
* Model No: EM7340
* Category: 4G Module
* Form Factor: PCIe M.2
* Pins: 52-pin
* Frequency bands
- UMTS/HSPA+: B1, B6, B8, B9, B11
- LTE FDD: Band B1, B3, B8, B9, B18, B19, B21, B26
* Technologies: LTE/HSPA+
* Max Download Speed: 100 Mbps
* Max Upload Speed: 50 Mbps
* Temperature: -10 o C to 55 o C
* Certifications: JATE/TELEC
* Carriers Approved: KDDI, Docomo
* Connectors: Main, Aux/GNSS
* USB: USB2.0 high speed
* MIMO: Yes
* GPS: Standalone GPS, A-GPS, Glonass
* Contrl Options: AT Commands
* Support Window 8, Win 7
* Interfaces: USB
* Voice Support: None
* Dimensions: 42 x 30 x 2.3 mm
Package: 1X EM7340 4G Card
