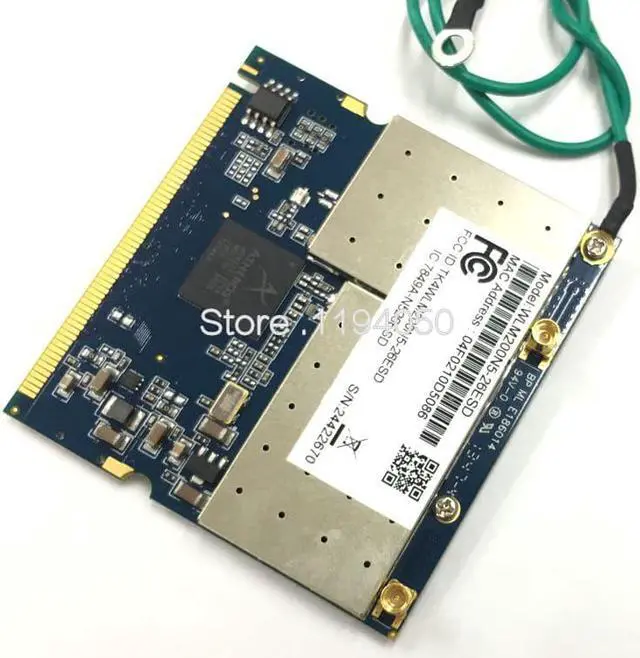

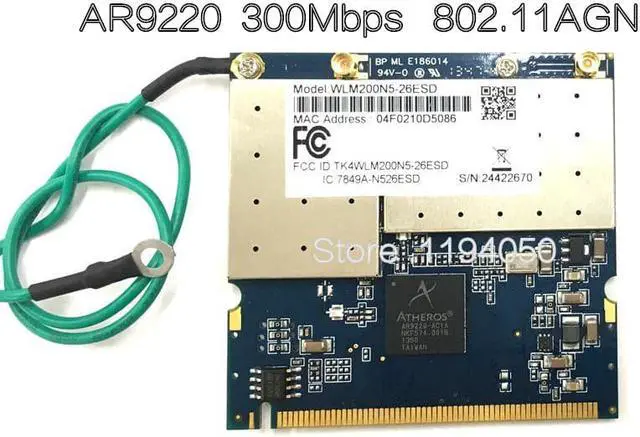

High-power miniPCI wireless network card AR9220 WLM200N5- 26ESD 2.4GHz/5GHz dual-band 300Mbps WiFi

Wi-Fi Supported Frequency:2.4G & 5G
Model Number:AR9220
Wireless Protocol:802.11n
Kind:Internal
Transmission Rate:300Mbps
Type:Wireless
Length:50cm
Applicable Network Type:Fast Ethernet
Lan Transmission Rate:Ethernet
Adapter Socket:Mini-PCI
Interface Type:Mini PCI
Application:Laptop

WLM200N5-26

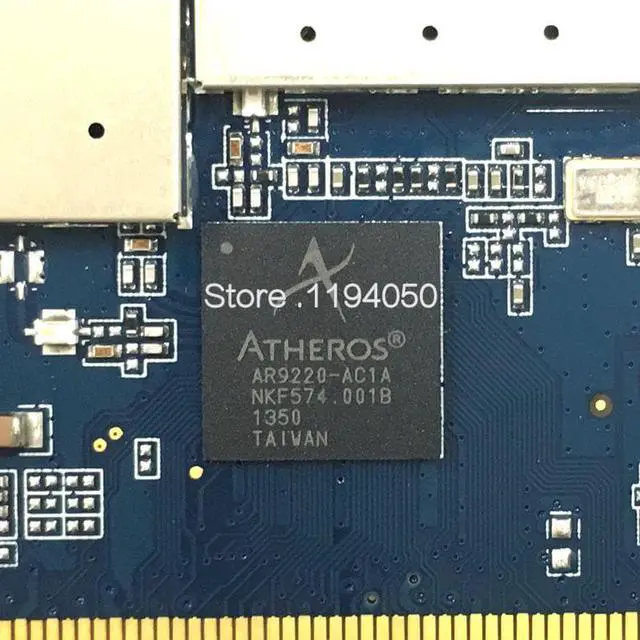

Atheros XSPAN Chipset AR9220 family
5GHz IEEE 802.11n standard, and backward compatible with 802.11a
Maximum 23 dBm output power (per chain) / 26dBm (total)
Built-in ESD protection and ESD / EMP immune threshold: 15 thousand electrons
4.9GHz and 5.9GHz support (optional)
Enhanced noise immunity and sensitivity
Providing 10 times the throughput and nearly twice the range of traditional 802.11a networks
Transmission power control (IEEE802.11h TPC)
Dynamic Frequency Selection (DFS)
Multi-country roaming support (IEEE802.11d global harmonization standard)
2 x MMCX or 2 x U.FL antenna connection variants
Cost-effective and flexible outdoor broadband wireless applications
Specifcations
Chipset
AR9220
Host Interface
PCI Interface v2.3 (Type III-A Mini PCI form factor)
Operating Voltage
3.3VDC
Power Consumption
3.5 Watts
Antenna Connector
2 x U.FL
Frequency Range
5.150 ~ 5.875 GHz
Modulation Technique
OFDM: BPSK, QPSK, 16 QAM, 64QAM
Certifications
CE, FCC, IC
Temperature Range
Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity
Operating:5% to 95% (non-condensing)
Dimensions
59.6 x 51 x 3 mm (H x W x D)
5Ghz
Data Rate
TX
RX
802.11a
6Mbps
26
-97
54Mbps
21
-80
11n HT20
MCS0
26
-97
MCS 7
20
-77
11n HT40
MCS0
24
-92
MCS 7
17
-72
