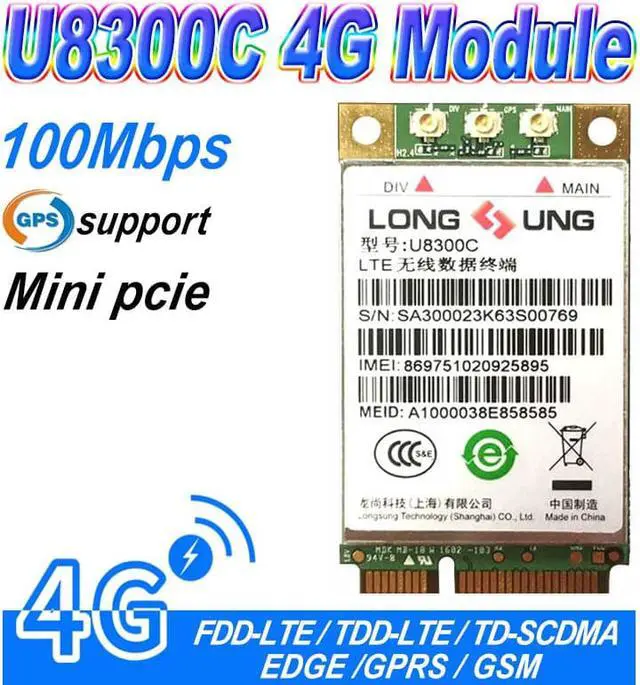

U8300c LTE WCDMA td-scdma 3G 4G mini PCIe support GPS wireless module

Certification:CE,FCC
Origin:Mainland China
Wireless Protocol:3g
Kind:3G-China Unicom WCDMA-HSDPA
Application:Laptop
Model Number:U8300c
Interface Type:PCI Express
Card Type Device:3g card
Type:Wireless

Product description
 Long Shang U8300 wireless module is a wireless terminal for a variety of network systems FDD-LTE / TDD-LTE / TD-SCDMA / EDGE / GPRS / GSM, U8300 module supports a variety of frequency bands:
Tri-Band TDD-LTE: Band 38/39/40;
Single-Band FDD-LTE: Band7;
Tri-Band TD-SCDMA: Band 34/39/40;
Dual-Band EDGE / GPRS / GSM: GSM900 / DCS1800.
Under the FDD-LTE network, the access speed of the U8300 can reach 100 Mbps downstream and 50 Mbps upstream. Under the TDD-LTE network, the U8300 can access downlink speeds of up to 61 Mbps and uplinks up to 18 Mbps. Without LTE network coverage Under the U8300 can also access through TD-SCDMA, the rate of downlink 4.2Mbps and uplink 2.2Mbps, EGDE access rate of up to 237kbps, GPRS access rate up to 85.6kbps.
U8300 provides high-speed data access at the same time, can provide SMS, address book and other functions, can be widely used in mobile broadband access, video surveillance, handheld terminals, automotive equipment and other products.
U8300 uses advanced highly integrated design, the RF, baseband integrated on a PCB to complete the wireless receiver, transmitter, baseband signal processing and audio signal processing functions, the use of double-sided layout, the module structure size: 51.0 × 30.0 × 4.6mm .
U8300 support AT command extensions, users can customize the program.
Advantage
supports a variety of network formats, FDD-LTE / TDD-LTE / TD-SCDMA / EDGE / GPRS / GSM
Broadband wireless communication module with FDD_LTE: 100Mbps (DL) / 50Mbps (UL), TDD_LTE: 61Mbps DL and 18Mbps UL, TD-SCDMA: 4.2Mbps DL and 2.2Mbps UL.
Mini PCI-E standard connector for easy commissioning and after-sale maintenance
support GPS
