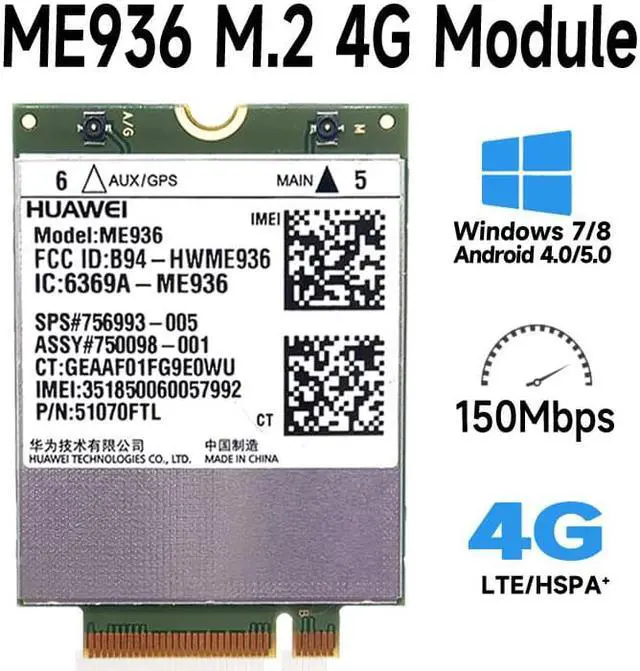

HUAWEI ME936 4 G LTE module NGFF WCDMA quad-band EDGE / GPRS / GSM Penta-band DC-HSPA + / HSP WWAN CARD

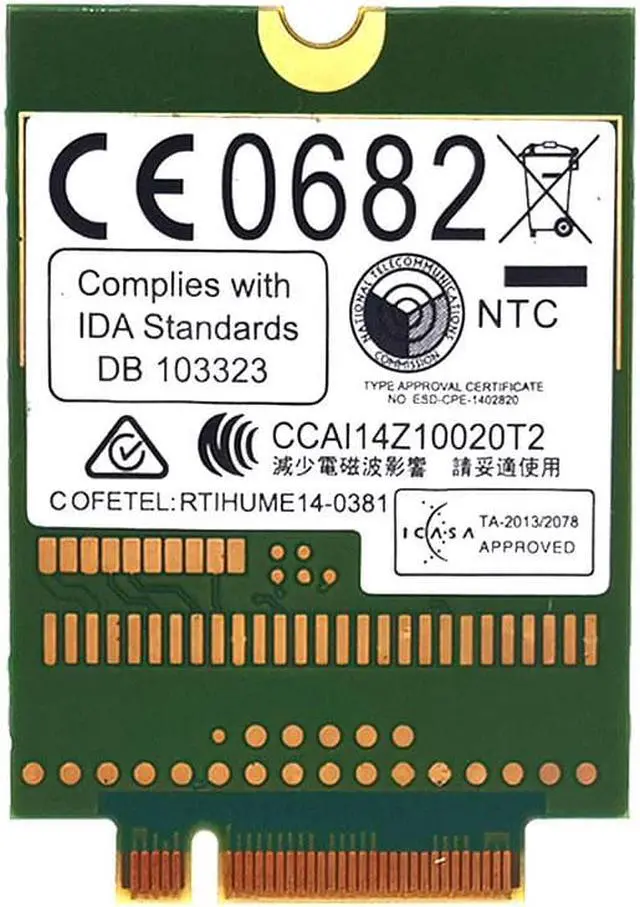

Certification:CE
Origin:Mainland China
Wireless Protocol:4G LET
Kind:Internal
Application:Laptop
Model Number:ME936
Interface Type:USB
Card Type Device:4G Card
Type:Wireless

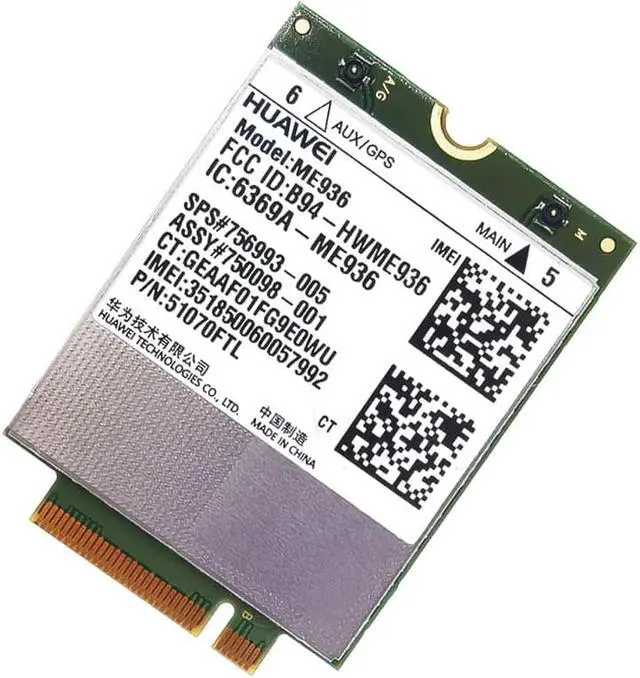

HUAWEI ME936 FDD LTE M.2 Module
Feature Description
Physical Features
Dimensions (L × W × H): 42 mm × 30 mm × 2.3 mm
Weight: about 6 g
Operating Bands
LTE: BI/B2/B3/B4/B5/B7/B8/B13/B17/B20
WCDMA/HSDPA/HSUPA/HSPA+: 850 MHz/900 MHz/1700 MHz
(AWS)/1900 MHz/2100 MHz
GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
GPS/GLONASS: L1
Operating Temperature
Normal operating temperature: 10°C to +55°C
Extended operating temperature[1]: 20°C to +70°C
Storage Temperature 40°C to +85°C
Moisture RH5% to RH95%
Power Voltage 3.135 V to 4.4 V (3.3 V is typical)
Interface
(75-pin Gold Finger)
USIM Hot Swap Detection
USB 2.0 (high speed)
Power_On_Off pin
RESET# pin
LED# pin
W_DISABLE# pin
GPS_DISABLE# pin
Tunable Antenna Control (4 GPIOs)
Wake_On_WWAN# pin
BodySAR_N pin
Power supply (5 pins)
Antenna Interface
MAIN and AUX (supports Diversity and GPS simultaneously)
MM4829-2702RA4 by MURATA or other equivalent parts
SMS message alert
Management of SMS: read SMS, write SMS, send SMS, delete
SMS and SMS list
Supporting MO and MT
Point-to-point
Data Services GPRS: UL 85.6 kbps/DL 107 kbps
EDGE: UL 236.8 kbps/DL 296 kbps
WCDMA CS: UL 64 kbps/DL 64 kbps
WCDMA PS: UL 384 kbps/DL 384 kbps
HSPA+: UL 5.76 Mbps/DL 21.6 Mbps
LTE FDD: UL 50 Mbps/DL:100 Mbps @20M BW cat3
Operating System
Windows 7/8/8.1/Android 4.0 or later/Chrome OS
