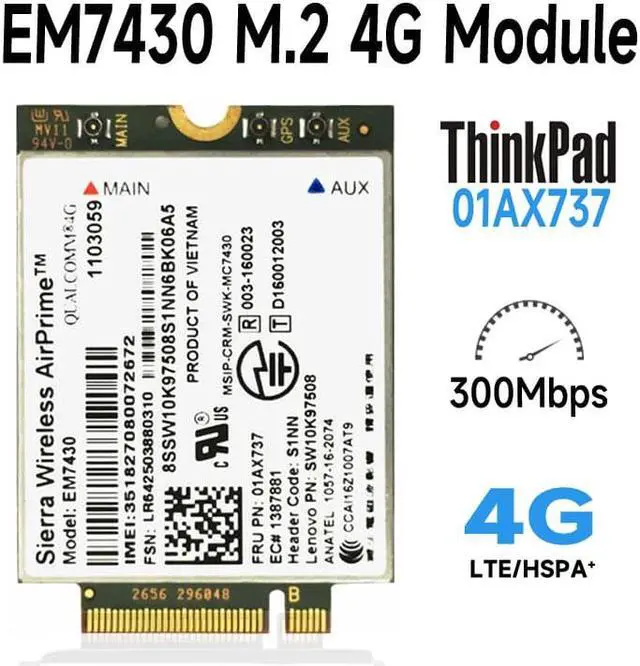

Sierra EM7430 FDD/TDD-LTE 4G Module for Thinkpad X270 X1 Carbon Fiber 5th Generation (20HQ, 20HR) X1 YOGA X1 Tablet Gen 2

Origin:Mainland China
Kind:Internal
Certification:CE,FCC
Type:Wireless
Wireless Protocol:DFF-LTE/TFF-LTE
Application:Laptop
Model Number:EM7430
Interface Type:NGFF/M.2
Card Type Device:4G Card

Sierra EM7430 FDD / TDD LTE 4G WCDMA GNSS for Lenovo notebooks
ThinkPad X270 (machine type: 20K5, 20K6)
ThinkPad X1 Tablet Gen 2 (machine type: 20JB, 20JC)
ThinkPad X1 Yoga (machine type: 20JD, 20JE, 20JF, 20JG)
ThinkPad X1 Carbon (20HQ, 20HR)

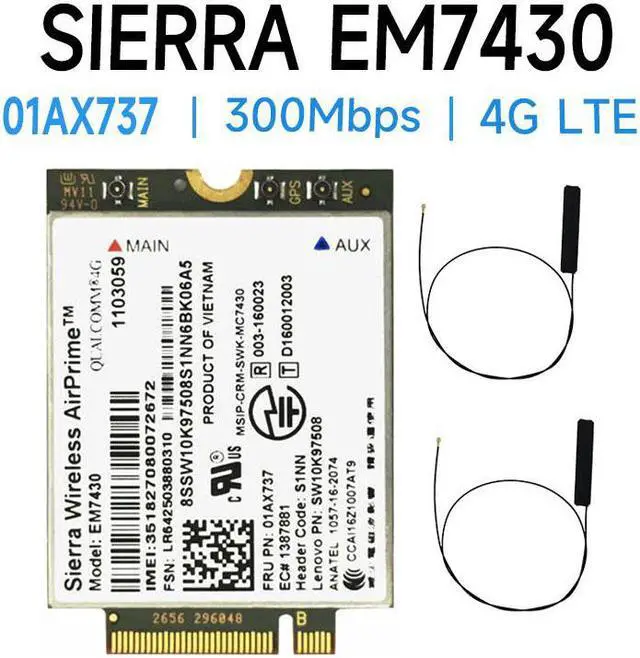

Package: 1X 4G card
2 PCS NGFF IPEX 4 antenna
Sierra Wireless Airprime EM7430 Specifications:
*Category: 4G module
*Manufacturer: Sierra Wireless
* Chipset: Qualcomm MDM9230
* Shape: PCIe M.2
* Pin: 52 pins
*band
- LTE FDD: Bands B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
-UMTS / HSPA +: B1, B5, B6, B8, B9, B19
-TD-SCDMA B39
*Technology: UMTS, HSDPA, HSPA +, LTE
*Maximum download speed: 300 Mbps
*Maximum upload speed: 50 Mbps
* Temperature: -10oC to 55oC
* Certification / Supervision: Program: JRF / JPA, NCC
* Operator approval: Plan: docomo, Telstra
* Connector: Aux / GNSS, GNSS
* Satellite system: GPS, Glonass, Beidou, Galileo
* Mode: Independent, SUPL 2.0, XTRA 3.0
*Control options: API, AT command
*Voltage: 1.8V
*Active antenna control: 4 pins
* Dynamic power control: 1 pin
* Interface: "USB 3.0, USB 2.0 High Speed"
* SIM interface: 2 x 1.8v or 3v
*Audio: PCM / I2S **
Other interfaces: primary radio disabled, GNSS disabled, flash LED output, WAN wakeup, reset
*Size: 42 x 30 x 2.3 mm
