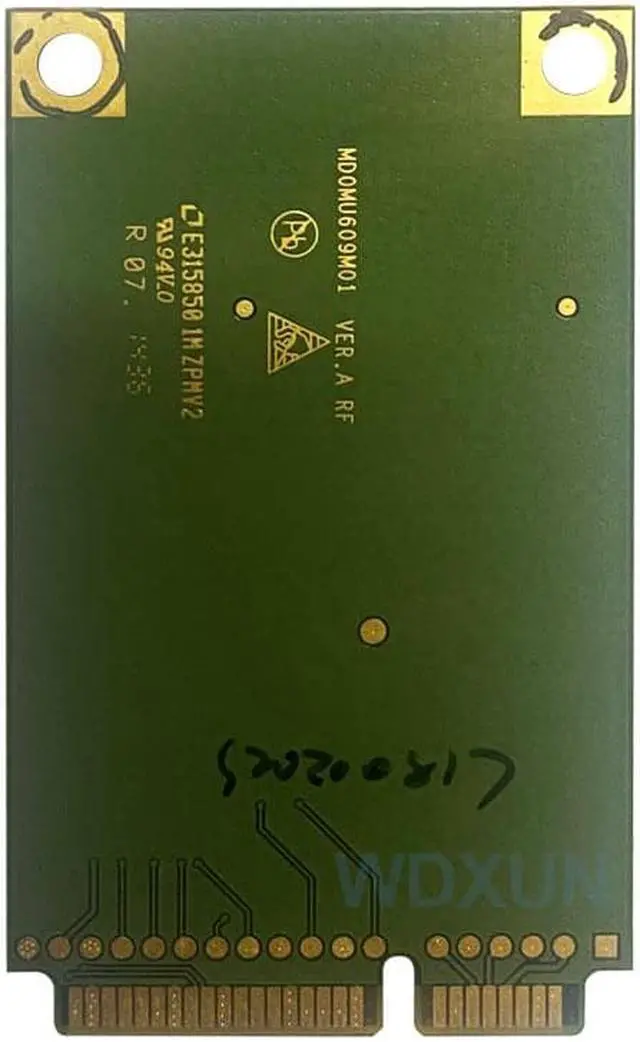

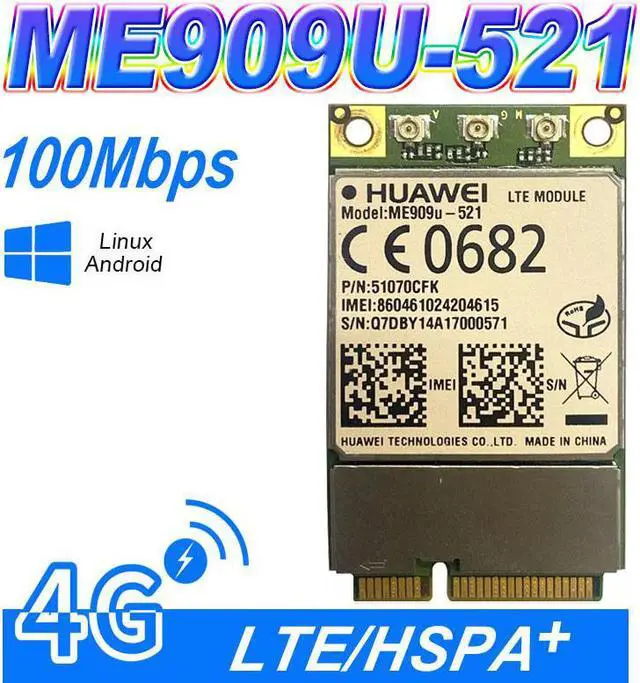

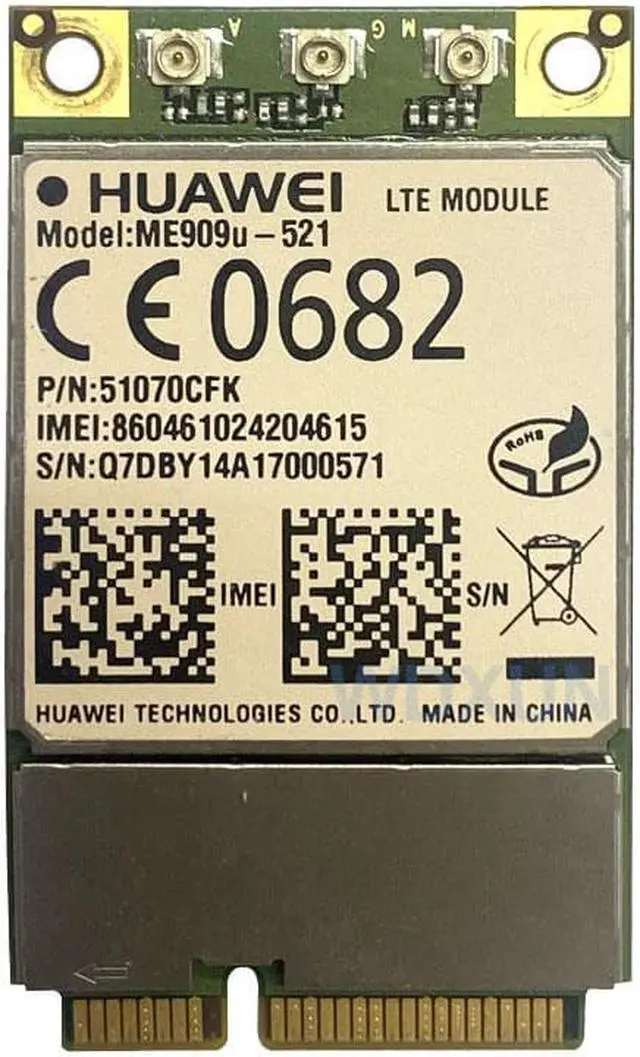

Huawei ME909u-521 LTE FDD/DC-HSPA+/UMTS/EDGE Mini-PCIe 3G/4G Wireless Module

Certification:CE,FCC
Origin:Mainland China
Wireless Protocol:4G
Kind:Internal
Application:Laptop
Model Number:ME909U-521
Package:Yes
Interface Type:Mini PCI-Express
Type:Wireless
Transmission Rate:10/100Mbps

1.1PCS  ME909u-521  Hua Wei  FDD LTE Mini pcie 4G Wireless Communciation Moudle 100% &3G card Support GPS Voice Message
Physical Dimensions
Dimensions (L × W × H): 51 mm × 30.4 mm × 3.35 mm
Weight: about 12 g
Operating
Temperature 20°C to +60°C
Storage
Temperature 40°C to +85°C
Power
Voltage DC 3.0 V3.6 V (typical value is 3.3 V)
Application
Interface
(52-pin Mini
PCIe interface One standard USIM
(Universal Subscriber Identity Module) card
(Class B and Class C)
Audio interface: PCM interface
USB 2.0 (High Speed)
RESIN_N: Reset module
WAKE#: Wake up signal
W_DISABLE# Signal (the software version is planning.)
LED_WWAN#: Active-low LED signal indicating the state of the
module (the software is under development)
Antenna
connector
WWAN MAIN antenna connector x1
WWAN AUX antenna connector x1
GPS antenna connector x1
2. Application:
ME909u-521 Mini PCIe is a variant of ME909u-521 with standard Mini PCIe form factor. It is high-quality designed LTE module which especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile , industrial router, safety monitor and industrial PDAs.
ME909u-521 Mini PCIe supports 100Mbps downlink data rate, includes enhanced features like FOTA, USSD, IPV6/IPV4 and Huawei enhanced AT commands.
All Huawei modules comply with the RoHS directive and Regional certification.
If you need datasheet for this item.Please also just feel to contacet us.
