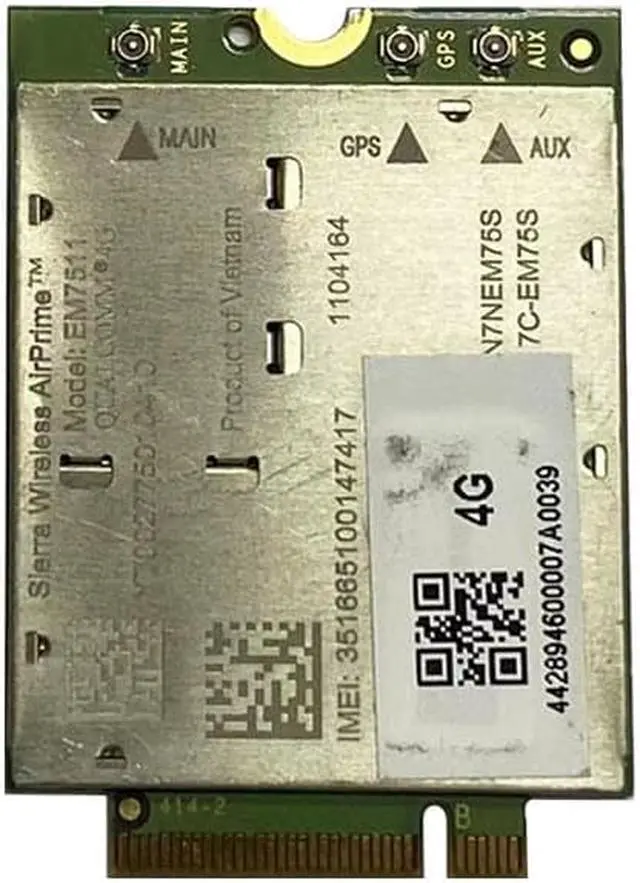

EM7511 M.2 LTE 4G CARD 4G Module FDD LTE TDD LTE Cat12 for laptop

Type:Wireless
Certification:CE
Style:Internal
Origin:Mainland China
wirless Modem Type:LTE
Model Number:EM7511
Interface Type:NGFF

EM7511 LTE-A Module Technical Specifications:
* Form factore: PCI Express M.2
* Category: LTE Cat.12
* Supported LTE Frequency bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42*, B43*, B46*, B48*, B66
* Supported 3G Frequency bands: B1, B2, B4, B5, B6, B8, B9, B19
* Date Rates: peak download rate up to 600Mbps/ peak upload rate up to 150Mbps
* Satellite Systems: Galileo, Glonass, GPS, Beidou
* Interfaces: USB 3.0, USB 2.0 High Speed, SIM interface x 1 (1.8V/3V)
* Control Options: APIs, AT Commands
* Antenna: Diversity, MIMO, GNSS Bias
* Antenna Connectors: Main, Aux/GNSS, GNSS
* Temperature Range: -30°C / +70°C '-40°C / +85°C (TBC)
* Firmware: Pre-certified firmware, Secure boot
* System Drivers:  Windows 10
* Planned Carrier AT&T, Verizon
* Regulatory: FCC, GCF, IC, NCC, PTCRB
* Cloud services: Unlimited FOTA upgrades, Connectivity Management option, Device Management option, Application Enablement option
* Connectivity: Optional Ready-to-Connect Sierra Wireless embedded SIM
* Dimensions: 42 x 30 x 2.3mm
Note:this module not for HP and lenovo laptop .
