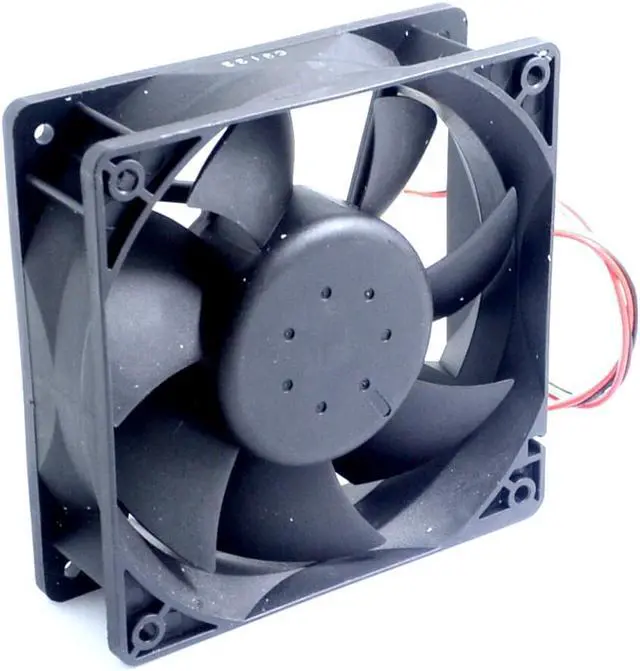

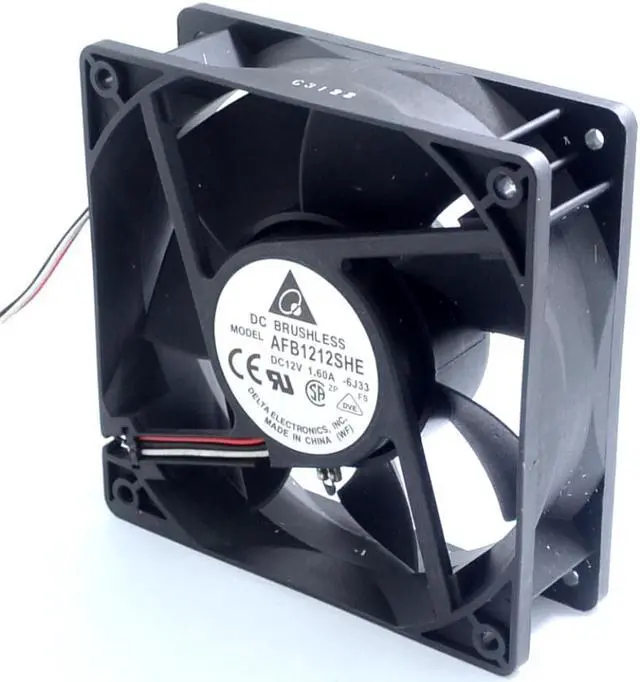

AFB1212SHE 1.60A 12V quiet double ball speed automatic temperature control cooling fan wind capacity for delta 120*120*25MM

Type:Server Fan
Model Number:AFB1212SHE
Origin:Mainland China
is_customized:Yes

Parameters:
Model: AFB1212SHE
Bearing: High precision double ball bearing
Voltage: DC 12V
Current: 1.60A nominal value
Speed: The maximum speed at room temperature is 2100RPM, the maximum speed is 4000RPM
Wind energy: the room temperature is 45CFM, the maximum is 154.5CFM in the whole process
Noise: 23dB-A at room temperature, 45.4dB-A at full speed
Blade: plastic injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation: rotate counterclockwise when viewed from the fan
Working temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Plus or minus 15% of rated power: power range
Insulation resistance: more than 500 megohms
Withstand voltage: leakage current 0.5mA 500V / 1 minute
Working life: 80,000 hours at 25°C ambient temperature
Scope of application: Precision 390 workstation CPU cooling
The fan supports automatic temperature control, and it is ready to adjust the fan speed according to temperature changes. The actual test is about 30° at room temperature, the speed is 2100RPM, and the noise is 23dB A. Very quiet 12,038 fans are rare.
At an elevated temperature, the fan speed is proportional to the temperature increase, reaching about 65°, reaching about 3800 rpm, which is close to full speed, and the wind is very strong. The temperature inside the case is usually about 45°.
It can be said to be a quiet and strong wind fan. When it is quiet, the temperature in the case is low, and when the high temperature in the case when he is winding, the heat is released and it is quiet.
