and BFB1012H-4C1L 97*97*33mm 9733 97mm 12V 1.2a server dual ball bearing cooling fan for Delta
- and BFB1012H-4C1L 97*97*33mm 9733 97mm 12V 1.2a server dual ball bearing cooling fan for Delta
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type:Server Fan
Model Number:BFB1012H
Origin:Mainland China
Parameters:

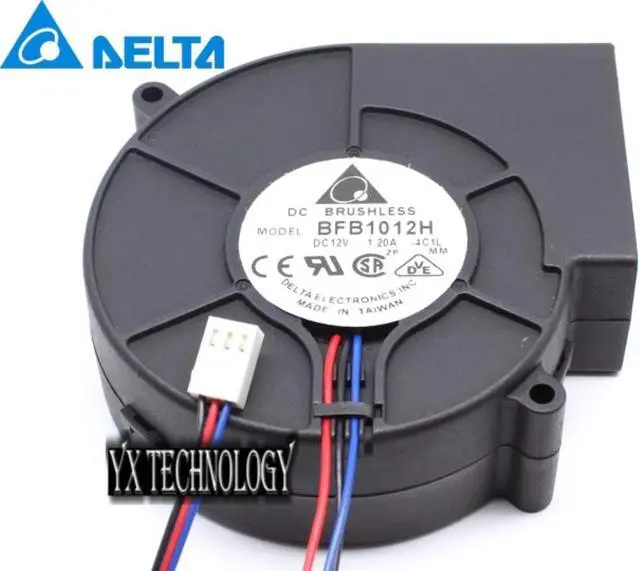

Model : BFB1012H

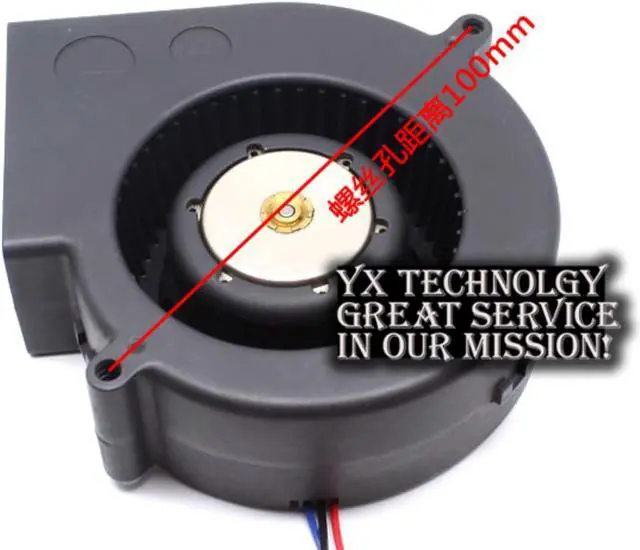

Dimensions : 97 × 97 × 33MM
Current: Nominal 1.2A; rated 0.8A
Wind : 25.43CFM
Power: Nominal 14.4W; rated 9.6W
Rpm : 3600RPM
Pressure : 1.0IN H2O
Noise: 52 dba
Fan Frame : plastic injection molding , PBT + 30% glass fiber + VO grade flame retardant
Blade: plastic injection molding , PBT + 30% glass fiber + VO grade flame retardant
Fan rotation : counterclockwise as viewed from the blades
Operating temperature : -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Bearings: precision ball bearings
Power range: plus or minus 15 % of rated power
Insulation resistance : more than 500 megohms
Withstanding Voltage: Department of leakage current 0.5mA 500V / 1 min
Working life: ambient temperature of 25 degrees 80,000 hours
Interface: 3-pin speed cable, you can connect 3pin interface , or for big 4D interface according to customer requirements
Model Number:BFB1012H
Origin:Mainland China
Parameters:
Model : BFB1012H
Dimensions : 97 × 97 × 33MM
Current: Nominal 1.2A; rated 0.8A
Wind : 25.43CFM
Power: Nominal 14.4W; rated 9.6W
Rpm : 3600RPM
Pressure : 1.0IN H2O
Noise: 52 dba
Fan Frame : plastic injection molding , PBT + 30% glass fiber + VO grade flame retardant
Blade: plastic injection molding , PBT + 30% glass fiber + VO grade flame retardant
Fan rotation : counterclockwise as viewed from the blades
Operating temperature : -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Bearings: precision ball bearings
Power range: plus or minus 15 % of rated power
Insulation resistance : more than 500 megohms
Withstanding Voltage: Department of leakage current 0.5mA 500V / 1 min
Working life: ambient temperature of 25 degrees 80,000 hours
Interface: 3-pin speed cable, you can connect 3pin interface , or for big 4D interface according to customer requirements
