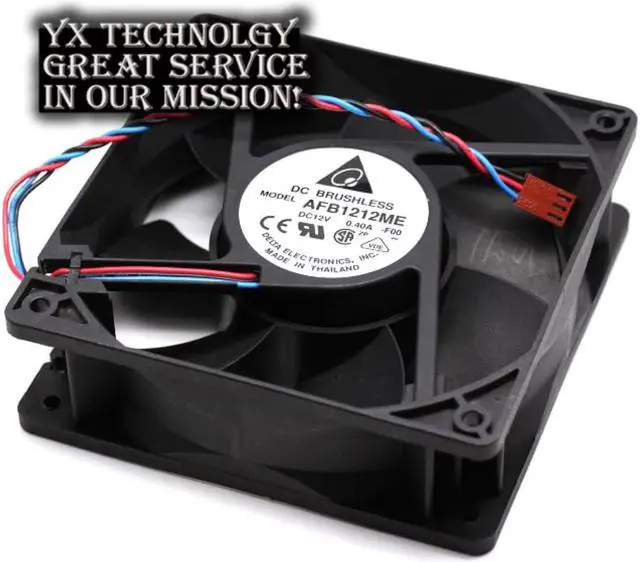

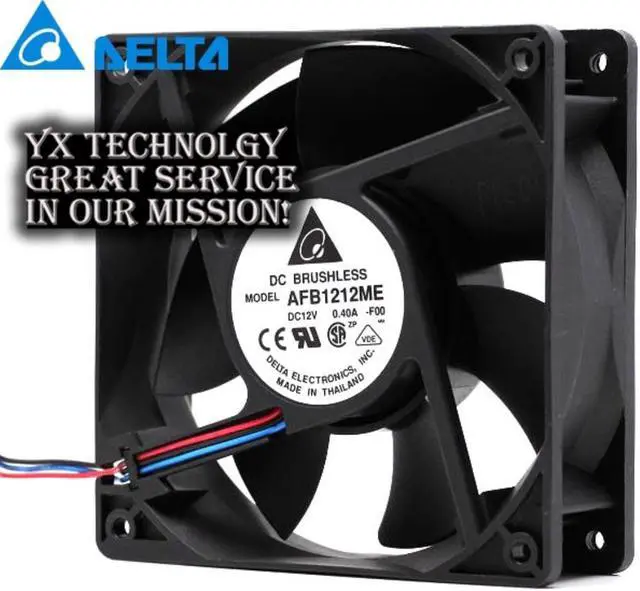

For Delta 120*120*38MM 120mm AFB1212ME-FOO 12038 0.4A dual ball bearing mute chassis cooling fan
- For Delta 120*120*38MM 120mm AFB1212ME-FOO 12038 0.4A dual ball bearing mute chassis cooling fan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type:IPC Fan
Model Number:AFB1212ME-FOO
Origin:Mainland China
Noise:38 dBA
Fan Size:12 cm
Parameters:
Model: AFB1224ME
Size: 120*120*38MM
Voltage: DC12V
Current: 0.40A
Air volume: 91.95CFM
Power: 3.24W
Rpm: 2500RPM
Noise: 38 dBA
Fan frame: injection molding, glass fiber +VO PBT+30% grade flame retardant
Blades: injection molding, glass fiber +VO PBT+30% grade flame retardant
Operating temperature:-10 c to + 70 degrees Celsius
Storage temperature:-40 degrees c to + 70 degrees Celsius
Bearings: high-precision ball bearings
Power range: rated power supply plus or minus 15%
Insulation resistance: more than 500 mohm
Withstanding voltage: foreign exchange leakage current 0.5mA 500V/1 minutes
Operating life time: when the ambient temperature is 25 degree 80,000 hours
Interfaces: Board 3P interface or the 2P interface and 4D interface
Model Number:AFB1212ME-FOO
Origin:Mainland China
Noise:38 dBA
Fan Size:12 cm
Parameters:
Model: AFB1224ME
Size: 120*120*38MM
Voltage: DC12V
Current: 0.40A
Air volume: 91.95CFM
Power: 3.24W
Rpm: 2500RPM
Noise: 38 dBA
Fan frame: injection molding, glass fiber +VO PBT+30% grade flame retardant
Blades: injection molding, glass fiber +VO PBT+30% grade flame retardant
Operating temperature:-10 c to + 70 degrees Celsius
Storage temperature:-40 degrees c to + 70 degrees Celsius
Bearings: high-precision ball bearings
Power range: rated power supply plus or minus 15%
Insulation resistance: more than 500 mohm
Withstanding voltage: foreign exchange leakage current 0.5mA 500V/1 minutes
Operating life time: when the ambient temperature is 25 degree 80,000 hours
Interfaces: Board 3P interface or the 2P interface and 4D interface
