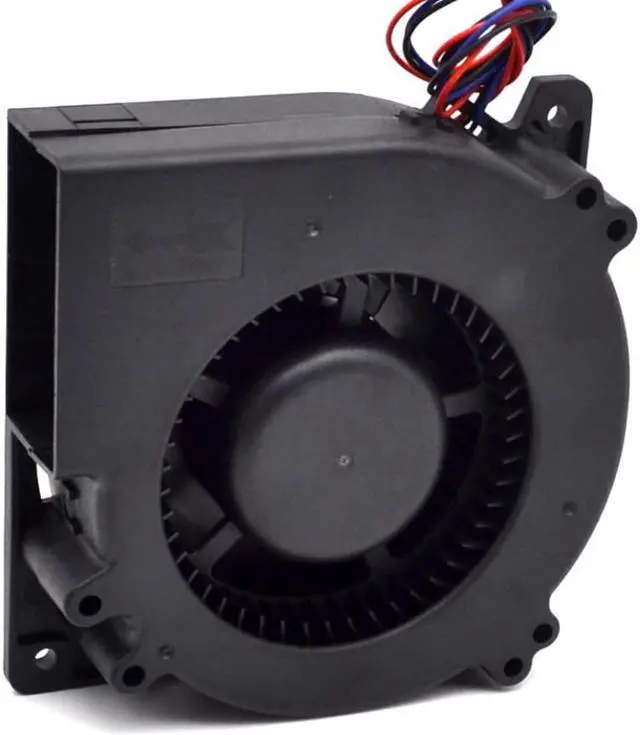

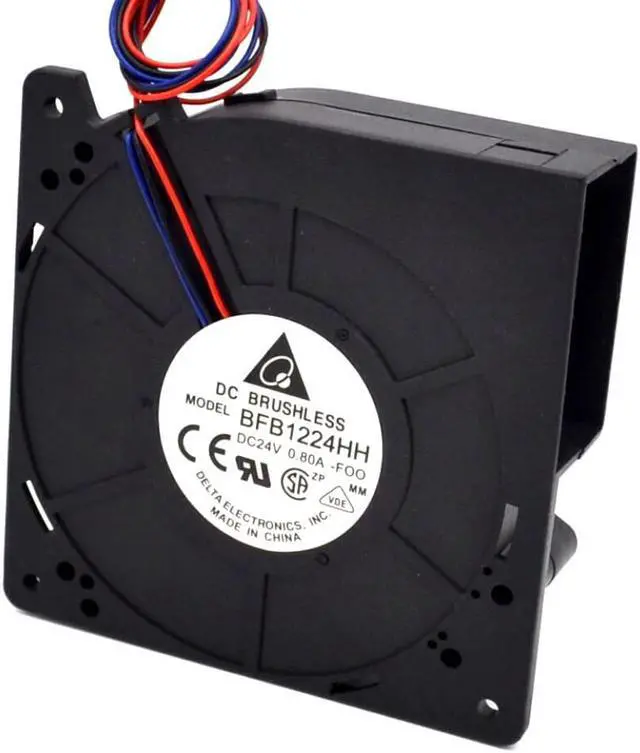

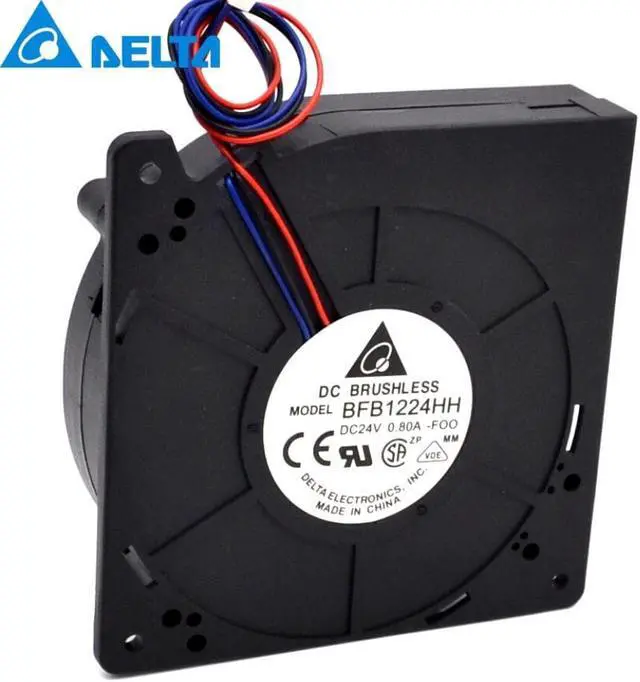

BFB1224HH 12cm 120mm 24V 0.8A 12032 turbo blower fan for DELTA 120*120*32mm
- BFB1224HH 12cm 120mm 24V 0.8A 12032 turbo blower fan for DELTA 120*120*32mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type:Server Fan
Model Number:BFB1224HH
Origin:Mainland China
Parameters:
Model: BFB1224HH-FOO
Size: 120 * 120 * 32mm
Screw spacing: 105 mm
Bearing: High precision double ball bearing
Voltage: 24 volts
Starting voltage: 16 V
Operating voltage: 7.0 to 27.6 V
Current: 0.8 A
Power: 19.2 watts
Speed: 2800 RPM + 2800 RPM
Noise: 54 decibels
Air volume: 32.49 CFM
Cable length: 30 cm
Connection mode: 3-wire 3p interface supports speed
Fan frame: injection molding, flame retardant PBT + 30% glass fiber VO grade
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Working temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Supply scope: 15% of positive and negative rated power
Insulation resistance: greater than 500 ohms
Withstand voltage: collect leakage current of 0.5 mA 500 v / 1 minute
Working life: 80,000 hours at 25 degrees ambient temperature
Scope of application: industrial equipment such as frequency converters
Net weight: 230 grams
Model Number:BFB1224HH
Origin:Mainland China
Parameters:
Model: BFB1224HH-FOO
Size: 120 * 120 * 32mm
Screw spacing: 105 mm
Bearing: High precision double ball bearing
Voltage: 24 volts
Starting voltage: 16 V
Operating voltage: 7.0 to 27.6 V
Current: 0.8 A
Power: 19.2 watts
Speed: 2800 RPM + 2800 RPM
Noise: 54 decibels
Air volume: 32.49 CFM
Cable length: 30 cm
Connection mode: 3-wire 3p interface supports speed
Fan frame: injection molding, flame retardant PBT + 30% glass fiber VO grade
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Working temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Supply scope: 15% of positive and negative rated power
Insulation resistance: greater than 500 ohms
Withstand voltage: collect leakage current of 0.5 mA 500 v / 1 minute
Working life: 80,000 hours at 25 degrees ambient temperature
Scope of application: industrial equipment such as frequency converters
Net weight: 230 grams
