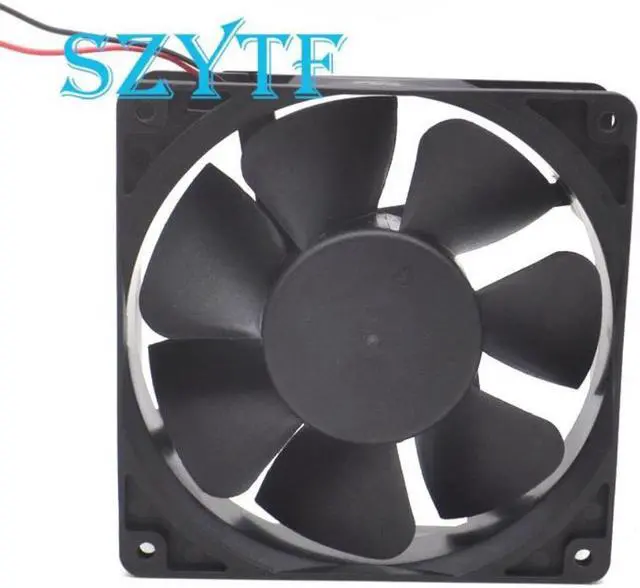

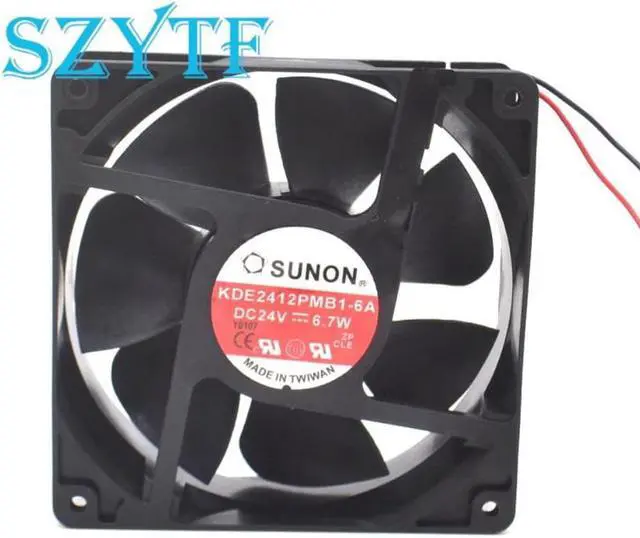

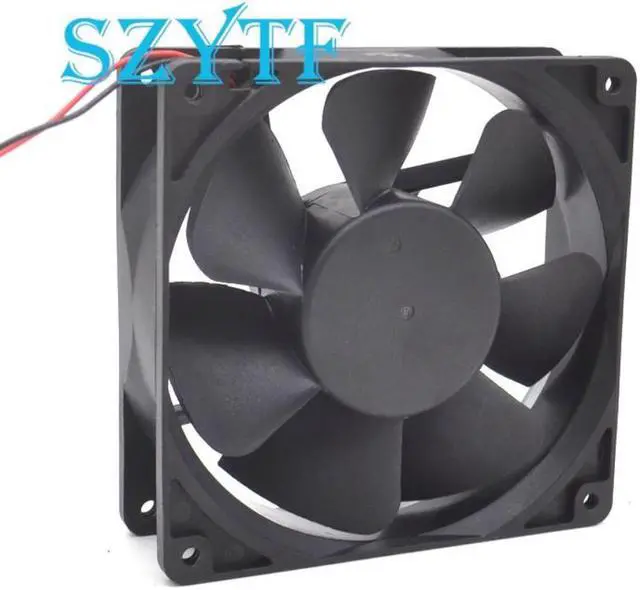

KDE2412PMB1-6A 12038 DC 24V 6.7W 120X120X38MM 120mm server cooling fan for SUNON
Limited time offer, ends 07/07 By xiatiandianzi
- KDE2412PMB1-6A 12038 DC 24V 6.7W 120X120X38MM 120mm server cooling fan for SUNON
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type:Server Fan
Model Number:KDE2412PMB1-6A
Origin:Mainland China
Parameters:
Model: KDE2412PMB1-6A
Size: 120 * 120 * 38MM
Pitch: 105mm
Bearing: High precision double ball bearing
Voltage: 24V
Starting voltage: 16V
Working voltage: 20.4-27 .6 V
Current: 0.28A
Power: 6.7 watts
Speed: 3100RPM±250RPM
Noise: 42dB A
Airflow: 108CFM
Fan frame: injection molding, PBT + 30% glass fiber VO grade flame retardant
Blade: plastic injection molding, PBT + 30% glass fiber + VO grade flame retardant
Working temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power supply range: ±15% of rated power
Insulation resistance: more than 500 megohms
Withstand voltage: Leakage current 0.5mA 500V / 1
Working life: 80,000 hours at 25°C ambient temperature
Weight: 326 grams
Model Number:KDE2412PMB1-6A
Origin:Mainland China
Parameters:
Model: KDE2412PMB1-6A
Size: 120 * 120 * 38MM
Pitch: 105mm
Bearing: High precision double ball bearing
Voltage: 24V
Starting voltage: 16V
Working voltage: 20.4-27 .6 V
Current: 0.28A
Power: 6.7 watts
Speed: 3100RPM±250RPM
Noise: 42dB A
Airflow: 108CFM
Fan frame: injection molding, PBT + 30% glass fiber VO grade flame retardant
Blade: plastic injection molding, PBT + 30% glass fiber + VO grade flame retardant
Working temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power supply range: ±15% of rated power
Insulation resistance: more than 500 megohms
Withstand voltage: Leakage current 0.5mA 500V / 1
Working life: 80,000 hours at 25°C ambient temperature
Weight: 326 grams
