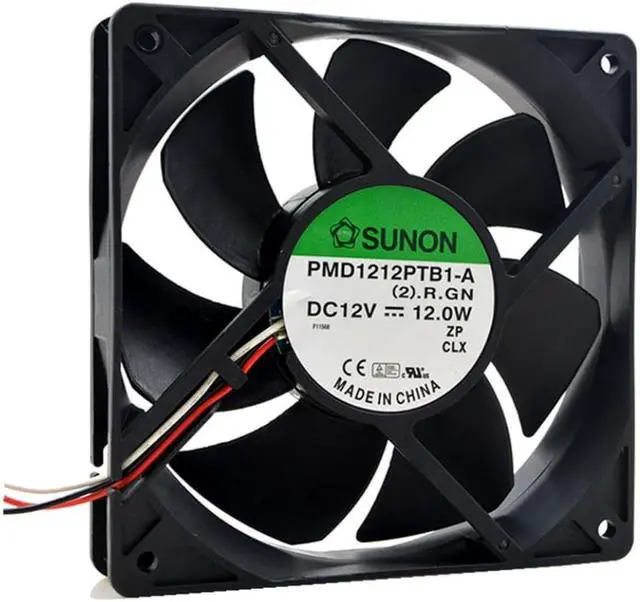

Main image of 1pcs PMD1212PTB1-A (2).F.GN 12025 120mm 120*120*25mm 12V 12.0W 3pin 150CFM Case cooling Fan for SUNON

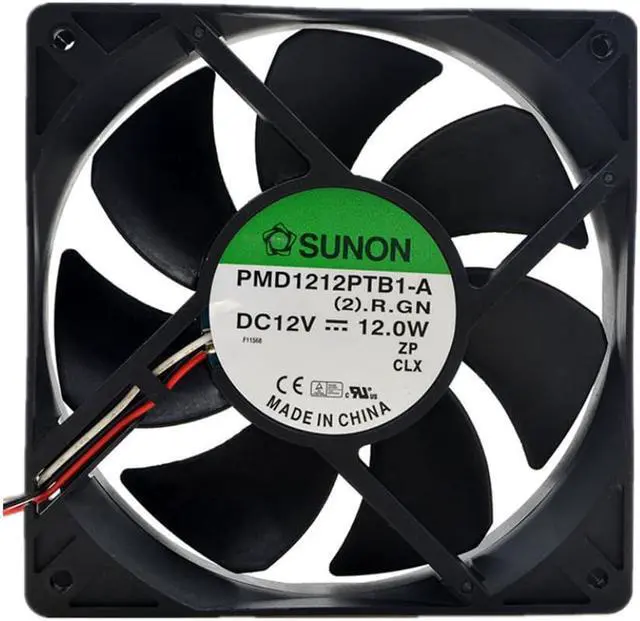

Alt view image 2 of 3 - 1pcs PMD1212PTB1-A (2).F.GN 12025 120mm 120*120*25mm 12V 12.0W 3pin 150CFM Case cooling Fan for SUNON

Alt view image 3 of 3 - 1pcs PMD1212PTB1-A (2).F.GN 12025 120mm 120*120*25mm 12V 12.0W 3pin 150CFM Case cooling Fan for SUNON

Shop All Graviton Products | Visit Xiatiandianzi Store

1pcs PMD1212PTB1-A (2).F.GN 12025 120mm 12012025mm 12V 12.0W 3pin 150CFM Case cooling Fan for SUNON

1pcs PMD1212PTB1-A (2).F.GN 12025 120mm 120*120*25mm 12V 12.0W 3pin 150CFM Case cooling Fan for SUNON

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Type:Server Fan
Model Number:PMD1212PTB1-A (2).F.GN
Origin:Mainland China
Power Interface:3PIN

Parameters:
Model: PMD1212PTB1-A (2).F.GN
Dimensions: 120mm x 120mm x 25mm
Rated voltage: 12 VDC
Rated current: 1.0Amp
Rated input power: 12.0Watt
Fan speed: 4500R.P.M. (Revolutions per minute)
Maximum airflow: 150CFM (cubic feet per minute)
Noise level: 54dB-A
Maximum air pressure: 15.70mmH2O
Bearing type: ball
Termination: 12 inches (3 wires)
Power connector: 3pin
Function/Feature: Speed sensor (overspeed output)
RoHS status: RoHS compliant
Unit weight: 0.20 pounds
