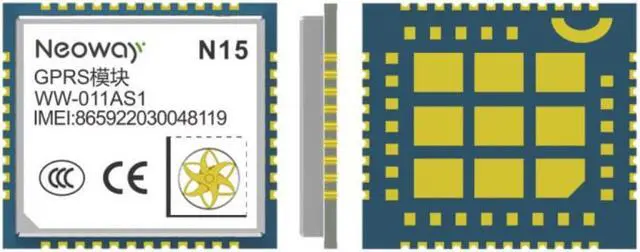

N15 4-band GSM / GPRS module GSM850 EGSM900 DCS1800 PCS1900 LGA + LCC package

Model Number:N15

N15
is a 4-band GSM / GPRS industrial-grade wireless communication module with a working frequency band of GSM850, EGSM900, DCS1800, PCS1900.
N15
has a total of 77 pins, and the pad has the LGA + LCC package. The module size is only 17.6mm * 15.7mm * 2.3mm. It has industrial-grade high performance and is suitable for the development of wireless meter reading terminals, walkie-talkies, and handheld POS. Networked communication equipment.
Specifications
Physical Property:
Size:(17.6±0.15)mm*(15.7±0.15)mm*(2.3±0.2)mm
Package:LGA+LCC
Weight:about 1.5g
Temperature Range:
Normal working temperature:-35~+75
Extended working temperature:
-40~+85
Storage temperature:
-40
~+125
Operating voltage:
VBAT:3.4v~4.2v, TYP:3.8v
Electric current:
Hibernation:2.5mA
Standby mode:10mA
Operating current:Max 2.0A
RAM:
RAM:32Mb
ROM:32Mb
Frequency band:
GSM850/EGSM900/DCS1800/PCS1900
Sensitivity
:-108dBm
GPRS data characteristics:
Support GPRS Class 12
GPRS:Max 85.6Kbps(DL) Max 85.6Kbps(UL)
Encoding format:CS1/CS2/CS3/CS4
Embedded TCP/IP to support multi-link
Support server and client mode
Power grade:
GSM800/EGSM900:+33dBm(Power Class 4)
DCS1800/PCS1900:+30dBm(Power Class 1)
Application interface
:2G antenna, 500characteristic impedance
Master Processor
: Group 1 UART port, baud rate adaptive, support from 9600bit/s to 115200bit/s baud rate
Antenna characteristics
:Group 1 SIM interface, adaptive 1.8v/3v
Operating temperature:
Group 1 Built-in eSIM(non-standard)
AT command:
3GPP Release 13/Square Extension Directive
N15 *1pcs
