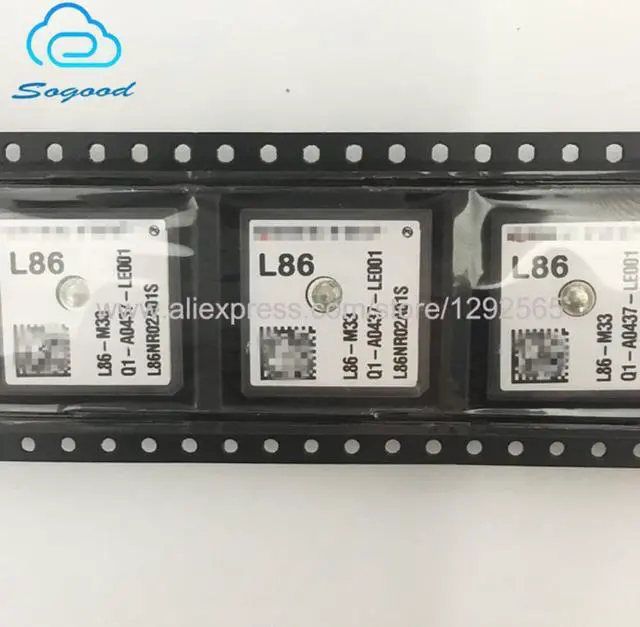

L86 L86-M33 GPS POT (Patch on Top) module GNSS Antenna MTK3333 Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS

Origin:Mainland China
Model Number:L86
Package:LCC
Promise 100% &:No fake
Embedded patch antenna:Support GPS, GLONASS, Galileo and QZSS
Whole part number:L86-M33

L86 is an ultra-compact GNSS POT (Patch on Top) module with an embedded 18.4mm × 18.4mm × 4.0mm patch antenna and utilizes the MediaTek generation GNSS chipset MT3333 that achieves the perfect performance. Designed to be compatible with Quectel GPS L80 module in the compact and unified form factor, it provides a flexible and scalable platform for migrating from GPS to GNSS. This space-saving design makes L86 a perfect module for miniature devices. Adopting LCC package and integrating patch antenna, L86 has exceptional performance both in acquisition and tracking.
Combining advanced AGPS called EASY (Embedded Assist System) and proven AlwaysLocate technology, L86 achieves the highest performance and fully meets the industrial standard. EASY technology allows L86 to calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L86 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate technology, L86 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.
L86 supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process.
Due to its compact design, high precision and sensitivity, L86 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA. It is especially suitable for special applications, like GPS mouse and OBD.
Key Benefits

Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS

Embedded patch antenna: 18.4mm × 18.4mm × 4.0mm

Extremely compact footprint: 16.0mm × 16.0mm × 6.45mm

Automatic antenna switching function

Support short circuit protection and antenna detection

Built-in LNA for better sensitivity

EASY, an advanced AGPS technology without external memory

Ultra low power consumption in tracking mode, 26mA

AlwaysLocate, an intelligent controller of periodic mode

LOCUS, an embedded logger function without the need of host and external flash

High sensitivity: -167dBm @Tracking, -149dBm @Acquisition

99 acquisition channels, 33 tracking channels

Balloon mode, for high altitude up to 80km

Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

Great anti-jamming performance due to multi-tone active interference canceller

PPS VS. NMEA can be used for time service

Support SDK command developed by Quectel
We can supply the all series of Quectel GNSS Module,just check in our store if you need other model.
L86 *1pcs
